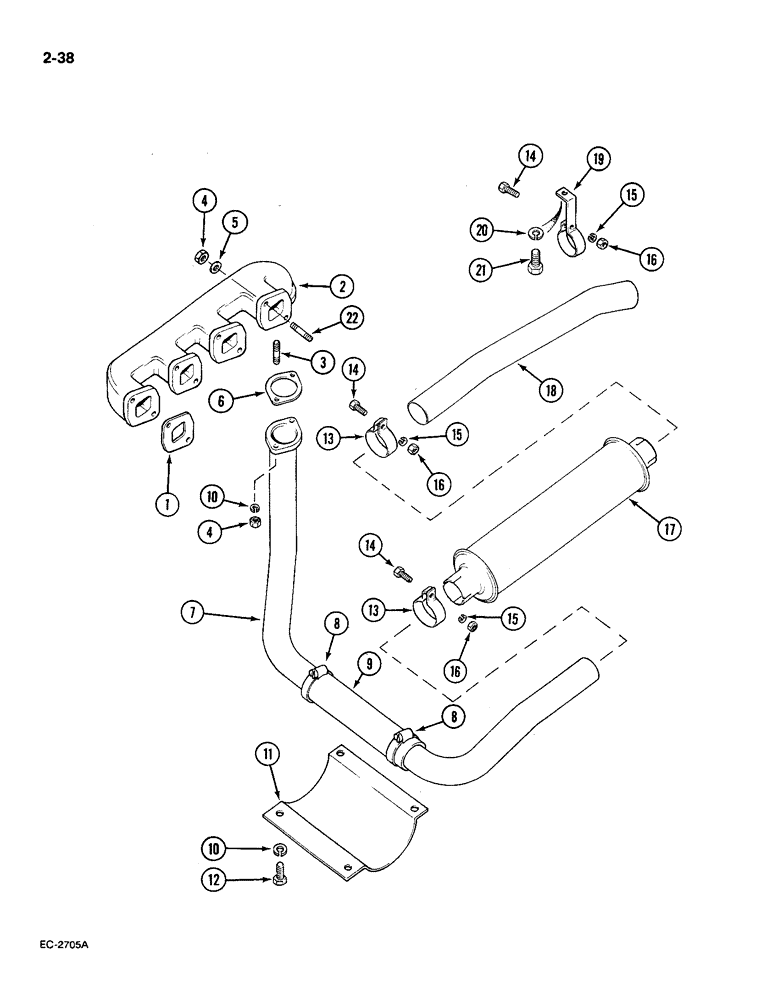

Запчасти Case IH 585 (2-38) - EXHAUST AND MANIFOLD, UNDERSLUNG, PRIOR TO P.I.N. 18001 (02) - ENGINE

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold

4шт.

2

3055276R12

MANIFOLD ASSY

MANIFOLD exhaust, Includes: Ref. 3

1шт.

3

3055663R1

STUD

exhaust manifold, 3/8 NF x 3/8 NC x 38 mm

2шт.

4

103026

NUT,3/8"-24, G5

10шт.

5

20285H

WASHER

plain, 0.406 x 0.75 x 0.105 inch

8шт.

6

401486R1

MANIFOLD GASKET

exhaust manifold pipe

1шт.

7

401485R12

PIPE ASSY.

PIPE exhaust manifold

1шт.

7

66287C91

PIPE

exhaust manifold (low profile tractors)ø

1шт.

8

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

CLAMP hose, No. 32, type F, Includes: Ref. 9 and 10

2шт.

9

114614C1

SHIELD

fiberglass heat

1шт.

10

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

11

401488R1

GUARD

pipe

1шт.

12

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

13

67672C1

CLAMP

pipe

2шт.

14

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

hex, 3/8 NC x 1-1/8 inch, grade 5

3шт.

15

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

16

120377

NUT,3/8" - 16, Gr 5

3шт.

17

401489R2

MUFFLER

1шт.

18

401490R2

PIPE

tail

1шт.

19

3125262R1

SUPPORT

tail pipe, rear

1шт.

20

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21

271714

BOLT,Hex, 5/8" - 11 x 7/8", Gr 5

hex, 5/8 NC x 7/8 inch, grade 5

1шт.

22

NSS

NOT SOLD SEPARAT

STUD exhaust manifold (see Figure 2-46)

8шт.
