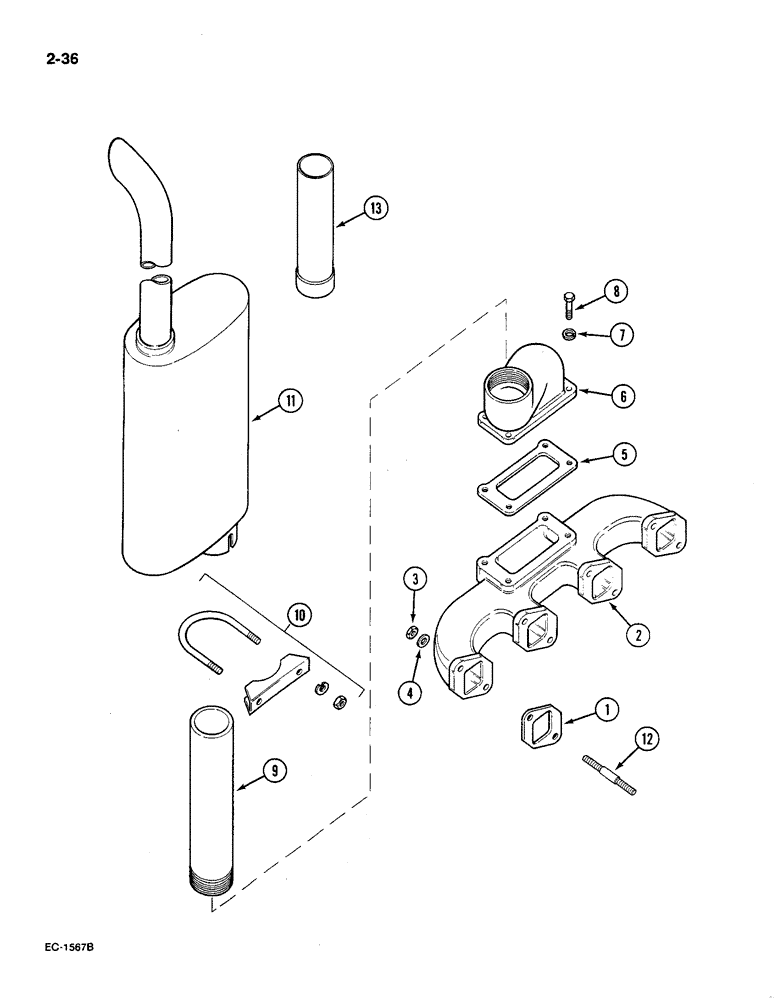

Запчасти Case IH 585 (2-36) - EXHAUST AND MANIFOLD, VERTICAL (02) - ENGINE

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold

4шт.

2

3136066R12

MANIFOLD ASSY

MANIFOLD exhaust

1шт.

3

103026

NUT,3/8"-24, G5

6шт.

4

20285H

WASHER

plain, 0.406 x 0.75 x 0.105 inch

6шт.

5

3136248R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold

1шт.

6

3136668R1

ELBOW

exhaust manifold

1шт.

7

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

NLS

NO LONGER SERVICED

hex, 3/8 NC x 1 inch, grade 5

4шт.

9

80547C1

TUBE

KIT service, exhaust pipe (with fitting instructions), Includes: Pipe Exhaust and Instructions fitting

1шт.

NSS

NOT SOLD SEPARAT

PIPE, EXHAUST

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS fitting

1шт.

10

1502294C1

CLAMP

muffler, U-type

1шт.

11

83027C1

MUFFLER

exhaust, curved end

1шт.

Spark arrest muffler, see SB 038-87

1шт.

11

83028C1

MUFFLER

exhaust, curved end, Serial Range: (Optional-83027C1)

1шт.

12

STUD exhaust manifold (see Figure 2-46)

1шт.

13

379661R1

PIPE

exhaust extension, Non cab tractors fitted with ROPS canopy.

1шт.
