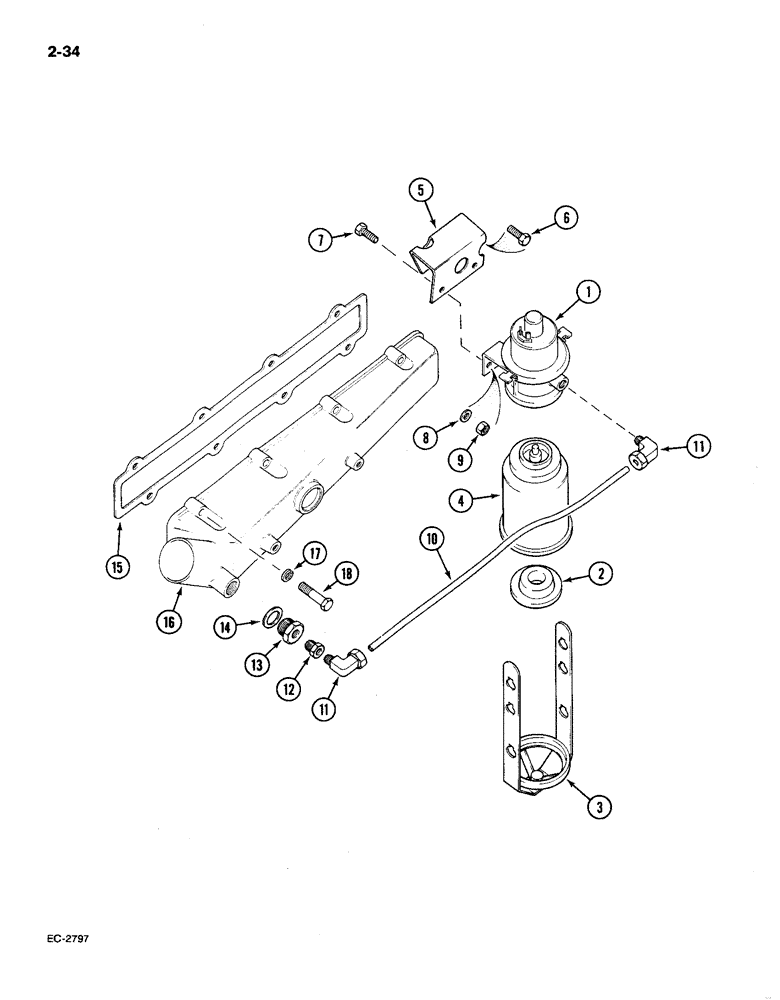

Запчасти Case IH 585 (2-34) - ETHER START AND INTAKE MANIFOLD (02) - ENGINE

1

533231R92

SOLENOID

VALVE solenoid, ether injection, Includes: Ref. 2 and 3

1шт.

2

1963571C1

GASKET

GASKET ether starting injector

1шт.

3

121851C1

RETAINER

ether fluid cannister

1шт.

4

385064R91

FLUID

ether starting, 12 ounce can

1шт.

5

84706C1

SUPPORT

BRACKET injection mounting

1шт.

6

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

7

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

hex, 5/16 NC x 7/8 inch, grade 5

2шт.

8

120124

SCREW,Hex, M12 x 1.75 x 90mm, Cl 8.8, Full Thd

WASHER lock, 5/16 inch

2шт.

9

120376

NUT,5/16"-18, G5

2шт.

10

NSS

NOT SOLD SEPARAT

PIPE injection feed, 16-1/8 inch (Cut from 995059R2)

1шт.

10

995059R2

TUBE

PIPE bulk length, 20 foot roll

1шт.

11

140304

ELBOW

90 degree, 1/8 inch OD tube

2шт.

12

269635R91

NOZZLE CAP

NOZZLE starting fluid

1шт.

13

3116081R1

JET

ADAPTOR ether nozzle

1шт.

14

933945R1

SEALING RING,M23 x 28 x 2.5

RING packing

1шт.

15

3055398R2

MANIFOLD GASKET

intake manifold

1шт.

16

3138825R1

MANIFOLD

intake

1шт.

17

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

8шт.

18

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

8шт.
