Запчасти Case IH 585 (9-616) - DECALS (09) - CHASSIS/ATTACHMENTS

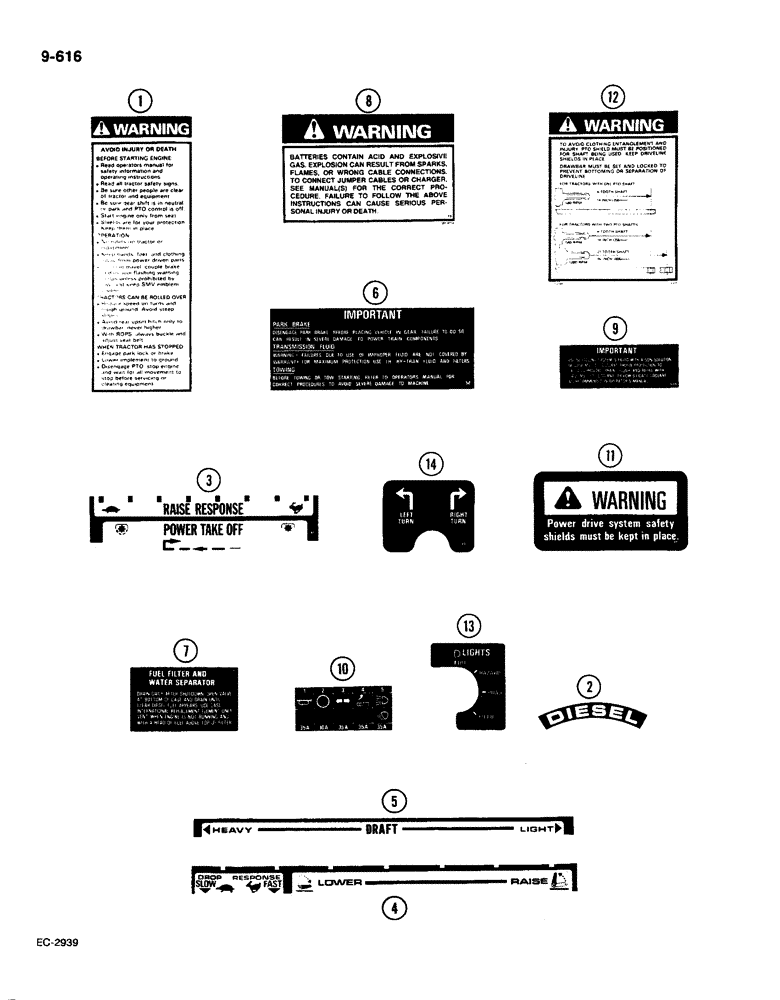

Схема запчастей Case IH 585 - (9-616) - DECALS (09) - CHASSIS/ATTACHMENTS
1
4
7
10
14
3
12
6
5
11
8
13
9
2

Артикул

Название

Примечание

Количество

1

321-6771

DECAL

warning instructions

1шт.

1

321-6782

DECAL

caution instructions, French

1шт.

1

111480C3

DECAL

caution instruction, Serial Range: -18001

1шт.

2

533864R1

PRODUCT GRAPHIC

DECAL diesel fuel, tractor without cab

1шт.

3

1135102R1

PRODUCT GRAPHIC

DECAL P.T.O. and raise response guide, English, tractor without cab

1шт.

3

1135103R1

PRODUCT GRAPHIC

DECAL P.T.O. and raise response guide, French, tractor without cab

1шт.

65771C1

DECAL

side PTO caution instruction, Serial Range: -18001

1шт.

4

537663R1

PRODUCT GRAPHIC

DECAL drop response guide, English, tractor without cab

1шт.

4

1092694R1

PRODUCT GRAPHIC

DECAL drop response guide, French, tractor without cab

1шт.

5

537664R1

PRODUCT GRAPHIC

DECAL draft control guide, English, tractor without cab

1шт.

5

1092679R1

DECAL

draft control guide, French, tractor without cab

1шт.

6

1093171R1

DECAL

product operation warning instruction, English

1шт.

6

1093233R1

DECAL

product operation warning instruction, French

1шт.

7

99882C1

DECAL

fuel filter and water seperator, English, Start Serial: 18001

1шт.

7

99887C1

DECAL

fuel filter/water seperator, French, Start Serial: 18001

1шт.

7

1093173R1

PRODUCT GRAPHIC

DECAL fuel filter/water seperator, English, Serial Range: -18001

1шт.

8

321-6714

DECAL

battery jump start, Start Serial: 18001

1шт.

8

321-6806

DECAL

battery jump start warning, French, Start Serial: 18001

1шт.

1093174R1

PRODUCT GRAPHIC

DECAL alternator, Serial Range: -18001

1шт.

9

99878C1

DECAL

anti-freeze, English, Start Serial: 18001

1шт.

9

99879C1

DECAL

anti-freeze, French, Start Serial: 18001

1шт.

9

1093175R1

PRODUCT GRAPHIC

DECAL anti-freeze, Serial Range: -18001

1шт.

10

1135340R1

PRODUCT GRAPHIC

DECAL fuse box symbols, tractor without cab

1шт.

10

1135339R1

DECAL

fuse box symbol, tractor with cab

1шт.

11

64553C2

PRODUCT GRAPHIC

DECAL caution, power drive, tractor without cab

1шт.

12

321-6769

DECAL

dual PTO and drawbar, English, Start Serial: 18001

1шт.

12

321-6780

DECAL

dual PTO, French, Start Serial: 18001

1шт.

12

1265125C1

PRODUCT GRAPHIC

DECAL caution, dual PTO, Serial Range: -18001

1шт.

13

1265116C1

PRODUCT GRAPHIC

DECAL light switch, English

1шт.

13

1265230C1

PRODUCT GRAPHIC

DECAL light switch, French

1шт.

14

1265117C1

PRODUCT GRAPHIC

DECAL turn signal, English, tractor without cab

1шт.

14

1265233C1

PRODUCT GRAPHIC

DECAL turn signal, French, tractor without cab

1шт.

14

98099C1

DECAL

turn signal, tractor with cab

1шт.

Выбрано товаров: 33
