Запчасти Case IH 585 (9-608) - LOWER LINKS, 33 INCH TELESCOPIC (09) - CHASSIS/ATTACHMENTS

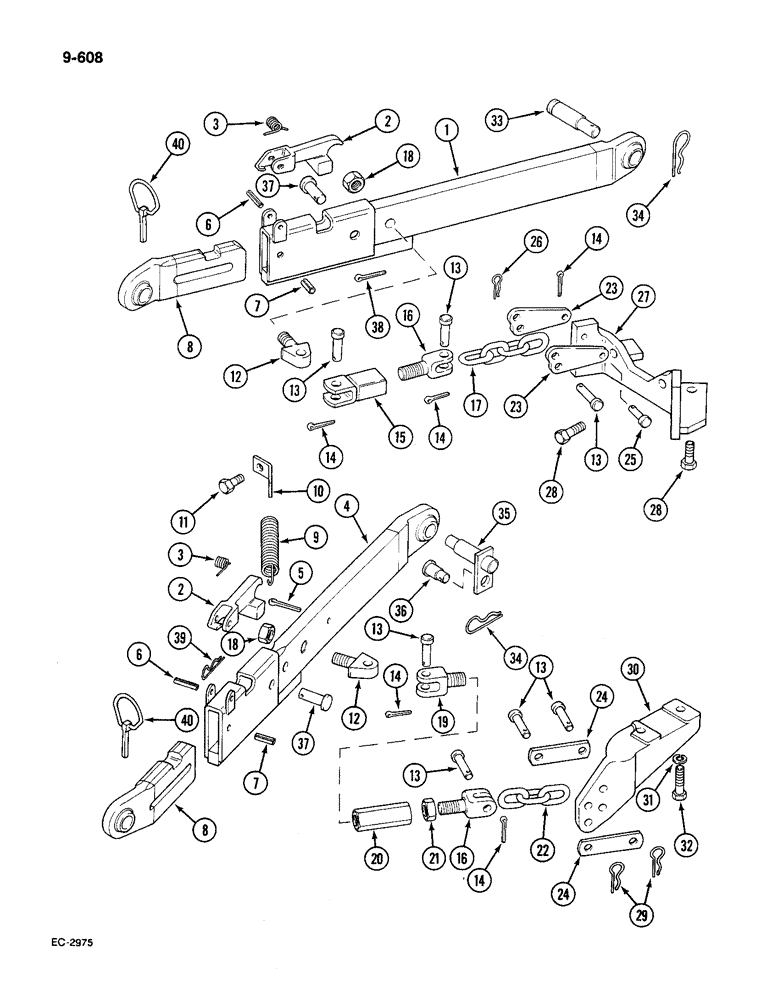

Схема запчастей Case IH 585 - (9-608) - LOWER LINKS, 33 INCH TELESCOPIC (09) - CHASSIS/ATTACHMENTS
18
3
29
16
33
13
27
13
15
14
14
30
37
40
32
3
37
24
13
8
19
39
6
21
23
13
6
2
36
4
9
12
7
23
28
14
31
17
13
38
2
14
34
25
11
22
16
13
5
12
20
18
8
34
1
24
35
7
28
14
40
26
10

Артикул

Название

Примечание

Количество

1

527971R1

LOWER LINK

LINK front section, right lower (inside check chain)

1шт.

1

527970R1

LOWER LINK

LINK front section, left lower (inside check chain)

1шт.

2

403023R1

LATCH

rear section lower

2шт.

3

403024R1

SPRING

2шт.

4

3121157R91

LOWER LINK

LINK front section, left lower (outside check chain)

1шт.

4

3121158R91

LOWER LINK

LINK front section, right lower (outside check chain), Includes: Ref. 5

1шт.

5

32-2024

COTTER PIN,5/16" x 1 1/2"

PIN, SPLIT (COTTER), 5/16" x 1 1/2"

1шт.

6

591261R1

PIN,3/8" x 2 1/8", Coiled

2шт.

7

19903R1

PIN,1/2" x 1 3/4", Coiled

2шт.

8

403020R2

END FITTING

LINK rear section, right lower

1шт.

8

403019R2

END FITTING

LINK rear section, left lower

1шт.

9

662632R1

SPRING

check chain restraining (outside)

2шт.

10

3121228R1

BRACKET

sway chain (outside check)

2шт.

11

271554

GREASE,Hex, 5/8" - 11 x 1", Gr 5

hex, 5/8 NC x 1 inch

2шт.

12

527985R1

EYEBOLT,Eye, 7/8" - 14 x 1.90"

BOLT eye, limiter chain

2шт.

13

528112R2

PIN,15.77mm OD x 54.61mm L

clevis

1шт.

14

108630

COTTER PIN,1/8" x 7/8"

PIN, SPLIT, (COTTER), 1/8" x 7/8"

1шт.

15

527978R1

YOKE,7/8" - 14

limiter chain (inside check)

2шт.

16

70622C1

CLEVIS,7/8" - 14

limiter chain

2шт.

17

403038R1

CHAIN (AG)

CHAIN limiter (Inside check)

2шт.

18

19853R1

LOCK NUT,7/8"-14

NUT hex, 7/8 inch NF

2шт.

19

3118016R1

CLEVIS,7/8" - 14

limiter chain, left thread (outside check)

2шт.

20

3116619R1

NUT

adjustment (Outside check chain)

2шт.

21

219754

BACK-UP RING

hex jam, 7/8 inch NF (outside check chain)

2шт.

22

3113595R1

CHAIN,139.7mm L

CHAIN limiter (outside check)

2шт.

23

403036R1

LARGE PLATE

STRAP limiter chain, adjusting (inside check)

4шт.

24

3113594R1

PLATE

STRAP check chain, right (outside check)

4шт.

25

403043R1

PIN

limiter chain, front (inside check)

2шт.

26

460047R1

CLIP, SPRING

PIN cotter, quick attachable (inside check chain)

2шт.

27

3123737R1

BRACKET

complete, check chain

1шт.

28

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW hex, 5/8 NC x 1-1/2 inch

4шт.

29

720631R1

LINCH PIN

PIN cotter (outside check chain)

4шт.

30

529874R1

SUPPORT

BRACKET check chain, left (outside check)

1шт.

30

529875R1

SUPPORT

BRACKET check chain, right (outside check)

1шт.

31

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

32

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

hex, 5/8 NC x 2 inch

4шт.

33

67829C1

PIN,28.57mm OD x 108.61mm L

lower link (inside check chain)

2шт.

34

538406R1

COTTER PIN

PIN cotter, quick attachable

2шт.

35

3118060R1

PIN

lower link (outside check chain)

2шт.

36

3118063R1

PIN

lower link drawbar (outside check chain)

2шт.

37

1502066C1

PIVOT PIN

PIN lift link pivot

2шт.

38

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), , inside check chain 3/16" x 1 1/4"

2шт.

39

530049R1

CLIP, SPRING

PIN cotter, quick attachable (outside check chain)

2шт.

40

533189R1

PIN

lower link drawbar

2шт.

1092798R3

DECAL

sway chains, English (not illustrated)

1шт.

Выбрано товаров: 45
