Запчасти Case IH 585 (9-606) - LOWER LINKS, 33 INCH FIXED (09) - CHASSIS/ATTACHMENTS

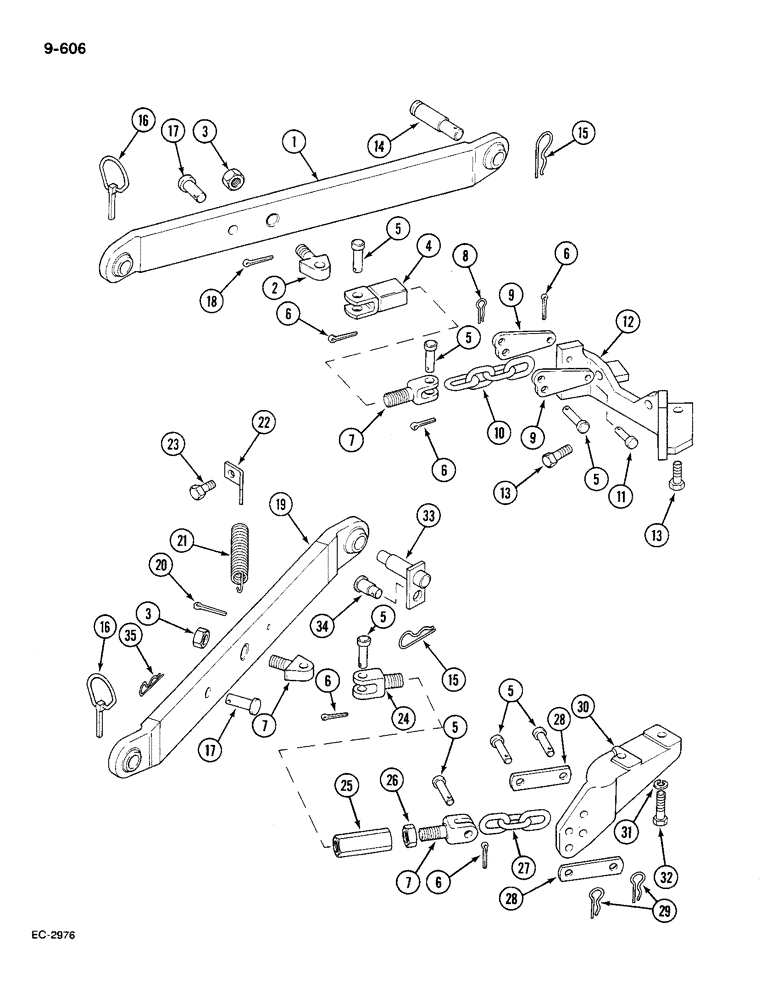

Схема запчастей Case IH 585 - (9-606) - LOWER LINKS, 33 INCH FIXED (09) - CHASSIS/ATTACHMENTS
31
27
3
30
7
22
24
17
21
9
12
5
15
20
3
33
28
4
5
23
5
2
25
8
10
1
6
34
7
16
11
13
14
6
5
7
6
15
28
5
13
17
6
18
16
5
6
29
9
35
32
19
26

Артикул

Название

Примечание

Количество

1

66250C1

LOWER LINK

LINK lower (Inside check chain)

2шт.

2

527985R1

EYEBOLT,Eye, 7/8" - 14 x 1.90"

BOLT eye, limiter chain

2шт.

3

19853R1

LOCK NUT,7/8"-14

NUT hex lock, 7/8 inch NF

2шт.

4

527978R1

YOKE,7/8" - 14

limiter chain (inside check)

2шт.

5

528112R2

PIN,15.77mm OD x 54.61mm L

clevis (inside check chain)

6шт.

5

528112R2

PIN,15.77mm OD x 54.61mm L

clevis (outside check chain)

8шт.

6

108630

COTTER PIN,1/8" x 7/8"

PIN, SPLIT, (COTTER), , Inside check chain 1/8" x 7/8"

6шт.

6

108630

COTTER PIN,1/8" x 7/8"

PIN, SPLIT, (COTTER), , Outside check chain 1/8" x 7/8"

4шт.

7

70622C1

CLEVIS,7/8" - 14

limiter chain

2шт.

Ref. no. 7 that goes thru no. 19 link should be ref no. 2.mck

1шт.

8

460047R1

CLIP, SPRING

PIN cotter, quick attachable (inside check chain)

2шт.

9

403036R1

LARGE PLATE

STRAP limiter chain, adjusting (inside check)

4шт.

10

403038R1

CHAIN (AG)

CHAIN limiter (inside check)

2шт.

11

403043R1

PIN

limiter chain, front (inside check)

2шт.

12

3123737R1

BRACKET

complete, check chain

1шт.

13

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW hex, 5/8 NC x 1-1/2 inch

4шт.

14

67829C1

PIN,28.57mm OD x 108.61mm L

lower link (inside check chain)

2шт.

15

538406R1

COTTER PIN

PIN cotter, quick attachable

2шт.

16

533189R1

PIN

lower link drawbar

2шт.

17

1502066C1

PIVOT PIN

PIN lift link pivot

2шт.

18

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

19

1286790C91

LOWER LINK

LINK lower (outside check chain), Includes: Ref. 20

2шт.

20

32-2024

COTTER PIN,5/16" x 1 1/2"

PIN, SPLIT (COTTER), 5/16" x 1 1/2"

1шт.

21

662632R1

SPRING

check chain restraining (outside)

2шт.

22

3121228R1

BRACKET

sway chain (outside check)

2шт.

23

271554

GREASE,Hex, 5/8" - 11 x 1", Gr 5

hex, 5/8 NC x 1 inch

2шт.

24

3118016R1

CLEVIS,7/8" - 14

limiter chain, left thread (outside check)

2шт.

25

3116619R1

NUT

adjustment (outside check chain) (Replaces 311619R1)

2шт.

26

425-1514

JAM NUT,Jam, 7/8"-14, G5

hex jam, 7/8 inch NF (outside check chain)

2шт.

27

3113595R1

CHAIN,139.7mm L

CHAIN limiter (outside check)

2шт.

28

3113594R1

PLATE

STRAP check chain, right (outside)

4шт.

29

720631R1

LINCH PIN

PIN cotter (outside check chain)

4шт.

30

529874R1

SUPPORT

BRACKET check chain, left (outside)

1шт.

30

529875R1

SUPPORT

BRACKET check chain, right (outside)

1шт.

31

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

32

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

hex, 5/8 NC x 2 inch

4шт.

33

3118060R1

PIN

lower link (outside check chain)

2шт.

34

3118063R1

PIN

lower link drawbar (outside check chain)

2шт.

35

530049R1

CLIP, SPRING

PIN cotter, quick attachable (outside check chain)

2шт.

1092798R3

DECAL

sway chains - English (not illustrated)

1шт.

1092799R3

DECAL

sway chains - French (not illustrated)

1шт.

Выбрано товаров: 41
