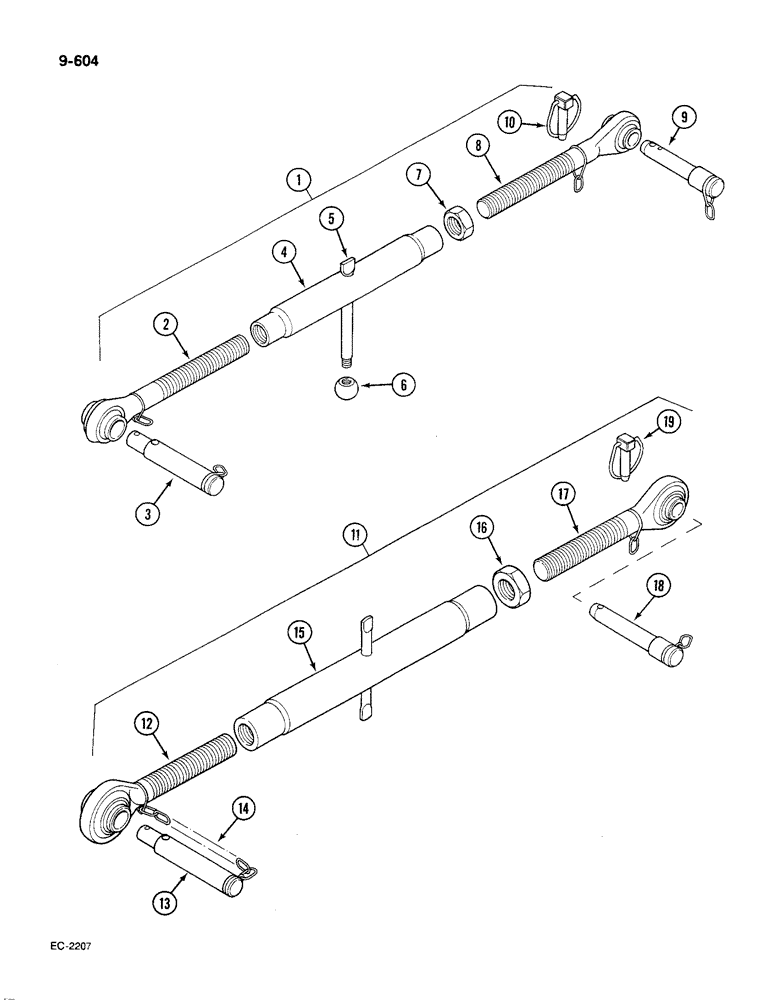

Запчасти Case IH 585 (9-604) - THREE POINT HITCH UPPER LINK (09) - CHASSIS/ATTACHMENTS

1

528079R91

UPPER LINK

LINK upper, Includes: Ref. 2-10

1шт.

2

527994R1

SCREW

upper, left hand thread

1шт.

3

528084R1

HITCH PIN

PIN upper link, Category 11

1шт.

4

528003R1

TURNBUCKLE

1шт.

5

65958C2

ROD

turnbuckle handle

1шт.

6

3048296R1

BUTTON

KNOB turnbuckle rod

1шт.

7

425-1418

JAM NUT,Jam, 1 1/8"-7, G5

hex, lock 1-1/8 inch

1шт.

8

527996R1

SCREW

SCREW upper, right hand thread

1шт.

9

528081R1

PIN ASSY.

PIN Category 1, upper link

1шт.

10

533189R1

PIN

lower link drawbar

1шт.

11

1328195C91

LINK

upper (Optional to 528079R91), includes all parts listed below

1шт.

12

1328189C1

SCREW,M27 x 3, LH Threads

SCREW LH thread, upper link

1шт.

13

1328194C1

PIN

- upper link

1шт.

14

1328193C1

CHAIN (AG)

CHAIN upper link

2шт.

15

1328196C1

TRUNNION,M27 x 3

TURNBUCKLE

1шт.

16

905709R1

THIN NUT,Thin, M27 x 3

hex

1шт.

17

1328190C1

SCREW,M27 x 3

SCREW RH thread, upper link

1шт.

18

1328192C1

PIN

- upper link

1шт.

19

1328218C1

LINCH PIN,11mm OD

- link

1шт.
