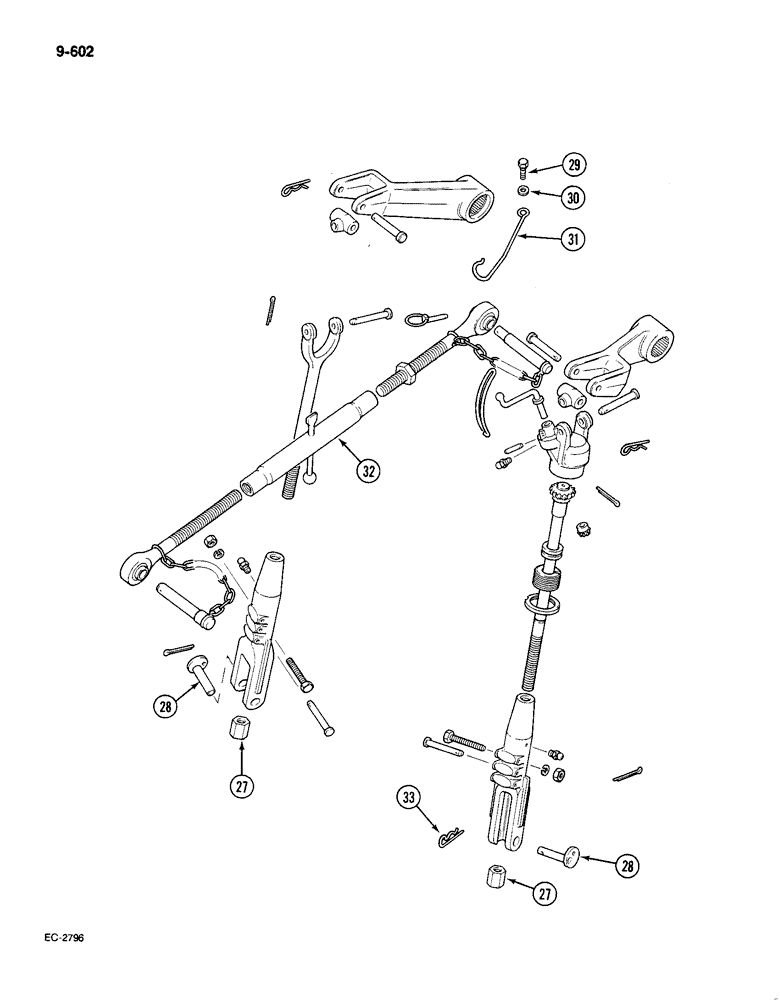

Запчасти Case IH 585 (9-602) - THREE POINT HITCH, CONTD (09) - CHASSIS/ATTACHMENTS

27

527937R1

NUT

lift link

2шт.

28

1502066C1

PIVOT PIN

PIN lift link pivot, tractor with fixed lower links

2шт.

28

402645R1

PIN

lift link pivot, tractor with telescopic lower links

2шт.

29

391047R1

BOLT,Shldr, Hex, 3/8" - 16 x 1.18"

BOLT - Shoulder

1шт.

30

23042R1

WASHER

flat, 17/32 x 1 x 1/32 inch

1шт.

31

530050R3

CLIP,ELECTRICAL

CLIP upper link storage

1шт.

32

528079R91

UPPER LINK

LINK upper (see Figure 9-604)

1шт.

32

1328195C91

LINK

upper (see Figure 9-604)

1шт.

33

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), , tractor with telescopic lower links 1/4" x 1 1/4"

1шт.

33

530049R1

CLIP, SPRING

PIN cotter, quick attachable, tractor with fixed lower links

1шт.
