Запчасти Case IH 585 (9-600) - THREE POINT HITCH (09) - CHASSIS/ATTACHMENTS

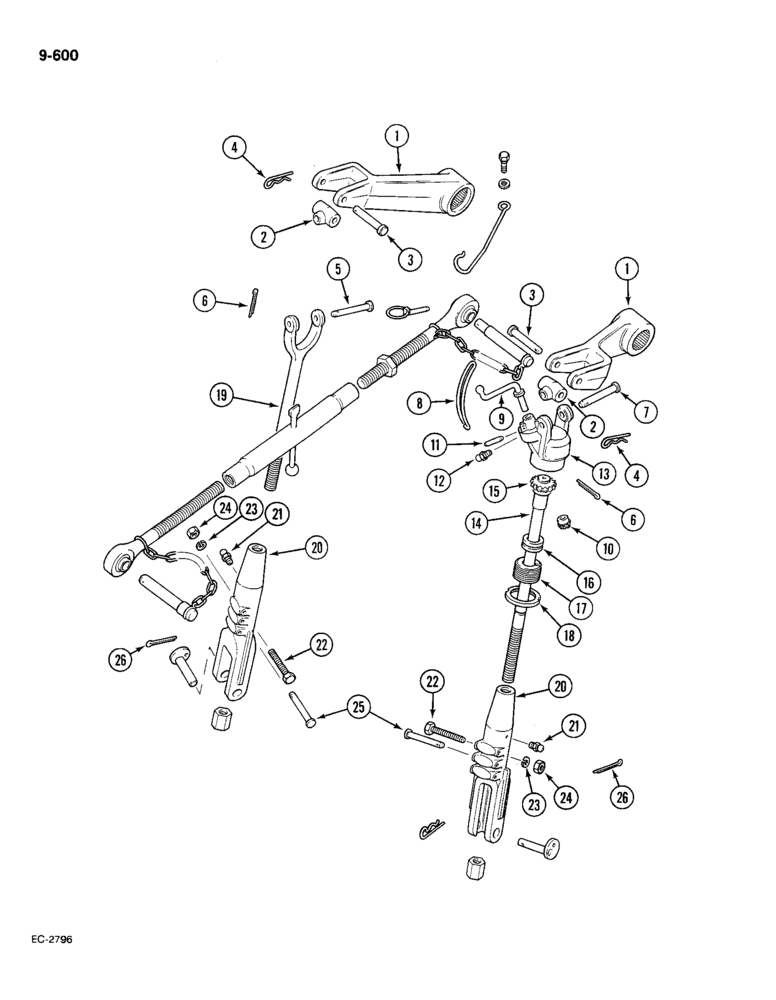

Схема запчастей Case IH 585 - (9-600) - THREE POINT HITCH (09) - CHASSIS/ATTACHMENTS
23
22
20
23
4
18
21
2
12
19
21
22
20
17
3
10
6
5
13
6
15
1
9
14
24
7
8
2
24
1
26
4
16
3
25
11
26

Артикул

Название

Примечание

Количество

1

402634R2

ROCKER ARM

ARM rockshaft

2шт.

2

539247R1

BRACKET, PIVOT

SWIVEL levelling screw, tractor with flange type rear axle, Serial Range: -18001

2шт.

2

704207R3

PIVOT

SWIVEL levelling screw, tractor with bar type rear axle

2шт.

3

3044309R1

PIN

rockershaft arm

2шт.

4

720631R1

LINCH PIN

PIN cotter

2шт.

5

3044309R1

PIN

rockshaft arm

1шт.

6

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

7

3069069R1

PIN

headed, 5/8 x 3-3/4 inch

1шт.

8

3072424R1

SPRING

levelling screw handle

1шт.

9

527943R1

CRANK

HANDLE levelling screw

1шт.

Ref #9 - 3118015R1 New Handle (for XL Tractors Only)

1шт.

10

3069063R1

GEAR

pinion

1шт.

11

435-1612

GROOVED PIN,3/16" x 3/4", Type A

Pin, Grooved, 3/16" x 3/4", Type A

1шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

13

3072422R2

HOUSING

levelling screw

1шт.

14

3116725R91

SCREW

SCREW levelling, lift right link, tractor with flange type rear axle, Serial Range: -18001

1шт.

14

3116726R1

SCREW

levelling, Serial Range: (Optional-3116725R91)

1шт.

14

69993C91

SET SCREW

SCREW levelling, lift right link, tractor with bar type rear axle

1шт.

14

69988C1

ADJUSTMENT SCREW

SCREW levelling (Optional to 69993C91), Includes: Ref. 15

1шт.

15

3105187R1

COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L

bearing (With levelling screw 3116725R91)

1шт.

15

3105187R1

COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L

bearing (with levelling screw 69993C91)

1шт.

16

3044346R91

BALL BEARING

BEARING levelling screw

1шт.

16

3044347R91

THRUST BEARING

BEARING levelling screw, Serial Range: (Optional-3044346R91)

1шт.

16

3044348R91

BEARING, THRUST

BEARING levelling screw, Serial Range: (Optional-3044346R91)

1шт.

16

3068049R91

BALL BEARING

BEARING levelling screw, Serial Range: (Optional-3044346R91)

1шт.

17

3069064R1

BEARING

levelling screw

1шт.

18

3069065R1

LOCK NUT

levelling screw bearing

1шт.

19

527948R91

CLEVIS,7/8" - 9

YOKE lift link, left, tractor with flange type rear axle, Serial Range: -18001

1шт.

19

527948R91

CLEVIS,7/8" - 9

YOKE lift link, left, tractor with bar type rear axle (Replaces 527935R1)

1шт.

19

527948R91GV

LEVELLING DEVICE

Value, Yoke Assy.

1шт.

20

3121964R1

HOUSING

lift link yoke, tractor with fixed lower links

2шт.

20

3121965R1

HOUSING

lift link yoke, tractor with telescopic lower links

2шт.

21

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING grease, straight drive type, 1/4 inch

2шт.

22

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

23

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch NC, grade 5

2шт.

25

68804C1

CLEVIS PIN,7.94mm OD x 58.74mm L

PIN float stop

2шт.

26

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

Выбрано товаров: 38
