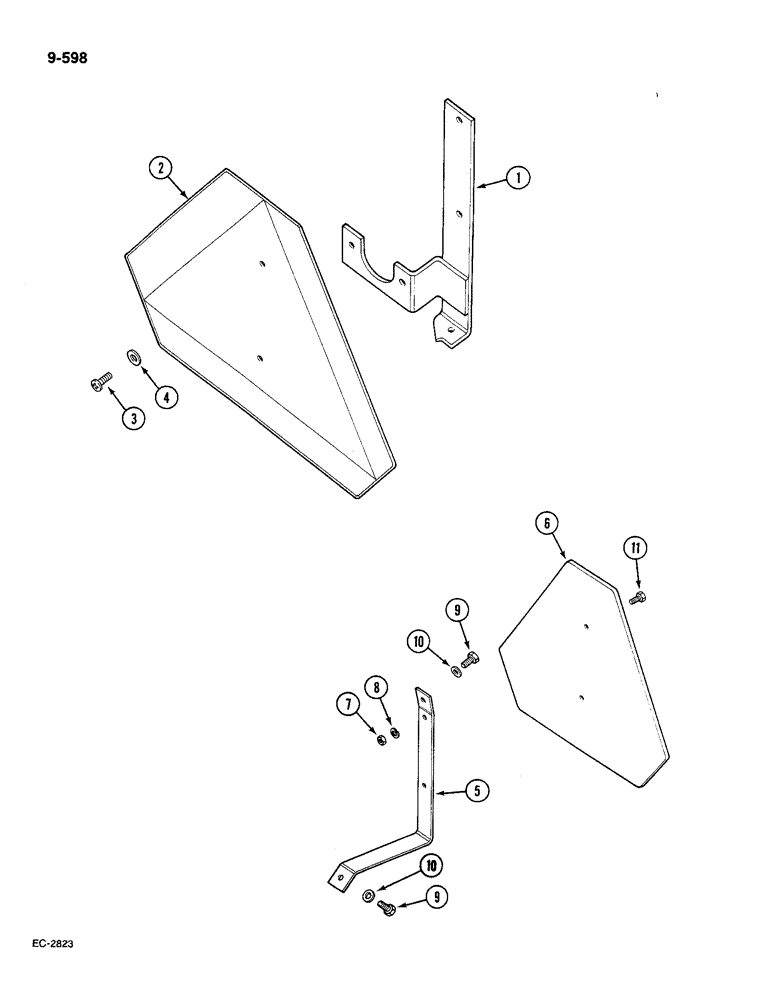

Запчасти Case IH 585 (9-598) - SLOW MOVING VEHICLE EMBLEM, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

114623C2

BRACKET

emblem mounting

1шт.

2

1265035C1

EMBLEM

slow moving vehicle

1шт.

3

449625

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW tapping, pan cross recess, No. 10 x 5/8 inch

2шт.

4

120391

WASHER,#10

flat, 0.219 x 0.5 x 0.036 inch

2шт.

5

98020C1

SUPPORT

SMV emblem, with cab

1шт.

6

1265035C1

EMBLEM

slow moving vehicle, with cab

1шт.

7

120375

NUT,Hex, 1/4" - 20, Gr 5

SMV emblem to support, w/ Cab 1/4"-20, G5

2шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , SMV emblem to support, with cab 1/4"

2шт.

9

931562R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, M8 x 16 mm, class 8.8, phc, support to cab, with cab

2шт.

10

933347R1

WASHER,M8 x 16 x 1.6

plain, 8 mm, support to cab, with cab

2шт.

11

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SMV emblem to support, with cab Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.
