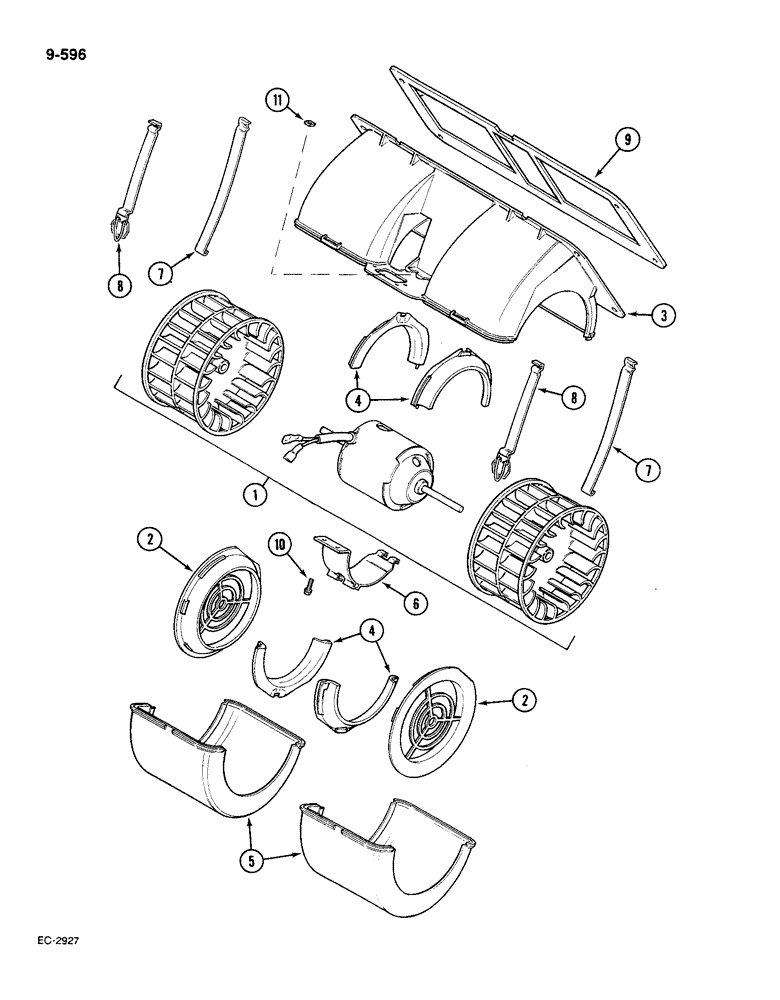

Запчасти Case IH 585 (9-596) - AIR CONDITIONING BLOWER (09) - CHASSIS/ATTACHMENTS

3233573R1

BLOWER

air, includes all parts listed below

1шт.

1

1974779C1

MOTOR

blower, with wheels

1шт.

1

355190A1R

REMAN-BLOWER,12V

Reman for New PN 1974779C1

1шт.

1

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

2

197480C1

BELT

VENTURI blower inlet

2шт.

3

1975737C1

HOUSING

blower

1шт.

4

1975738C1

RING

blower housing

4шт.

5

1975739C1

LID

COVER blower housing

2шт.

6

1975740C1

HOLDER

RETAINER blower motor

1шт.

7

1975741C1

STRAP

retaining

2шт.

8

1975742C1

STRAP

latch retaining

2шт.

9

1975743C1

GASKET

GASKET blower sealing

1шт.

10

814-5020

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

hex. head, M5 x 20 mm class 8.8 ZND

2шт.

11

1975752C1

SQUARE NUT

square, M5

2шт.
