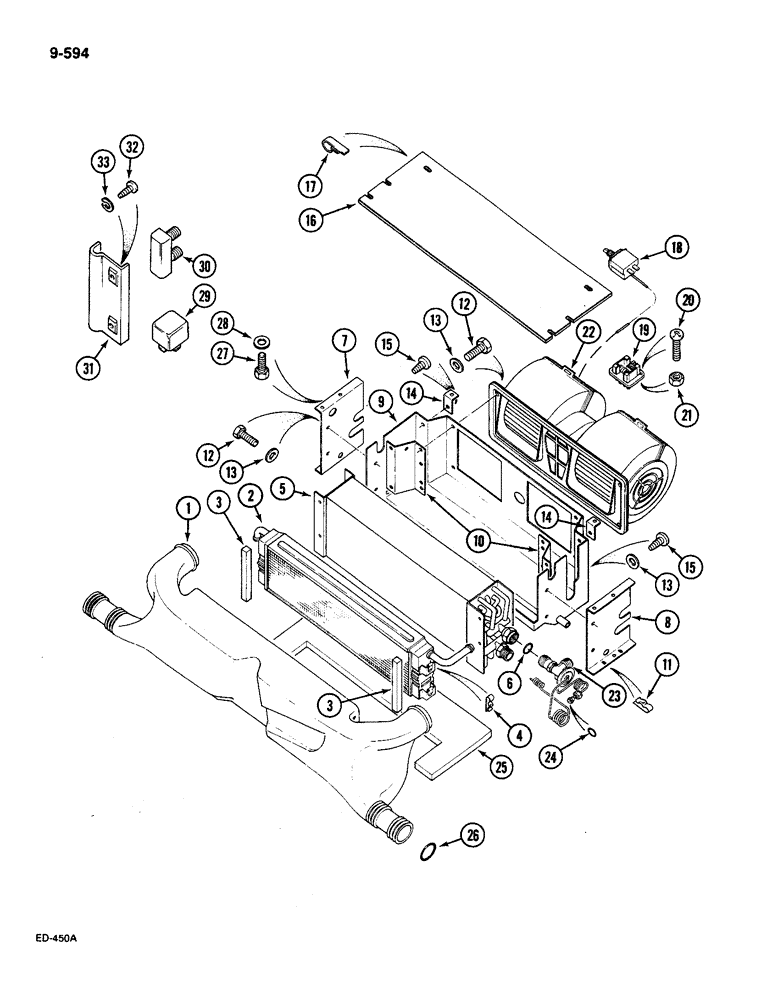

Запчасти Case IH 585 (9-594) - AIR CONDITIONING BLOWER ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1280294C92

HEATER

BLOWER H.V.A.C., Includes: Ref. 1-25

1шт.

1

1280277C2

MANIFOLD

DEFLECTOR

1шт.

2

3233586R91

HEAT-EXCHANGER

ELEMENT heat exchanger, Includes: Ref. 3 and 4

1шт.

3

1283288C1

GASKET

foam

2шт.

4

3233660R1

SPRING NUT

spring, push on

4шт.

5

1280255C1

EVAPORATOR

complete, Includes: Ref. 6

1шт.

6

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 inch, class 5

1шт.

7

1280281C1

SUPPORT

BRACKET drain pan side, right

1шт.

8

1280280C1

SUPPORT

BRACKET drain pan side, left

1шт.

9

1280254C2

HOUSING

PAN evaporator drain

1шт.

10

1280480C1

SUPPORT

BRACKET drain pan

2шт.

11

3233707R1

SPRING NUT

spring, push on

2шт.

12

931465R1

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

hex. head M6 x 16 mm, class 8.8, PHC

6шт.

13

934948R1

WASHER,M6

flat, 6.4 x 12.5 x 1.6 mm

10шт.

14

1280253C1

SUPPORT

BRACKET drain pan rear

2шт.

15

30773R1

SELF-TAP SCREW,Pan Hd, M4.8 x 16

SCREW tapping, pan head, cross recess, 4.8 x 16 mm

4шт.

16

1535269C1

COVER

(Replaces 1280282C1)

1шт.

17

143382C1

CLIP

spring

4шт.

18

109268C2

SWITCH

thermostat

1шт.

19

3404054R1

RESISTOR

blower

1шт.

19

3234173R1

RESISTOR

(Optional to 3404054 R1)

1шт.

20

30495R1

SCREW,Cross Pan Hd, M3 x 12

- pan head, cross recess, 3 mm x 12mm, class 4.8

2шт.

21

30272R1

NUT,M3, Cl 5

hex, M3, class 5, ZND

2шт.

22

3233573R1

BLOWER

air (see Figure 9-596)

1шт.

23

1280333C1

VALVE

expansion

1шт.

24

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

3/16 x 5/16 inch, class 5

1шт.

Ref #24. Use 192344A1 for use on air conditioned models only. Branko (t/s 547-94C)

1шт.

25

1280252C2

INSULATOR

evaporator

1шт.

26

1280297C1

O-RING,45mm OD x 5.5mm Width

2шт.

27

3230790R1

HEX SOC SCREW,M6 x 16mm, Cl 8.8

BOLT hex. socket head, M6 x 16 mm, class 8.8

6шт.

28

934948R1

WASHER,M6

flat, 6.4 x 12.5 x 1.6 mm

6шт.

29

146461C1

RELAY

30 amp continuous duty

3шт.

30

245763C1

CIRCUIT-BREAKER,20A

BREAKER circuit, 20 amp

1шт.

30

245765C1

CIRCUIT-BREAKER,30A

BREAKER circuit, 30 amp

1шт.

30

403069C1

CIRCUIT-BREAKER

BREAKER circuit, 30 amp (Optional to 245763 C1 / 245765 C1)

1шт.

31

245867C1

HOLDER

circuit breaker (Not used with 403069 C1)

1шт.

32

3233276R1

SELF-TAP SCREW,Pan Hd, M4.2 x 13

SCREW phillips tapping, 4.2 x 13 mm

1шт.

33

933844R1

LOCK WASHER,M5

WASHER lock, 5 mm

1шт.
