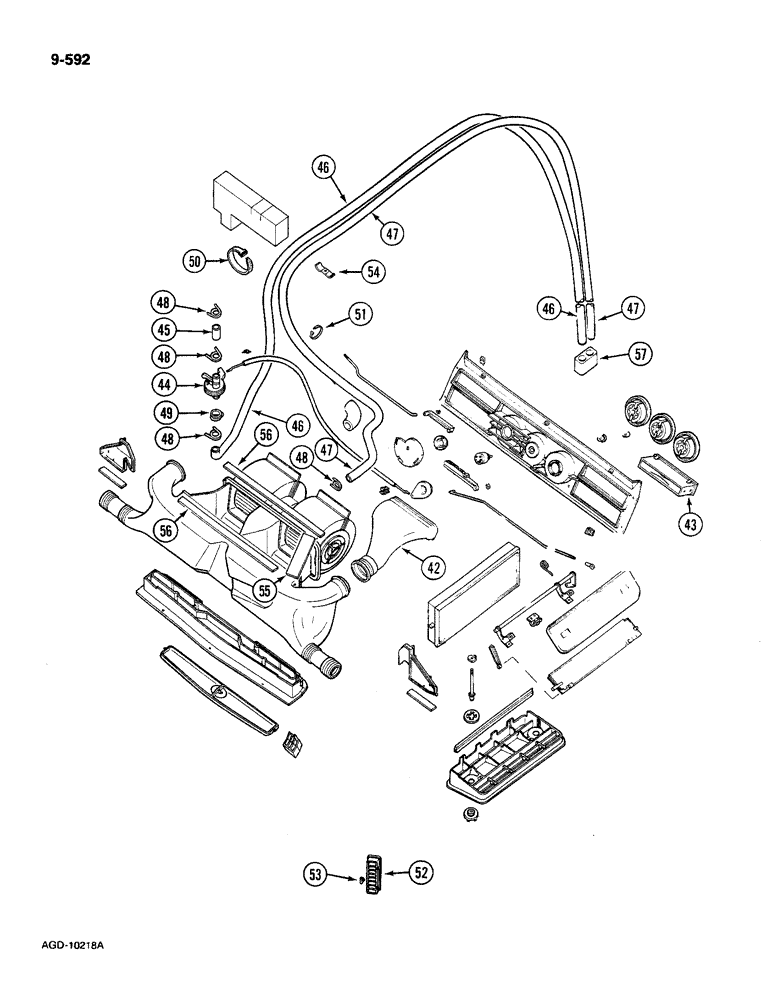

Запчасти Case IH 585 (9-592) - AIR CONDITIONING, HEATER ASSEMBLY, CONTD (09) - CHASSIS/ATTACHMENTS

42

3233554R1

AIR CHANNEL

CHANNEL air, defroster, left

1шт.

42

3233553R1

AIR CHANNEL

CHANNEL air, defroster, right

1шт.

43

3233587R1

DIFFUSER

upper, left

1шт.

43

3233588R1

DIFFUSER

upper right

1шт.

44

3234102R92

VALVE

heating water

1шт.

45

NSS

NOT SOLD SEPARAT

HOSE flexible, 40 mm, (Cut from R 54970)

1шт.

45

R54970

HEATER HOSE,15.88mm ID x 15240mm Bulk

15.88 mm ID x 15240.0 mm

1шт.

46

3234103R2

HEATER HOSE,15.50 mm ID x 3000.00 mm

HOSE , Heating Water Supply 15.50 mm ID x 3000.00 mm

1шт.

47

3234104R2

HEATER HOSE,15.50 mm ID x 3340.00 mm

HOSE , Water Return 15.50 mm ID x 3340.00 mm

1шт.

48

3143364R1

CLAMP,19mm - 23mm

hose

4шт.

49

3234060R2

CLAMP

1шт.

31001R1

SELF-TAP SCREW,Pan Hd, M4.2 x 13

SCREW tapping, pan head, cross recess 4.2 x 13 mm

1шт.

3233676R1

LOCK WASHER,Ext Tooth, M3.5

WASHER lock, 4 mm

1шт.

905363R1

SELF-TAP SCREW,Pan Hd, M3.5 x 13

SCREW phillips round head, 3.5 x 13 mm

1шт.

50

3402979R1

CABLE TIE

STRAP cable, 290 mm

2шт.

51

3148767R1

CABLE TIE

STRAP cable, 200 mm

1шт.

52

3233540R1

DIFFUSER

front, lower

2шт.

53

3234095R1

CLIP

CLAMP holder

8шт.

54

3234098R1

CLAMP

SUPPORT clamp, hoses

1шт.

30659R1

LOCK WASHER,Ext Tooth, M5

WASHER lock, 5 mm

1шт.

30773R1

SELF-TAP SCREW,Pan Hd, M4.8 x 16

SCREW tapping, pan head, cross recess, 4.8 x 16 mm

1шт.

55

3234096R1

SEALING STRIP

side, blower assembly

2шт.

56

3234097R1

SEALING STRIP

- Blower assy, Front and rear

2шт.

57

3234136R1

PAD, RUBBER

PAD rubber

1шт.
