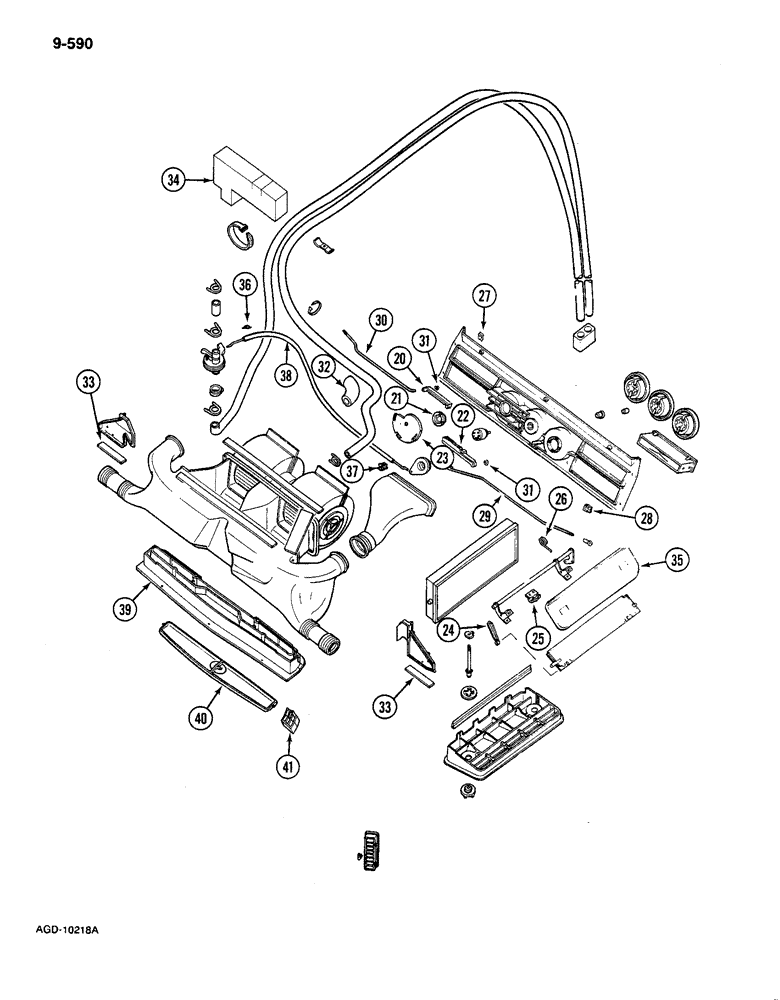

Запчасти Case IH 585 (9-590) - AIR CONDITIONING, HEATER ASSEMBLY, CONTD (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
20
3234181R1
GEAR RACK
RACK gear
1шт.
21
3234183R1
GEAR
wheel
1шт.
22
3234182R1
GEAR RACK
RACK gear
1шт.
23
3234180R1
ECCENTRIC
CAM eccentric
1шт.
24
3234195R1
ARM
operating
4шт.
3233581R1
SPRING NUT
lock, push-on
4шт.
25
3234189R1
BEARING CAP
BEARING
4шт.
3405478R1
SELF-TAP SCREW,Pan Hd, M4.2 x 16
SCREW 4.2 x 16 mm, hi-lo
8шт.
26
3234192R1
SPRING
torsion, left
1шт.
26
3234193R1
SPRING
torsion, right
1шт.
27
3234191R1
SPRING NUT
lock
3шт.
28
3234214R1
SPRING NUT
spring push-on
9шт.
29
3234199R91
ROD ASSY.
ROD operating, left, Includes: ROD and JOINT
1шт.
3234200R1
ROD
operating, left
1шт.
3233279R1
BALL JOINT
JOINT ball
1шт.
30
3234198R91
LINKAGE
ROD operating, right, Includes: ROD and JOINT
1шт.
3234201R1
ROD
operating, right
1шт.
3233279R1
BALL JOINT
JOINT ball
1шт.
31
933699R1
X,M5
RING retaining
2шт.
32
3234196R1
HOSE
flexible
1шт.
33
3234178R1
SEALING STRIP
SEAL front and rear deflectors
4шт.
34
3234122R1
SEALING STRIP
SEAL
2шт.
35
3402245R91
FLAP
air conditioning, Includes: FLAP and SEAL
2шт.
3234205R1
FLAP
air conditioning
1шт.
3404242R1
SEAL
flap
1шт.
36
3233746R1
CLIP
1шт.
37
3401582R1
SPRING NUT
lock
1шт.
30880R1
SELF-TAP SCREW,Pan Hd, M4.8 x 13
SCREW tapping, pan head phillips, 4.8 x 13 mm
1шт.
30659R1
LOCK WASHER,Ext Tooth, M5
WASHER lock, 5 mm
1шт.
38
3234197R1
CABLE
operating, heater water valve
1шт.
3233576R92
DIFFUSER
windscreen defroster
1шт.
3234323R1
SELF-TAP SCREW,Oval Hd, M4.2 x 9.5
SCREW
3шт.
3233646R1
SELF-TAP SCREW,Oval Hd, M4.2 x 19
SCREW tapping, oval head, 4.2 x 19 mm
3шт.
3234036R1
SPRING NUT
NUT lock, Includes: Ref. 39-41, WASHER and NUT
3шт.
39
NSS
NOT SOLD SEPARAT
DIFFUSER
1шт.
40
NSS
NOT SOLD SEPARAT
FLAP
1шт.
3402574R1
RUBBER WASHER
1шт.
41
3233578R1
DIFFUSER
left screen
1шт.
41
3233579R1
DIFFUSER
right screen
1шт.
3233581R1
SPRING NUT
lock, push-on
2шт.
Выбрано товаров: 40
