Запчасти Case IH 585 (9-588) - AIR CONDITIONING, HEATER ASSEMBLY (09) - CHASSIS/ATTACHMENTS

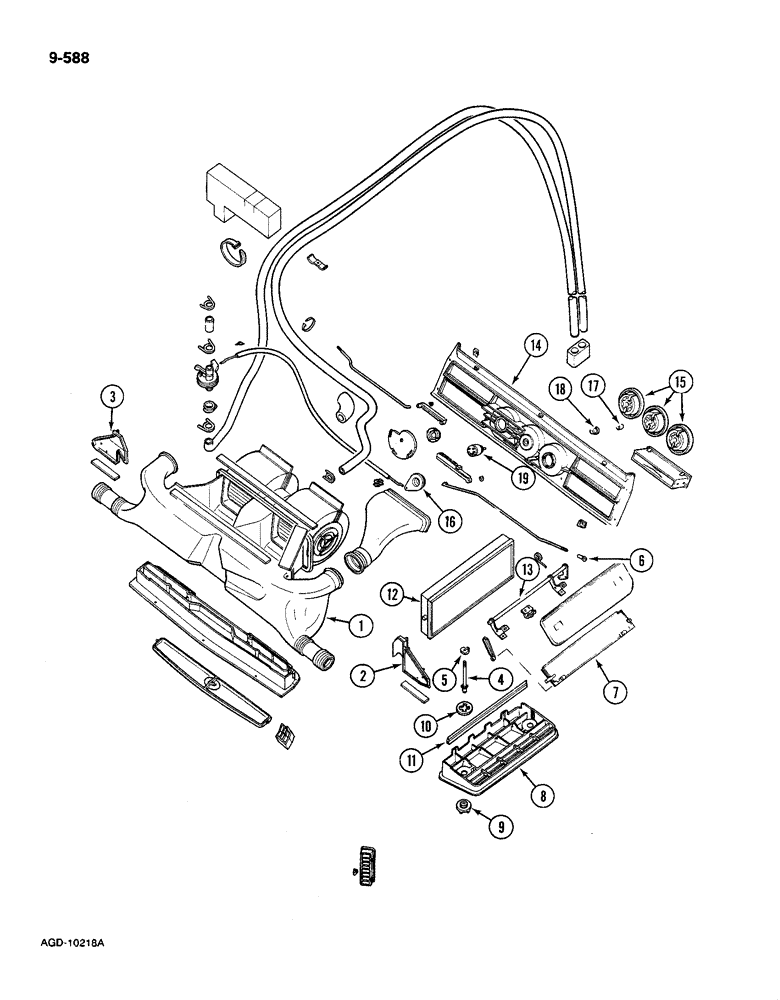

Схема запчастей Case IH 585 - (9-588) - AIR CONDITIONING, HEATER ASSEMBLY (09) - CHASSIS/ATTACHMENTS
14
17
4
12
15
10
6
8
9
13
16
11
5
2
1
18
19
3
7

Артикул

Название

Примечание

Количество

1

1280294C92

HEATER

BLOWER H.V.A.C. (see Figure 9-594)

1шт.

2

3233749R1

DEFLECTOR

front, left

1шт.

2

3234215R1

DEFLECTOR

rear, left

1шт.

3405478R1

SELF-TAP SCREW,Pan Hd, M4.2 x 16

SCREW 4.2 x 16 mm, hi-lo

4шт.

934948R1

WASHER,M6

flat, 6.4 x 12.5 x 1.6 mm

2шт.

3

3233750R1

DEFLECTOR

front, right

1шт.

3

3234216R1

DEFLECTOR

rear, right

1шт.

3405478R1

SELF-TAP SCREW,Pan Hd, M4.2 x 16

SCREW 4.2 x 16 mm, hi-lo

4шт.

934948R1

WASHER,M6

flat, 6.4 x 12.5 x 1.6 mm

2шт.

4

3402328R1

ROD ASSY.

ROD deflector control

4шт.

Q5339

NUT

square, M6

4шт.

5

934049R1

WASHER,Tab, M6.4 ID x 19 OD x .5 Thk

lock, 6 mm

4шт.

6

3233279R1

BALL JOINT

JOINT ball (see Ref. 29 and 30 on Figure 9-590)

2шт.

7

3233745R1

FLAP

2шт.

3233597R91

DIFFUSER

COVER complete, Includes: Ref. 8-11 and Clip

2шт.

8

3233572R1

CONTAINER

COVER

1шт.

3404764R1

CLIP

1шт.

9

3233598R1

KNOB

KNOB control

2шт.

10

3233599R1

WASHER

lock

2шт.

11

3234188R1

SEAL

1шт.

12

3233584R2

CAB FILTER

FILTER air cleaner

2шт.

13

3234202R91

SUPPORT

BRACKET flap assembly, left

1шт.

13

3234203R91

SUPPORT

BRACKET flap assembly, right

1шт.

30827R1

SCREW,Cross Pan Hd, M4 x 8

pan head phillips, M4 x 8 mm, grade 4.8

8шт.

934946R1

LOCK WASHER,Ext Tooth, M4

WASHER lock, 4 mm

8шт.

14

1280331C2

CONTROL PANEL

PANEL switch, air conditioning control

1шт.

15

3233615R1

BUTTON

KNOB air conditioning control

3шт.

16

3233677R1

LEVER

valve operating cable

1шт.

905274R1

SELF-TAP SCREW,Oval Hd, M5.5 x 22

SCREW tapping, oval head, 5.5 x 22 mm

1шт.

17

3233614R1

SPRING CLIP

CLIP spring

1шт.

18

3233661R1

SCREW

1шт.

19

3405693R1

BLOWER SWITCH

SWITCH blower

1шт.

905274R1

SELF-TAP SCREW,Oval Hd, M5.5 x 22

SCREW tapping, oval head, 5.5 x 22 mm

2шт.

Выбрано товаров: 33
