Запчасти Case IH 585 (9-586) - AIR CONDITIONING PIPES, CONDENSER TO CAB (09) - CHASSIS/ATTACHMENTS

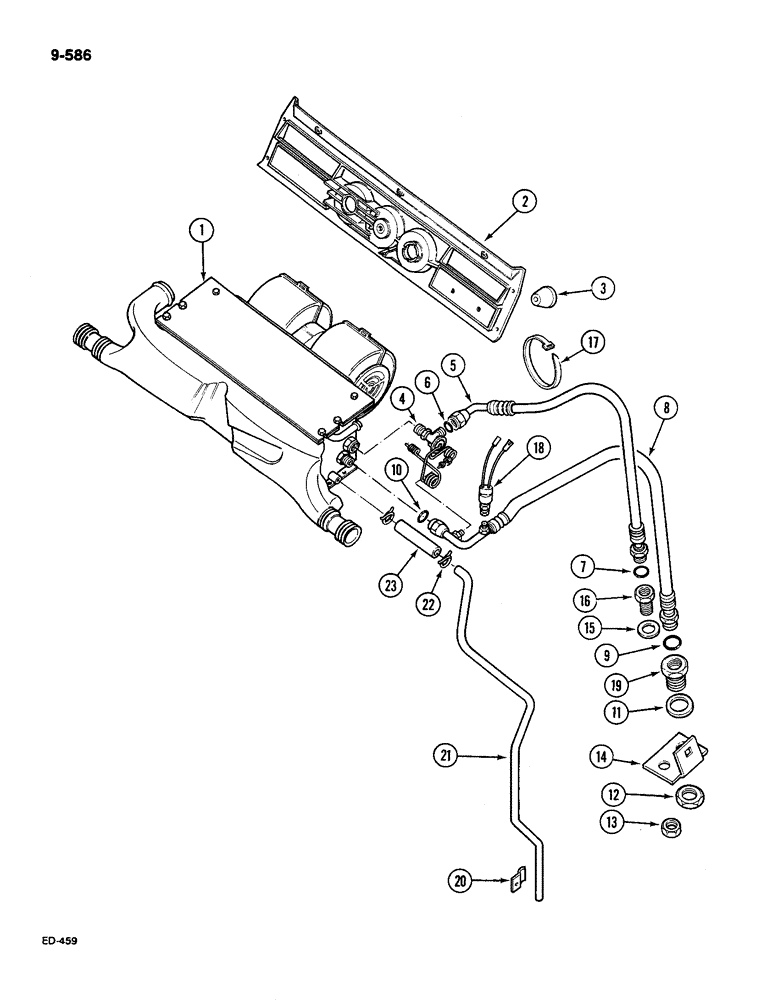

Схема запчастей Case IH 585 - (9-586) - AIR CONDITIONING PIPES, CONDENSER TO CAB (09) - CHASSIS/ATTACHMENTS
14
22
6
1
5
12
7
3
2
23
13
16
15
19
21
10
8
17
18
4
20
11
9

Артикул

Название

Примечание

Количество

1

1280294C92

HEATER

BLOWER H.V.A.C. (see Figure 9-594)

1шт.

2

1280331C2

CONTROL PANEL

PANEL switch, air conditioning

1шт.

1280330C2

DECAL

air conditioning

1шт.

3234214R1

SPRING NUT

spring push-on

9шт.

3233284R1

SELF-TAP SCREW,Oval Hd, M4.2 x 16

SCREW tapping, oval head, 4.2 x 16 mm

8шт.

3234322R1

SELF-TAP SCREW,Pan Hd, M4.2 x 16

SCREW tapping, 2 x 22 mm

3шт.

3234191R1

SPRING NUT

lock

3шт.

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER lock, 4 mm

1шт.

245661C91

LIGHT ASSY.

LIGHT indicator

1шт.

245710C1

LAMP

bulb

1шт.

3

3223801R1

BUTTON

KNOB cooling control

1шт.

109311H

JAM NUT

2шт.

4

1280333C1

VALVE

expansion

1шт.

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

3/16 x 5/16 inch, class 5

1шт.

118444C1

CLAMP

expansion valve

1шт.

5

1280250C2

PIPE

HOSE expansion valve to cab base, Includes: Ref. 6 and 7

1шт.

6

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

7

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 inch ID

1шт.

Ref #7. Use 189819A1 for use on air conditioned models only.

1шт.

8

1280251C2

PIPE

HOSE evaporator to cab base, Includes: Ref. 9-11

1шт.

9

343900R1

O-RING,1.051" ID x 0.07" Width

1-1/16 inch ID

1шт.

Ref #9. Use 189818A1 for use on air conditioned models only. Branko (t/s 647-94C)

1шт.

10

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 ID x 11/16 inch, class 5

1шт.

11

1281516C1

LOCK WASHER

WASHER lock

1шт.

12

1281518C1

JAM NUT

hex, jam

1шт.

13

1281519C1

JAM NUT

hex, jam

1шт.

14

1281549C3

SUPPORT

BRACKET air conditioning, coupling

1шт.

30807R1

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 40mm, Cl 8.8

BOLT hex, M16 x 40 mm

1шт.

30170R1

NUT,M16, Cl 10

hex, M16, class 10

1шт.

934185R1

LOCK WASHER,M16

WASHER lock, 16 mm

1шт.

15

1281517C1

LOCK WASHER

WASHER lock

1шт.

16

167869C1

FITTING

COUPLING half, male

1шт.

17

1281534C1

CABLE TIE

STRAP cable

3шт.

18

111267C4

SWITCH, A/C LOW PRES

SWITCH air conditioning, low pressure

1шт.

18

111267C4GV

SWITCH, A/C LOW PRES

SWITCH air conditioning, low pressure

1шт.

19

1280495C1

COUPLING, BREAK AWAY

COUPLING half, male

1шт.

20

3405705R1

CLAMP

8шт.

3405710R1

SCREW

8шт.

21

1281506C1

PIPE

TUBE left

1шт.

21

1281507C1

PIPE

TUBE right

1шт.

22

317683R1

HOSE CLAMP,#10, 5/8", Spring

CLAMP hose, spring wire type, No. 10

1шт.

23

3405696R2

HOSE

flexible

2шт.

Выбрано товаров: 42
