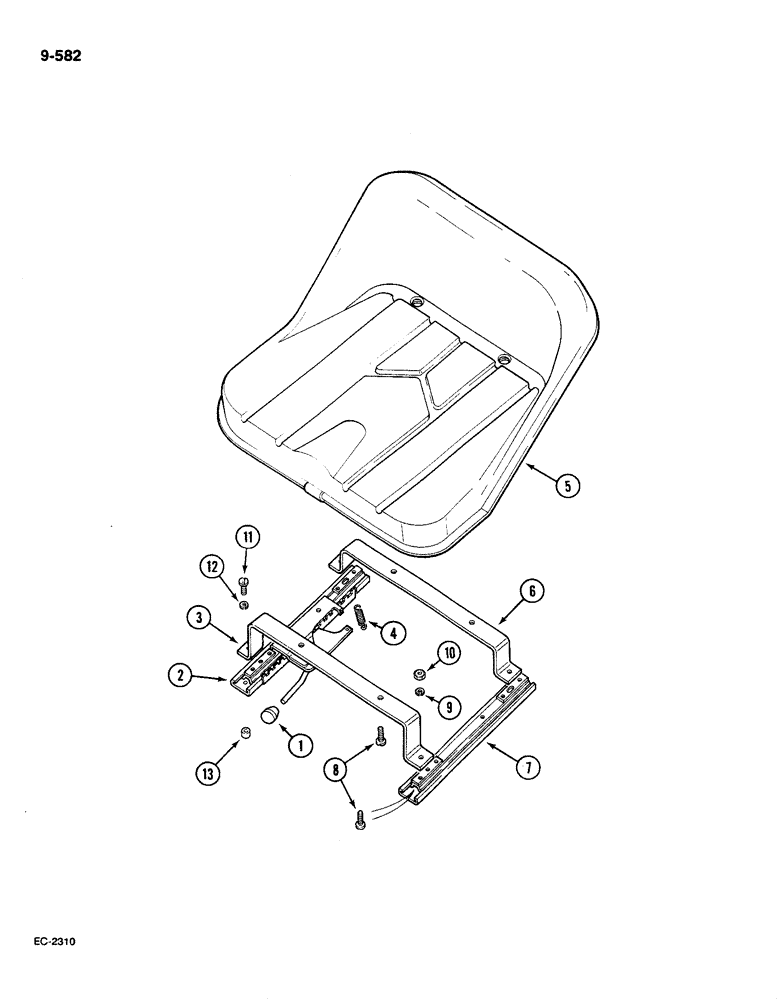

Запчасти Case IH 585 (9-582) - SEAT, NON SUSPENSION, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

3121641R91

SEAT ASSY.

SEAT static (Order components), Includes: Ref. 1-10

1шт.

1333091C1

SEAT

static (orchard version), Includes: Ref. 1-10

1шт.

1

538693R1

BUTTON

KNOB seat adjustment

1шт.

2

825199C91

SLIDE

RAIL slide, right (with adjuster)

1шт.

3

3121642R1

SUPPORT

BRACKET front mounting

1шт.

3

1333093C1

BRACKET

front mounting (orchard version)

1шт.

4

538694R1

SPRING

1шт.

5

538026R1

SEAT ASSY.

SEAT pan

1шт.

6

3121643R1

SUPPORT

BRACKET rear mounting

1шт.

6

1333092C1

BRACKET

rear mounting (orchard version)

1шт.

7

825198C1

RAIL

slide, left

1шт.

8

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

12шт.

For Non-cab, to hold seat rails to the floor

1шт.

9

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

10

120376

NUT,5/16"-18, G5

4шт.

11

3123563R1

SCREW

5/16 NC x 1-1/2 inch

4шт.

12

3123564R1

LOCK WASHER

WASHER lock, 5/16 inch

4шт.

13

3123562R1

SPACER

seat

4шт.
