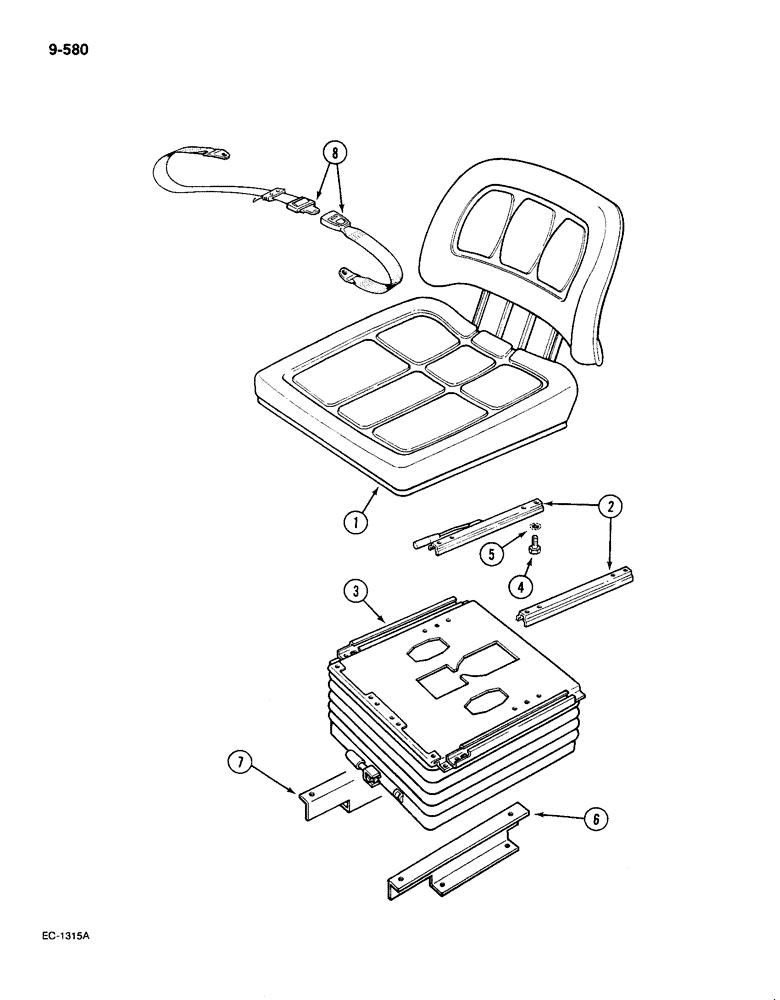

Запчасти Case IH 585 (9-580) - SEAT, BASIC SUSPENSION, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

SEAT complete, basic suspension, Includes: Ref. 1-8

1шт.

1

98167C1

CUSHION

SEAT top

1шт.

2

98204C1

RAIL

slide

1шт.

3

98205C1

SUSPENSION BLOCK

SUSPENSION seat, complete

1шт.

98203C1

KIT

seat, rebuild

1шт.

4

3402557R1

BOLT

BOLT hex, M8 x 16 mm

4шт.

5

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

4шт.

6

3402929R1

SUPPORT

BRACKET left

1шт.

7

3402930R1

SUPPORT

BRACKET right

1шт.

8

K311331

SEAT BELT

BELT seat

1шт.
