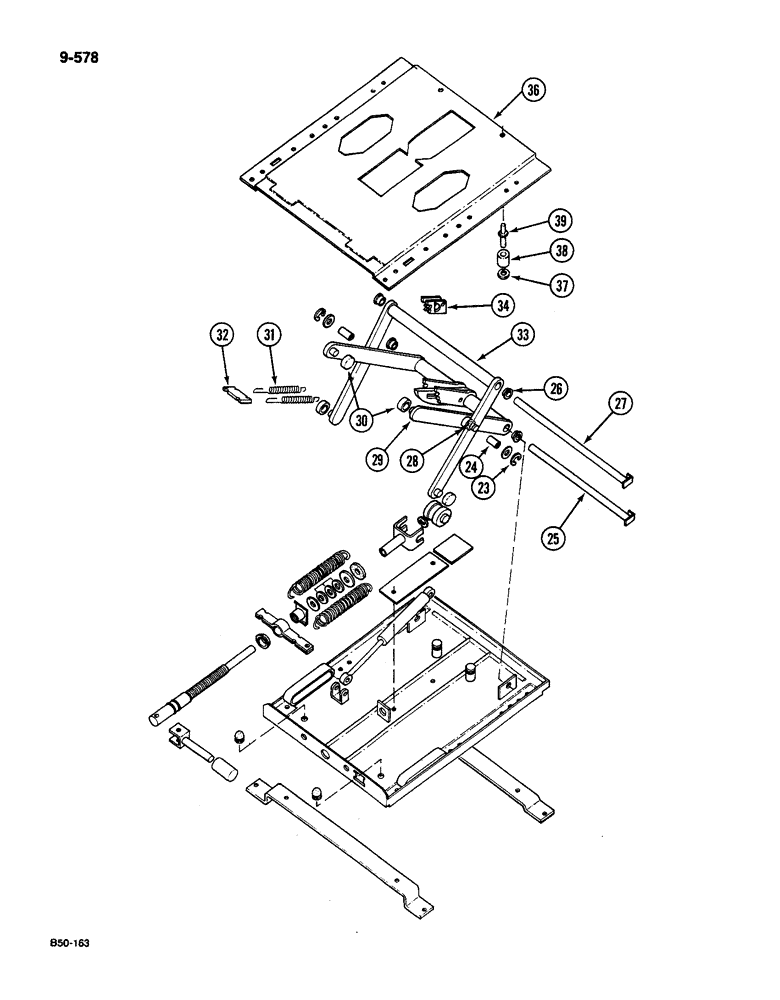

Запчасти Case IH 585 (9-578) - SEAT, LUXURY SUSPENSION PVC COVERED, GRAMMER, WITH FORE AND AFT AND HEIGHT ADJUSTMENT, CONTD (09) - CHASSIS/ATTACHMENTS

23

934901R1

E-RING,M10

RING retaining, external, 7.63 mm

2шт.

905174R1

WASHER,M13

flat, 13 mm

2шт.

24

3225360R1

BUSHING

2шт.

25

3225305R1

PIN

1шт.

26

3225373R1

BUSHING

4шт.

27

3225304R1

PIN

1шт.

28

3225365R1

WASHER

2шт.

29

3125781R1

FRAME

inside scissors

1шт.

30

3225320R1

PIN

1шт.

3225310R1

ROLLER

4шт.

31

3225307R1

SPRING

2шт.

32

3225306R1

RETAINER

spring

1шт.

33

3125780R1

FRAME

outside scissors

1шт.

34

3225303R1

RATCHET

CAM height adjustment

2шт.

35

3125994R91

BASE

PLATE suspension, lower

1шт.

36

3125991R1

FRAME

PLATE suspension, upper

1шт.

934676R1

LOCK WASHER,M8

WASHER lock, 8mm

4шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

37

3129000R1

WASHER

2шт.

38

3229885R1

STOP

PAD rubber

2шт.

39

3125993R1

RETAINER

PIN

2шт.
