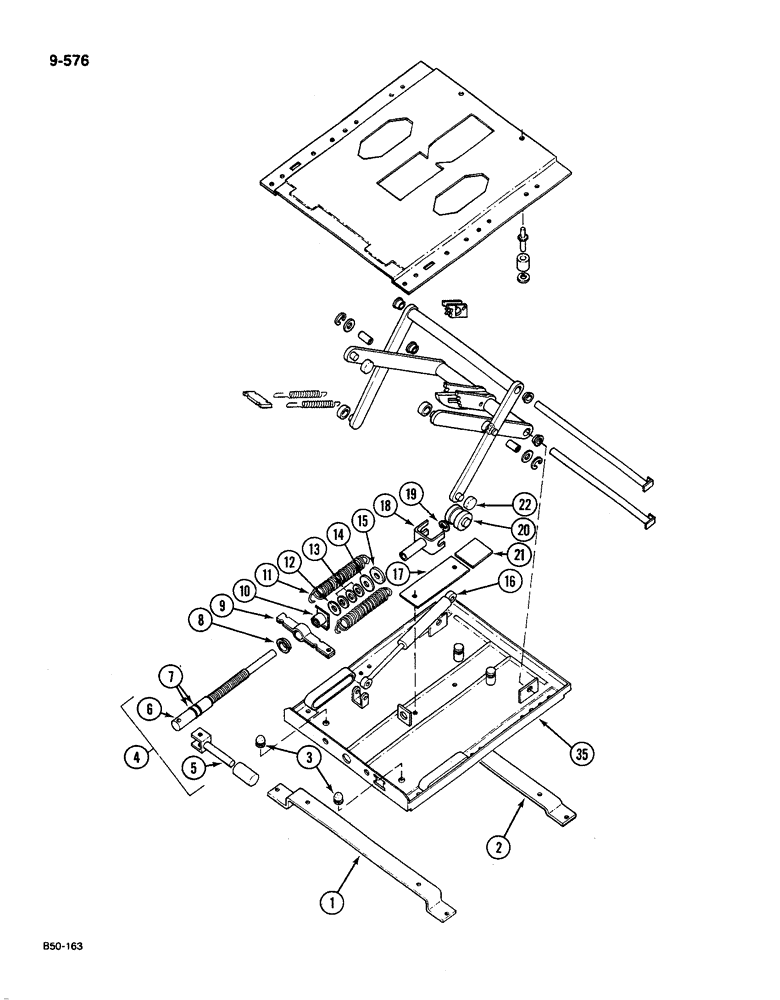

Запчасти Case IH 585 (9-576) - SEAT, LUXURY SUSPENSION PVC COVERED, GRAMMER, WITH FORE AND AFT AND HEIGHT ADJUSTMENT (09) - CHASSIS/ATTACHMENTS

3121423R92

SEAT

suspension (PVC), Includes: Ref.1-22

1шт.

1

3125783R1

BRACKET

1шт.

934679R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 4.6

hex, M8 x 20 mm

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

2шт.

2

3125782R1

BRACKET

1шт.

931860R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 8.8

hex socket, M8 x 20 mm

2шт.

905451R1

WASHER

lock, 8 mm

2шт.

3

3134835R1

BUMPER

rubber

2шт.

4

3225295R91

SPINDLE

adjustable, complete, Includes: Ref. 5-6

1шт.

3223481R1

HANDLE

KNOB

1шт.

5

3223482R1

FORK

ROD adjusting

1шт.

934903R1

GROOVED PIN,M5 x 28

PIN

1шт.

6

3225294R1

PIN

SPINDLE pin

1шт.

7

3225323R1

O-RING

rubber (red)

1шт.

7

3225324R1

O-RING

rubber (black)

1шт.

8

3225297R1

BUSHING

1шт.

9

3125778R1

RETAINER

spring

1шт.

10

3225317R1

NUT,Weld, M12

includes plate

1шт.

11

3125779R1

SPRING

2шт.

12

934673R1

WASHER,M8.4 x 25 x 2

plain, M8

1шт.

13

3225318R1

BEARING, BALL

BEARING needle

1шт.

14

3225319R1

WASHER

1шт.

15

3224298R1

CAP

WASHER rubber

1шт.

16

3225300R1

SHOCK ABSORBER

ABSORBER shock

1шт.

3225345R1

BOLT,Hex

PIN

2шт.

30338R1

CIRCLIP,M5

RING retaining, external, 5 mm

2шт.

17

3225316R1

SUPPORT

BRACKET

1шт.

3225327R1

RIVET

2шт.

18

3225302R1

FORK

1шт.

19

30338R1

CIRCLIP,M5

RING retaining, external, 5 mm

2шт.

20

3225301R1

NEEDLE BEARING

treble

1шт.

21

3224314R1

PLATE

rubber

1шт.

22

3225310R1

ROLLER

4шт.
