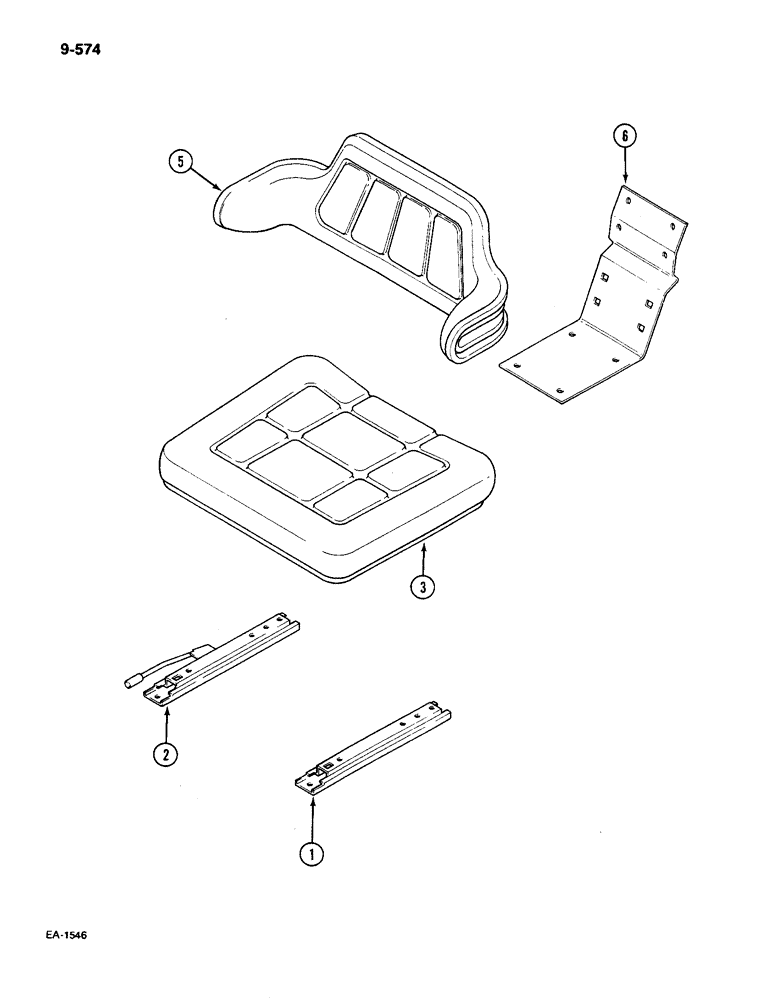

Запчасти Case IH 585 (9-574) - SEAT, LUXURY SUSPENSION PVC COVERED, GRAMMER WITH FORE AND AFT AND HEIGHT ADJUSTMENT (09) - CHASSIS/ATTACHMENTS

3121423R92

SEAT

suspension (PVC)

1шт.

3123562R1

SPACER

seat

4шт.

3123563R1

SCREW

5/16 NC x 1-1/2 inch

4шт.

3123564R1

LOCK WASHER

WASHER lock, 5/16 inch, Includes: Ref. 1-6

4шт.

1

3224898R1

SLIDE GUIDE

RAIL adjustable

1шт.

934895R1

SCREW,Slotted Cheese, M8 x 16mm, Cl 8.8

pan head, M8 x 16 mm, rail to plate

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

rail to plate Serr, M8.2

1шт.

934676R1

LOCK WASHER,M8

WASHER lock, 8mm, rear, rail to plate

1шт.

AP00104574

SCREW

pan head, M8 x 20 mm, rail to seat (Replaces 934894R1)

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

rail to seat Serr, M8.2

2шт.

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

flat, M10, rail to plate

2шт.

905424R1

WASHER,M10.5 x 25 x4

flat, 10 mm, rail to seat

2шт.

2

3224897R1

RAIL

adjustable, with handle

1шт.

934895R1

SCREW,Slotted Cheese, M8 x 16mm, Cl 8.8

pan head, M8 x 16 mm, rail to plate

2шт.

934875R1

WASHER

front, Serial Range: rail-plate

1шт.

AP00104574

SCREW

pan head, M8 x 20 mm, Serial Range: rail-seat

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

rail to seat Serr, M8.2

2шт.

934674R1

WASHER,M10.5 x 30 x 2.5

flat, M10, rail to seat

2шт.

905424R1

WASHER,M10.5 x 25 x4

flat, 10 mm, rail to seat

1шт.

3

3125997R1

CUSHION, SEAT

CUSHION seat (PVC)

1шт.

3125992R1

NUT

(Replaces 3125922R1)

4шт.

5

3125996R1

BACKREST

CUSHION back (PVC)

1шт.

6

3125995R1

FRAME

seat

1шт.
