(9-572) - SEAT, DELUXE SUSPENSION, WITH CAB, WITH FORE AND AFT AND HEIGHT ADJUSTMENT, BOSTROM 156108, CONTD

Запчасти Case IH 585 (9-572) - SEAT, DELUXE SUSPENSION, WITH CAB, WITH FORE AND AFT AND HEIGHT ADJUSTMENT, BOSTROM 156108, CONTD (09) - CHASSIS/ATTACHMENTS

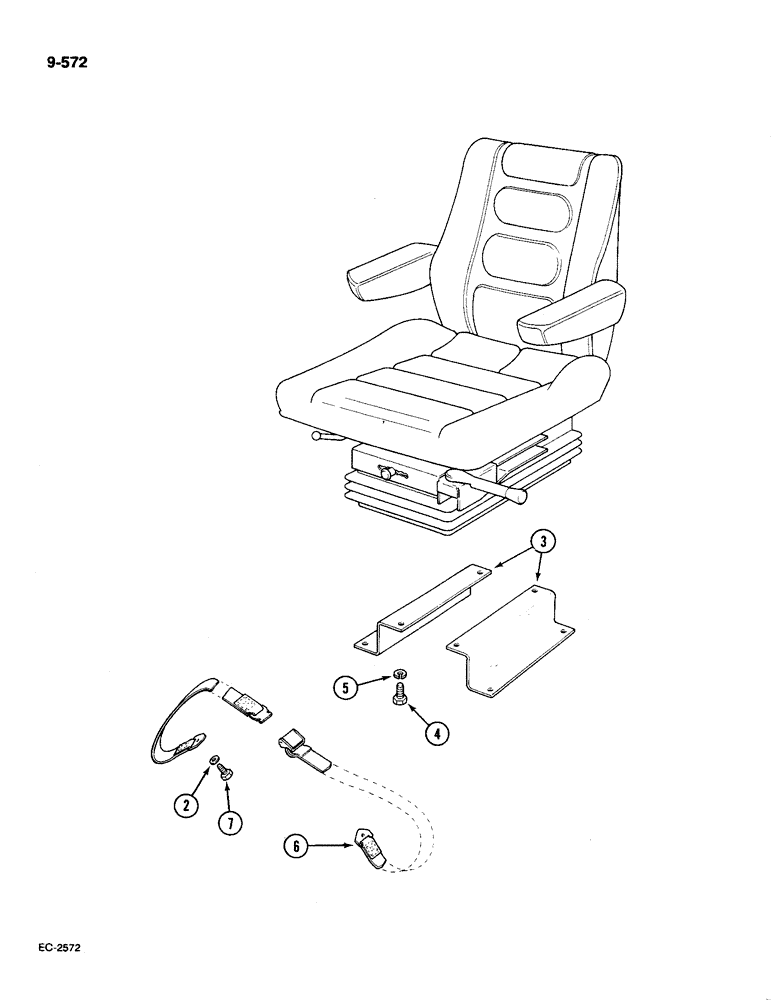

Схема запчастей Case IH 585 - (9-572) - SEAT, DELUXE SUSPENSION, WITH CAB, WITH FORE AND AFT AND HEIGHT ADJUSTMENT, BOSTROM 156108, CONTD (09) - CHASSIS/ATTACHMENTS
5
3
7
2
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1977764C1

SEAT BACK

KIT upper assembly

1шт.

NSS

NOT SOLD SEPARAT

COVER back

1шт.

NSS

NOT SOLD SEPARAT

COVER seat

1шт.

NSS

NOT SOLD SEPARAT

FOAM back

1шт.

NSS

NOT SOLD SEPARAT

FOAM seat

1шт.

NSS

NOT SOLD SEPARAT

FRAME seat assembly

1шт.

NSS

NOT SOLD SEPARAT

CLIP spring

2шт.

NSS

NOT SOLD SEPARAT

BAR trim

2шт.

NSS

NOT SOLD SEPARAT

RING hog

3шт.

NSS

NOT SOLD SEPARAT

ROD pouch

1шт.

NSS

NOT SOLD SEPARAT

CLIP

15шт.

NSS

NOT SOLD SEPARAT

PLATE adapter

1шт.

NSS

NOT SOLD SEPARAT

SCREW, M6 x 12 mm

4шт.

NSS

NOT SOLD SEPARAT

WASHER lock, M6

4шт.

1977765C1

KIT

slide rails

1шт.

NSS

NOT SOLD SEPARAT

RAIL slide

2шт.

NSS

NOT SOLD SEPARAT

SCREW M6 x 16 mm

4шт.

NSS

NOT SOLD SEPARAT

WASHER lock, M6

4шт.

NSS

NOT SOLD SEPARAT

WASHER plain

4шт.

NSS

NOT SOLD SEPARAT

SCREW, M8 x 20 mm

4шт.

934309R1

LOCK WASHER,M8

WASHER lock, M8

4шт.

NSS

NOT SOLD SEPARAT

WASHER plain

2шт.

1977766C1

KIT

arm rests

1шт.

NSS

NOT SOLD SEPARAT

ARMREST

2шт.

NSS

NOT SOLD SEPARAT

SCREW M8 x 60 mm

4шт.

NSS

NOT SOLD SEPARAT

WASHER lock, M8

4шт.

NSS

NOT SOLD SEPARAT

SPACER

4шт.

1977767C1

KIT

mounting brackets

1шт.

97289C1

SUPPORT

BRACKET

2шт.

NSS

NOT SOLD SEPARAT

SCREW, M8 x 20 mm

4шт.

934309R1

LOCK WASHER,M8

WASHER lock, M8

4шт.

1977768C1

KIT

trim service package

1шт.

NSS

NOT SOLD SEPARAT

COVER back

1шт.

NSS

NOT SOLD SEPARAT

COVER seat

1шт.

NSS

NOT SOLD SEPARAT

CLIP

15шт.

NSS

NOT SOLD SEPARAT

ROD pouch

1шт.

2

120389

WASHER,7/16"

0.50 x 1.25 x 0.064 inch

2шт.

3

97289C1

SUPPORT

BRACKET

2шт.

4

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

hex, M8 x 20 mm, grade 8.8

4шт.

5

934309R1

LOCK WASHER,M8

WASHER lock, M8

4шт.

6

537339R1

SAFETY BELT

SAFETY BELT, 2"

1шт.

7

86509452

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

hex, 7/16 x 1 inch, type 5

2шт.
