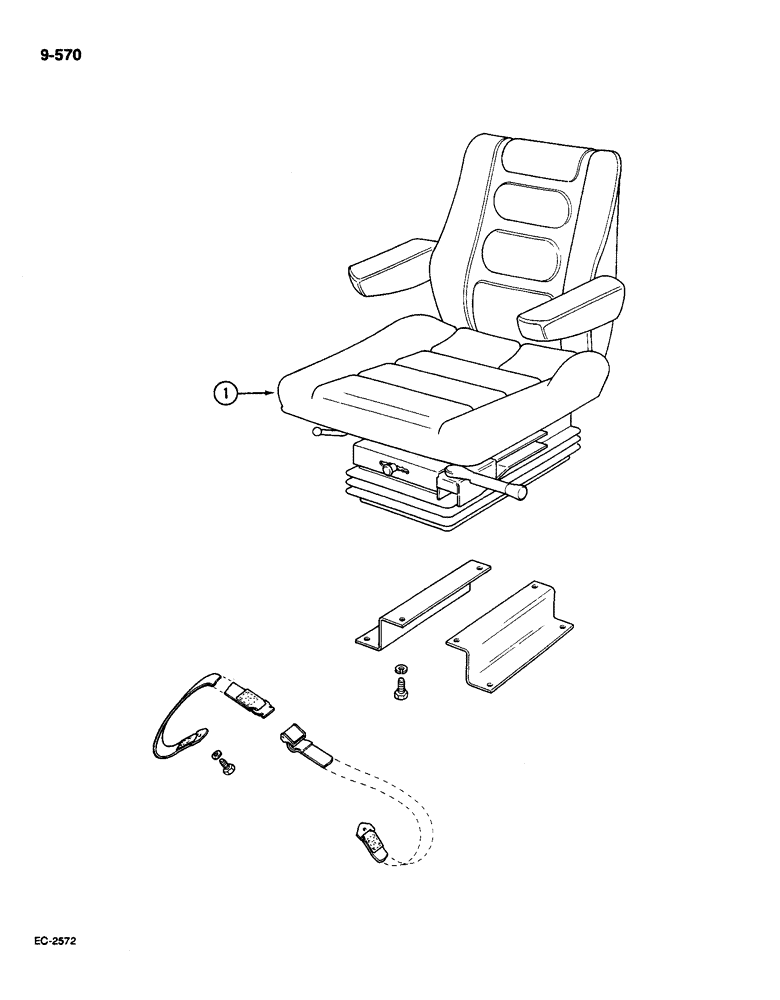

Запчасти Case IH 585 (9-570) - SEAT, DELUXE SUSPENSION, WITH CAB, WITH FORE AND AFT AND HEIGHT ADJUSTMENT, BOSTROM 156108 (09) - CHASSIS/ATTACHMENTS

1

97288C1

SEAT ASSY.

SEAT suspension, deluxe

1шт.

1977757C1

KIT

suspension, cover

1шт.

A49658

FASTENER

CLIP canoe

1шт.

NSS

NOT SOLD SEPARAT

COVER suspension

1шт.

NSS

NOT SOLD SEPARAT

CLIP

1шт.

1977758C1

SUSPENSION

KIT suspension, complete

1шт.

1977759C1

KIT

suspension, weight adjuster

1шт.

3123322R1

THRUST WASHER

WASHER thrust

1шт.

3123324R1

TRUNNION

adjuster (small)

1шт.

3123326R1

NUT

clamp

1шт.

3123327R1

HANDLE

complete

1шт.

NSS

NOT SOLD SEPARAT

STUD adjuster

1шт.

NSS

NOT SOLD SEPARAT

SPACER

1шт.

NSS

NOT SOLD SEPARAT

SPACER

1шт.

538570R1

GEAR

1шт.

1977760C1

KIT

roller assembly

1шт.

3123316R1

BUSHING

BEARING

1шт.

NSS

NOT SOLD SEPARAT

PIN, ROLL

2шт.

NSS

NOT SOLD SEPARAT

BEARING

4шт.

NSS

NOT SOLD SEPARAT

BEARING

1шт.

3123318R1

PIVOT PIN

PIN pivot

2шт.

3220539R1

BUSHING

ROLLER

4шт.

3123321R1

PIVOT PIN

PIN pivot

2шт.

43362

NUT,M8 x 1.25, Cl 10

lock, M8 x 1.25 mm

2шт.

1977761C1

KIT

suspension, height adjuster

1шт.

3123309R1

BUTTON

KNOB slide

1шт.

3220537R1

SPRING

slider

1шт.

3220548R1

SCREW

BOLT hex, M6 x 25 mm

1шт.

1977762C1

KIT

suspension, damper assembly

1шт.

NSS

NOT SOLD SEPARAT

WASHER

2шт.

NSS

NOT SOLD SEPARAT

PIN headed

2шт.

3123329R1

SHOCK ABSORBER

DAMPER complete

1шт.

1977763C1

KIT

suspension, bump stops

1шт.

3123308R1

BUMPER

BUTTON, bumper

2шт.

3220516R1

STOP

BUMPER rubber

1шт.
