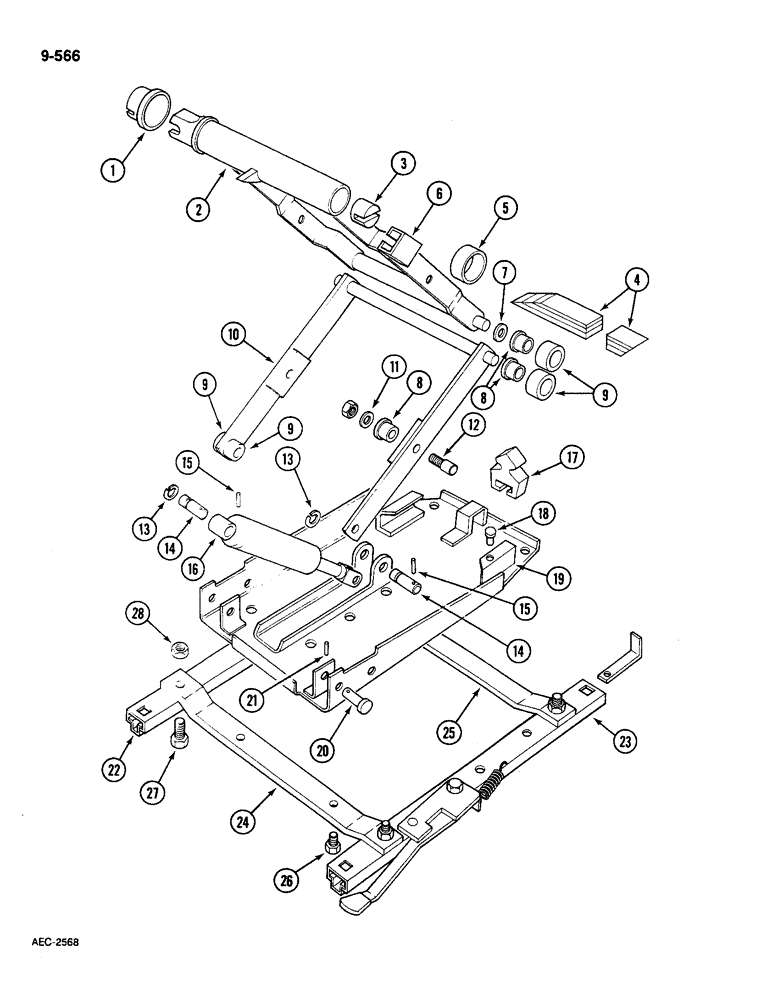

Запчасти Case IH 585 (9-566) - SEAT, DELUXE SUSPENSION, WITHOUT CAB, WITH FORE AND AFT HEIGHT ADJUSTMENT, BOSTROM 72936 (09) - CHASSIS/ATTACHMENTS

3121421R92

SEAT

deluxe suspension (PVC), complete, Includes: Ref. 1-28

1шт.

1

3123316R1

BUSHING

BEARING

1шт.

2

3123315R1

LEVER

centre

1шт.

3

3220529R1

RETAINER

1шт.

4

3129922R1

BAR

torsion (Set of 5)

1шт.

5

3109331R1

FLANGED BEARING

BEARING

1шт.

6

3220519R1

STOP

limit

2шт.

7

538565R1

WASHER

4шт.

8

3123319R1

BUSHING

BEARING

8шт.

9

3123320R1

ROLLER BEARING

4шт.

10

3220517R1

ARM

LEVER outer

1шт.

11

934309R1

LOCK WASHER,M8

WASHER lock, M8

2шт.

12

3123321R1

PIVOT PIN

PIN pivot

2шт.

13

934309R1

LOCK WASHER,M8

WASHER lock, M8

2шт.

14

538578R1

PIN

damper

2шт.

15

538579R1

PIN, ROLL

PIN roll

2шт.

16

3123329R1

SHOCK ABSORBER

DAMPER complete

1шт.

17

3220516R1

STOP

BUMPER rubber

1шт.

18

3123308R1

BUMPER

BUTTON bumper

2шт.

19

3220524R1

PLATE

base

1шт.

20

3123318R1

PIVOT PIN

PIN pivot

2шт.

21

3125165R1

PIN, ROLL

PIN roll, 3 mm

2шт.

22

3123304R1

RAIL

slide, right free

1шт.

23

3123303R1

RAIL

slide, left adjustable

1шт.

24

3123305R1

BRACKET

STRAP mounting, front

1шт.

25

3123306R1

BRACKET

STRAP mounting, rear

1шт.

26

931237R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 8.8

countersunk hex socket, M8 x 20 mm, class 8.8

4шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10 (Replaces 934109R1)

4шт.

112723

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

27

30001R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

hex, M8 x 16 mm, class 10.9

3шт.

28

43362

NUT,M8 x 1.25, Cl 10

lock, M8 x 1.25 mm

4шт.
