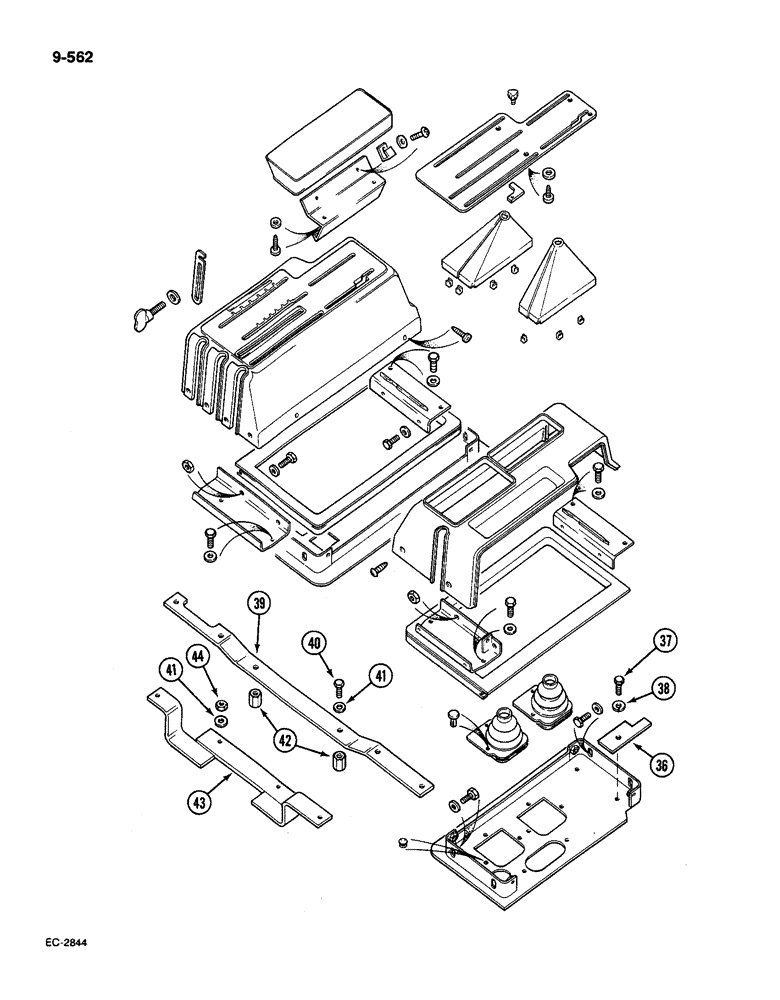

Запчасти Case IH 585 (9-562) - CONTROL LEVER COVERS AND SUPPORTS, CAB, CONTD (09) - CHASSIS/ATTACHMENTS

36

1331119C1

PLATE

1шт.

37

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

hex, 5/16 NC x 1 inch, class 5

1шт.

38

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

39

3129355R3

SUPPORT

rear

1шт.

40

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

hex, 3/8 NC x 3/4 inch, grade 5

2шт.

41

933587R1

WASHER,M12 x 24 x 2.5

flat, 13 mm

4шт.

42

3129791R1

SPACER

rear support

2шт.

43

3129351R2

SUPPORT ASSY.

SUPPORT front

1шт.

44

102635

NUT,3/8"-16, G5

2шт.
