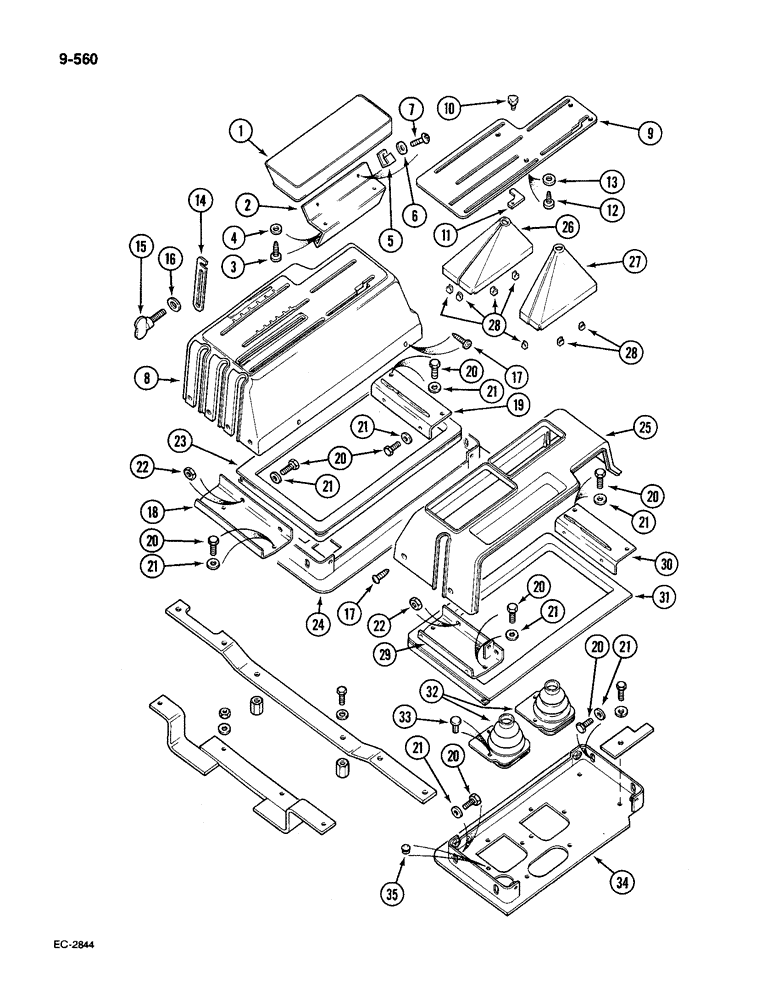

Запчасти Case IH 585 (9-560) - CONTROL LEVER COVERS AND SUPPORTS, CAB (09) - CHASSIS/ATTACHMENTS

1

1330897C1

ARMREST

right, Includes: Ref. 2-4

1шт.

2

1500435C1

SUPPORT

BRACKET support

1шт.

3

1500436C1

SCREW,Cross Rec Pan Hd, M6 x 20mm

pan head cross recess

2шт.

4

30325R1

WASHER,M6 x 13 x 2, HT

- M6 x 13 x 2, HT

2шт.

5

704445R1

NUT

retainer, 1/4 inch NC

2шт.

5

3233707R1

SPRING NUT

spring, push on, Serial Range: (Optional-70445R1)

2шт.

6

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch (Use with 704445R1)

2шт.

6

3404266R1

BUSHING

(Use with 3233707R1)

2шт.

7

160556

SCREW,Cross Pan Hd, 1/4" - 20 x 1"

Use with 704445R1 Cross Pan Hd, 1/4"-20 x 1"

2шт.

7

3233230R1

SELF-TAP SCREW,Oval Hd, M4.2 x 22

SCREW tapping, oval cross recess, 4.2 x 22 mm (Use with 3233707R1)

2шт.

8

1331015C1

COVER

console, right, Includes: Ref. 9-13

1шт.

9

1500367C1

PLATE

lever pattern, right

1шт.

10

1500369C1

KNOB

KNOB position stop control

1шт.

11

3129745R1

STOP

position control

1шт.

12

24365R1

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

SCREW tapping, pan head cross, No. 6-20 x 3/8 inch

6шт.

13

30289R1

WASHER,M4

type A, ZND M4

6шт.

14

99434C1

PLATE

lockout, auxiliary valve lever

1шт.

15

99972C1

SCREW,3/8" - 16 x 1 3/4"

wing, adjusting

1шт.

16

NLS

NO LONGER SERVICED

flat, 0.438 x 1.00 x 0.064 inch

1шт.

17

24407R1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Cross Pan Hd, 1/4" x 1/2"

14шт.

18

99438C1

SUPPORT

BRACKET front mounting, right console

1шт.

19

1500351C2

SUPPORT

BRACKET rear mounting, right console

1шт.

20

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

hex, M10 x 20 mm, class 8.8, ZND

16шт.

21

30282R1

WASHER,M10 x 20 x 2

plain, M10

16шт.

22

30284R1

NUT,M10, Cl 10

hex, M10, class 10

4шт.

23

3401382R1

SEAL

SEAL adaptor plate, left

1шт.

24

3129748R91

PLATE

adaptor, right

1шт.

25

1500370C91

COVER ASSY

PANEL console, left, Includes: Ref. 26-28

1шт.

26

1500373C1

BELLOWS

BOOT range lever

1шт.

27

1500372C1

BELLOWS

BOOT speed lever

1шт.

28

1500374C1

CLIP,ELECTRICAL

CLIP

14шт.

29

94391C2

SUPPORT

BRACKET mounting, front left

1шт.

30

1500346C2

SUPPORT

BRACKET mounting rear, left console

1шт.

31

98018C1

SEAL

adaptor plate, right

1шт.

32

94377C1

BOOT

protective, speed and range levers, speed and range levers

2шт.

33

1289539C1

FASTENER

plastic

6шт.

34

94389C3

PLATE

adaptor, left

1шт.

35

716493R2

PLUG

3шт.
