(9-558) - DRAFT CONTROL LEVER HOUSING, CAB

Запчасти Case IH 585 (9-558) - DRAFT CONTROL LEVER HOUSING, CAB (09) - CHASSIS/ATTACHMENTS

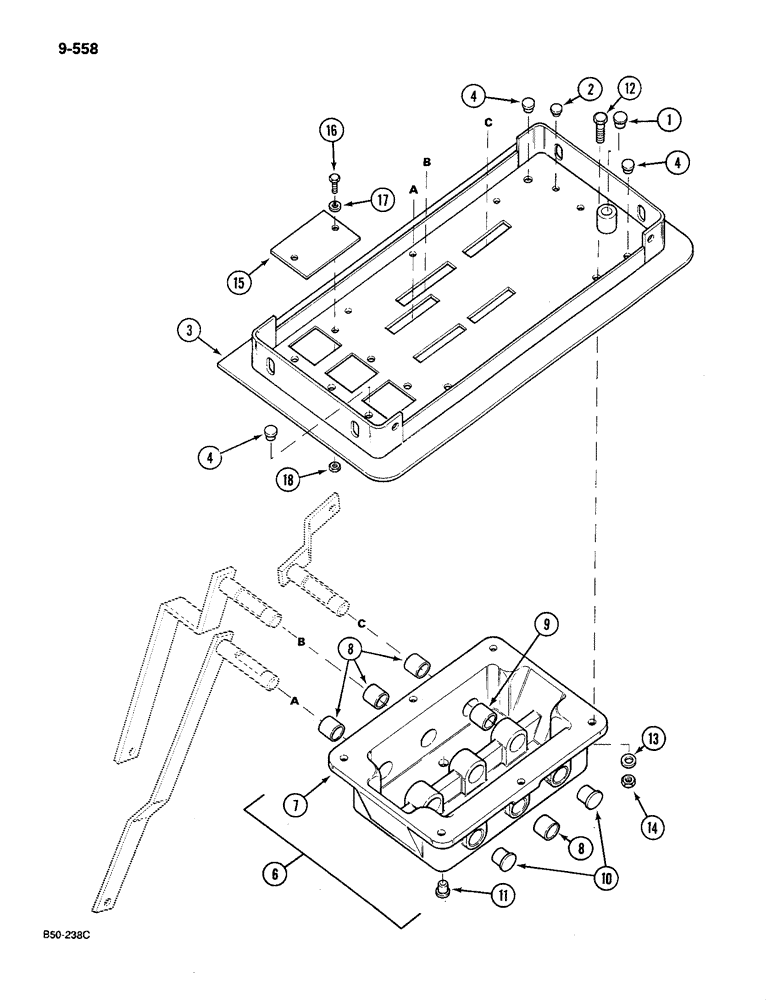

Схема запчастей Case IH 585 - (9-558) - DRAFT CONTROL LEVER HOUSING, CAB (09) - CHASSIS/ATTACHMENTS
8
10
16
17
7
11
12
13
1
18
9
2
15
4
3
6
8
4
14
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3401908R2

PLUG

A - 19.6 mm, B - 8 mm

1шт.

2

1328698C1

PLUG

7.2 mm diameter

1шт.

3

3129748R91

PLATE

adaptor, right

1шт.

4

716493R1

NO LONGER SERVICED

PLUG, 8.6 mm diameter

3шт.

6

3129732R91

HOUSING

control, complete, Includes: Ref. 7-11

1шт.

7

3129317R1

HOUSING

control

1шт.

8

3229641R1

BUSHING

4шт.

9

3129318R1

BUSHING

3шт.

10

3045397R1

PLUG

red cap

2шт.

11

1502026C1

PLUG

red cap

2шт.

12

930609R1

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

hex, M6 x 25 mm, grade 8.8

6шт.

13

933346R1

WASHER,M6 x 12 x 1.6

flat, 6.4 x 12.5 x 1.6 mm

6шт.

14

30281R1

NUT,M6, Cl 10

- hex, M6, class 10

6шт.

15

1500182C1

PLATE

retaining

3шт.

16

930105R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

hex, M6 x 20 mm, grade 8.8

6шт.

17

933833R1

LOCK WASHER,M6

WASHER lock, M6

6шт.

18

30281R1

NUT,M6, Cl 10

- hex, M6, class 10

6шт.
