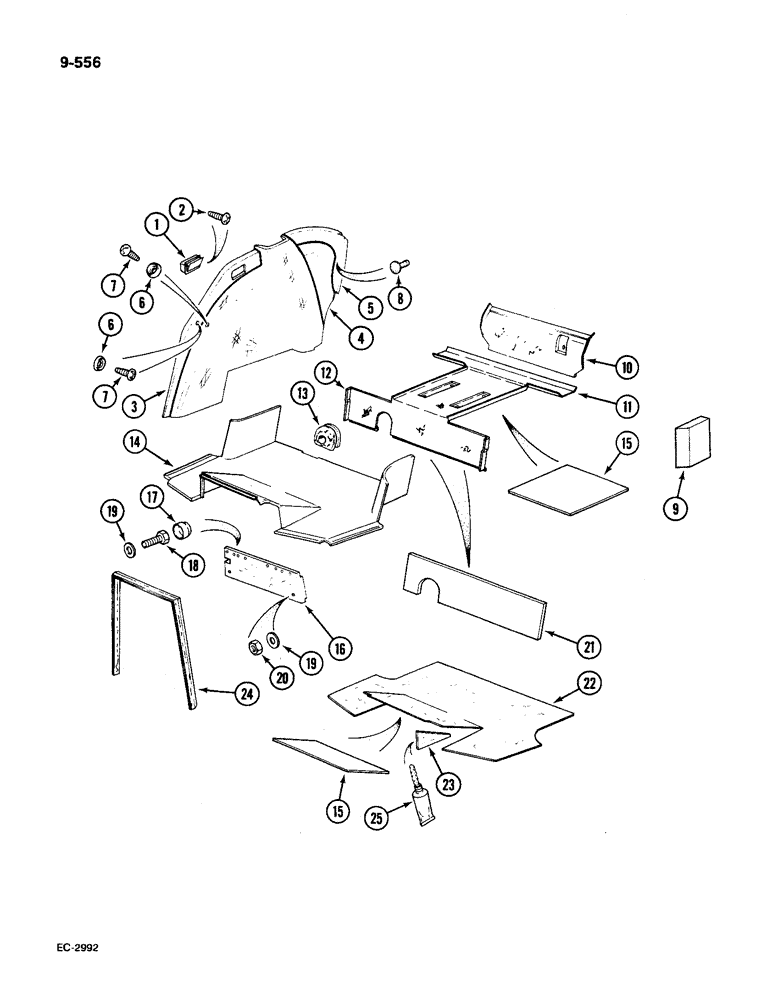

Запчасти Case IH 585 (9-556) - CAB OPERATOR COMPARTMENT COVERING (09) - CHASSIS/ATTACHMENTS

1330708C97

CAB

complete with air conditioning and trim, Includes: Ref. 1-9

1шт.

1

3399810R1

ASH TRAY

ASHTRAY

1шт.

2

3233378R1

SELF-TAP SCREW,Oval Hd, M4.2 x 19

SCREW tapping, oval head, 4.2 x 19 mm

2шт.

3

3404184R2

LINING

wheel housing front part, left

1шт.

3

3404185R2

LINING

wheel housing front part, right

1шт.

4

3404192R2

LINING

wheel housing centre part, left

1шт.

4

3404193R2

LINING

wheel housing centre part, right

1шт.

5

3404186R2

FENDER

LINING wheel housing rear part, left

1шт.

5

3404187R2

FENDER

LINING wheel housing rear part, right

1шт.

6

3234052R1

WASHER

cup

1шт.

7

3233378R1

SELF-TAP SCREW,Oval Hd, M4.2 x 19

SCREW tapping, oval head, 4.2 x 19 mm

1шт.

8

3404464R1

PLUG

rubber

4шт.

9

1502281C1

INSULATOR

'B' post

2шт.

10

3234959R1

INSULATOR

rear cover

1шт.

11

245894C2

MAT

seat deck, Includes: Ref. 12

1шт.

12

245712C1

MAT

seat deck front

1шт.

13

3401113R1

GROMMET

differential

1шт.

14

3234965R1

MAT

front floor

1шт.

15

245888C1

LINING

SHEET insulation

1шт.

16

1536053C1

PADDING

INSULATOR bulkhead, steering support (Replaces 3402100R1)

1шт.

17

3221725R1

CAP

hex, M6

6шт.

18

934719R1

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

hex, M6 x 25 mm, class 8.8

6шт.

19

934850R1

WASHER

flat, M6

12шт.

20

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

M6, zinc plated, class 8

6шт.

21

1280319C1

LINING

INSULATOR front of seat deck

1шт.

22

3405010R1

MAT

insulation lining, front floor

1шт.

23

3399893R1

INSULATOR

STRIP insulator, left

1шт.

23

3399894R1

INSULATOR

STRIP insulator, right

1шт.

24

3401114R1

SEAL

front, steering support

1шт.

25

1500876C1

SEALANT

ADHESIVE clear

1шт.
