Запчасти Case IH 585 (9-554) - FENDERS, WITH CAB (09) - CHASSIS/ATTACHMENTS

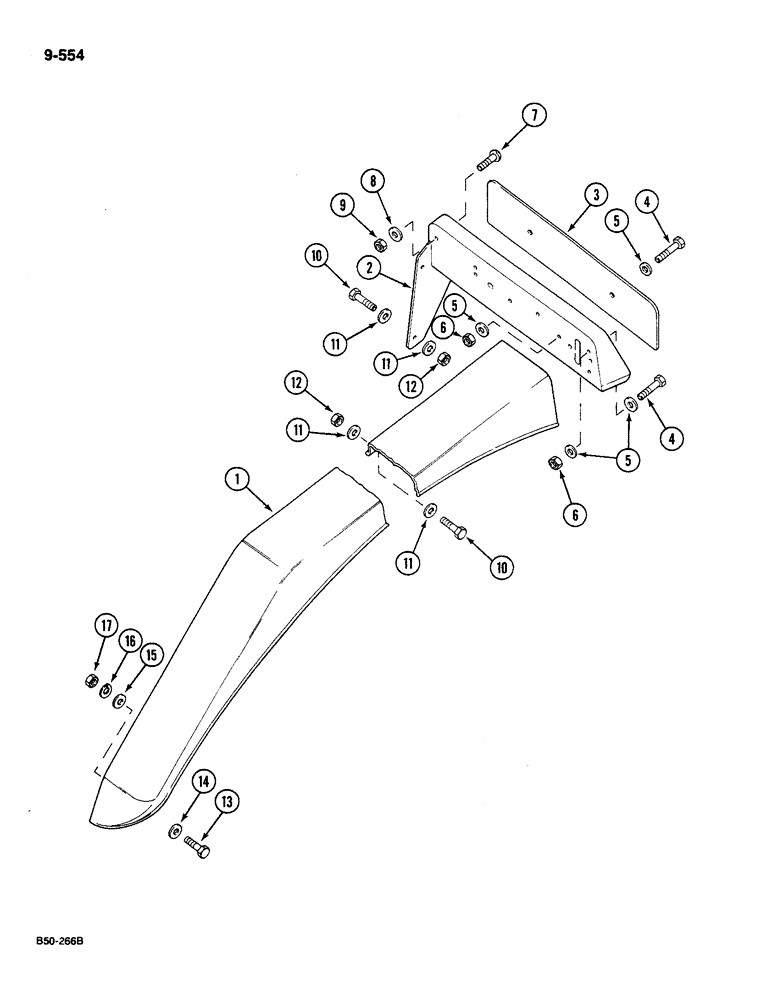

Схема запчастей Case IH 585 - (9-554) - FENDERS, WITH CAB (09) - CHASSIS/ATTACHMENTS
3
5
1
4
12
13
2
16
5
10
11
17
9
7
11
15
8
10
4
6
14
6
11
5
11
12

Артикул

Название

Примечание

Количество

1

1971086C1

FENDER

extension, right (Replaces 98101C2)

1шт.

1

98101C2

FENDER

extension, right

1шт.

1

1971085C1

FENDER

extension, left (Replaces 98102C2)

1шт.

1

98102C2

FENDER

extension, left

1шт.

2

1971088C1

HOLDER

HOUSING tail light, right (Used with 1971086C1)

1шт.

2

98103C2

HOUSING

tail light, right (Used with 98101C2)

1шт.

2

1971087C1

HOLDER

HOUSING tail light, left (Used with 1971085C1)

1шт.

2

98104C2

HOUSING

tail light, left (Used with 98102C2)

1шт.

3

3404867R2

COVER

COVR right (Used with 98103C2)

1шт.

3

3404866R2

COVER

left (Used with 98104C2)

1шт.

4

934876R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

(Used with housings 98103C2 and 98104C2) Hex, M6 x 20, 8.8

8шт.

5

3145213R1

WASHER

16шт.

6

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

M6, zinc plated, class 8

8шт.

7

1971121C1

SCREW

cross recess countersunk, M6 x 20 mm, black (Used with housings 1971088C1 and 1971087C1)

10шт.

8

3145213R1

WASHER

10шт.

9

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

M6, zinc plated, class 8

10шт.

10

934876R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

18шт.

11

3145213R1

WASHER

36шт.

12

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

M6, zinc plated, class 8

18шт.

13

934719R1

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

hex, M6 x 25 mm, class 8.8

2шт.

14

3145213R1

WASHER

2шт.

15

934948R1

WASHER,M6

flat, 6.4 x 12.5 x 1.6 mm

2шт.

16

933833R1

LOCK WASHER,M6

WASHER lock, M6

2шт.

17

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

M6, zinc plated, class 8

2шт.

Выбрано товаров: 24
