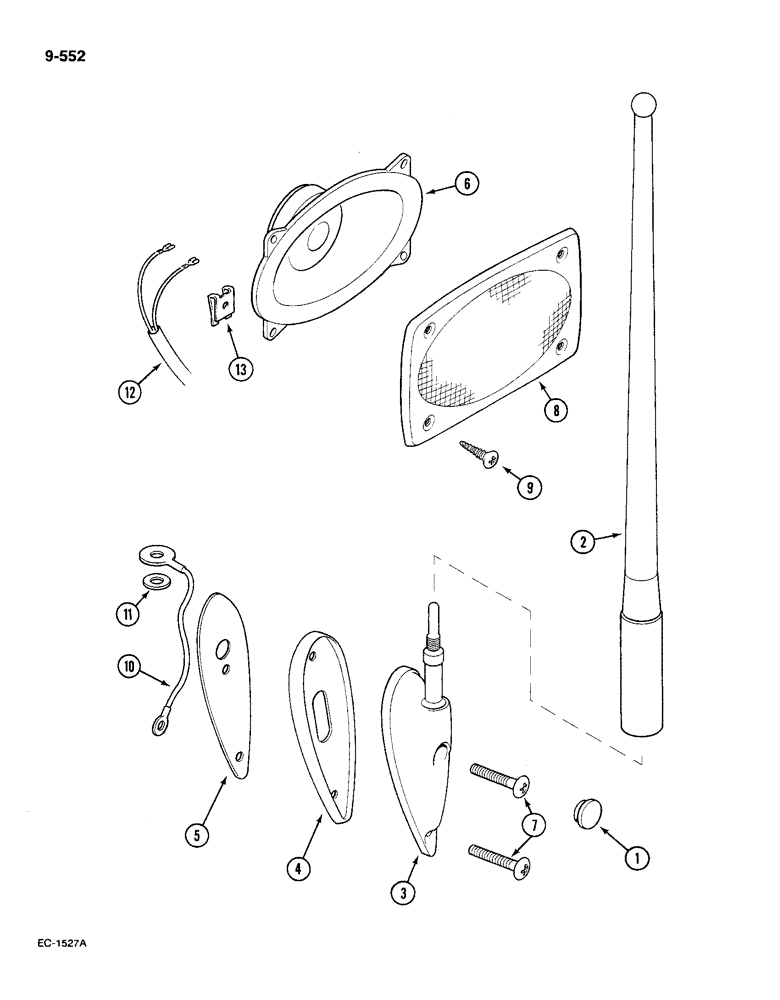

Запчасти Case IH 585 (9-552) - CAB RADIO, LOUDSPEAKER AND ANTENNA (09) - CHASSIS/ATTACHMENTS

1328313C92

KIT

PACKAGE loudspeaker and antenna, Includes: Ref. 1-13

1шт.

1328312C92

KIT

PACKAGE field, loudspeaker and antenna, Includes: Ref. 1-7

1шт.

1328311C91

ANTENNA

complete, Includes: Ref. 1-5

1шт.

1

1328286C1

CAP

1шт.

2

1328284C1

ANTENNA

rubber

1шт.

3

1328283C1

SUPPORT

SOCKET antenna

1шт.

4

1328287C1

SEAL

antenna

1шт.

5

1328288C1

SUPPORT

1шт.

6

1328282C1

SPEAKER

LOUDSPEAKER

2шт.

6

1332318C1

SPEAKER

audiovox, Serial Range: (Optional-1328282C1)

2шт.

6

1332319C1

SPEAKER

blaupunkt, Serial Range: (Optional-1328282C1)

2шт.

7

905733R1

SELF-TAP SCREW,Oval Hd, M4.2 x 32

SCREW tapping, oval head cross, 4.2 x 32 mm

2шт.

1328300C1

INSTRUCTION

TEMPLATE antenna mounting (not illustrated)

1шт.

8

1332317C1

GRILLE

speaker, audiovox (set of 2 parts)

1шт.

8

1328281C2

GRILLE

speaker, phillips (set of 2 parts), Serial Range: (Optional-1332317C1)

1шт.

9

905732R1

SELF-TAP SCREW,Oval Hd, M4.2 x 25

SCREW tapping, oval head, 4.2 x 25mm

8шт.

10

1328285C1

CABLE

antenna ground

1шт.

11

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

1шт.

12

1328289C1

HARNESS

CABLE loudspeaker

1шт.

13

3234214R1

SPRING NUT

spring push-on

8шт.

1328314C1

TEMPLATE loudspeaker mounting (not illustrated)

1шт.

1332277C1

HARNESS

CABLE speaker (not illustrated)

1шт.

1964760C1

PACKAGE

KIT AUDIOVOX radio

1шт.

245344C91

RADIO

AM

1шт.

245160C91

RADIO

AM/FM with clock

1шт.

84067C91

RADIO

AM/FM cassette, with clock

1шт.
