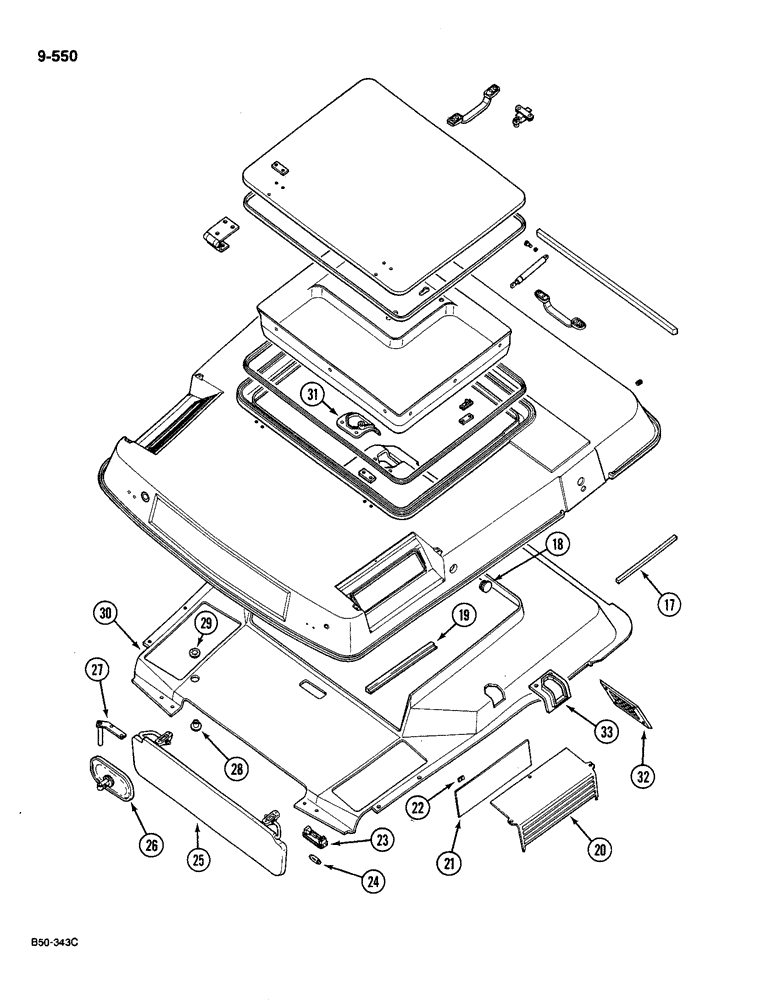

Запчасти Case IH 585 (9-550) - CAB, ROOF FRAME, CONTD (09) - CHASSIS/ATTACHMENTS

17

3402920R2

SEAL

STRIP roof, 440 mm

2шт.

18

3233692R2

PLUG

rubber

2шт.

19

1280448C1

SEAL

SEAL cab recirculation, 280 mm

2шт.

20

3233568R2

SIEVE

GRILLE cab recirculation

2шт.

3233278R1

SCREW

tapping, oval head, 4.2 x 13 mm

8шт.

21

3234118R2

FILTER SCREEN

SCREEN cab recirculation

2шт.

22

3234041R1

SPRING NUT

NUT lock

8шт.

23

3405561R1

INTERIOR LIGHT

LIGHT courtesy, Includes: Ref. 24

1шт.

24

710196R1

BULB,C5W, 12V, 5W

Festoon C11, 12Vm 5W

1шт.

25

3234218R2

VISOR, SUN

VISOR sun

1шт.

3233230R1

SELF-TAP SCREW,Oval Hd, M4.2 x 22

SCREW tapping, oval cross recess, 4.2 x 22 mm

4шт.

3234214R1

SPRING NUT

spring push-on

4шт.

26

NSS

NOT SOLD SEPARAT

NOT USED THIS APPLICATION

1шт.

27

NSS

NOT SOLD SEPARAT

NOT USED THIS APPLICATION

1шт.

28

3234399R4

BUSHING

PLUG

1шт.

29

3234395R1

PUSH-ON NUT

WASHER lock

1шт.

30

98105C3

INSULATOR

LINING roof (Replaces 1332686C1)

1шт.

3233277R1

SELF-TAP SCREW,Flat Hd, M4.2 x 13

4шт.

3233230R1

SELF-TAP SCREW,Oval Hd, M4.2 x 22

SCREW tapping, oval cross recess, 4.2 x 22 mm

1шт.

3233278R1

SCREW

tapping, oval head, 4.2 x 13 mm

8шт.

3233378R1

SELF-TAP SCREW,Oval Hd, M4.2 x 19

SCREW tapping, oval head, 4.2 x 19 mm

1шт.

3234042R1

SPRING NUT

lock spring

1шт.

3234191R1

SPRING NUT

lock

1шт.

3234214R1

SPRING NUT

spring push-on

1шт.

3234052R1

WASHER

cup

1шт.

3402617R1

CUP WASHER

1шт.

3404266R1

BUSHING

1шт.

31

3234111R2

COVER

blanking

1шт.

3233277R1

SELF-TAP SCREW,Flat Hd, M4.2 x 13

2шт.

3234214R1

SPRING NUT

spring push-on

2шт.

32

1328281C1

GRILLE

speaker, phillips (set of 2 parts)

2шт.

3233646R1

SELF-TAP SCREW,Oval Hd, M4.2 x 19

SCREW tapping, oval head, 4.2 x 19 mm

2шт.

3233421R1

WASHER,M13 x 30 x 6

flat, 13 mm, Includes: Ref. 33

2шт.

33

1330715C2

COVER

blanking

2шт.

3233277R1

SELF-TAP SCREW,Flat Hd, M4.2 x 13

4шт.

1332687C1

STRIPPER PACKAGE

KIT roof hatch seal

1шт.

3093230R92

HATCH, ASSY.

HATCH roof complete

1шт.

1328329C2

SEAL

roof hatch

1шт.

89675C1

ADHESIVE

silicon 310 MI

1шт.

497061R2

MANUAL, OPERATORS

INSTUCTIONS fitting

1шт.
