(2-26) - AIR CLEANER, COOPERS, WITHOUT SAFETY ELEMENT

Запчасти Case IH 585 (2-26) - AIR CLEANER, COOPERS, WITHOUT SAFETY ELEMENT (02) - ENGINE

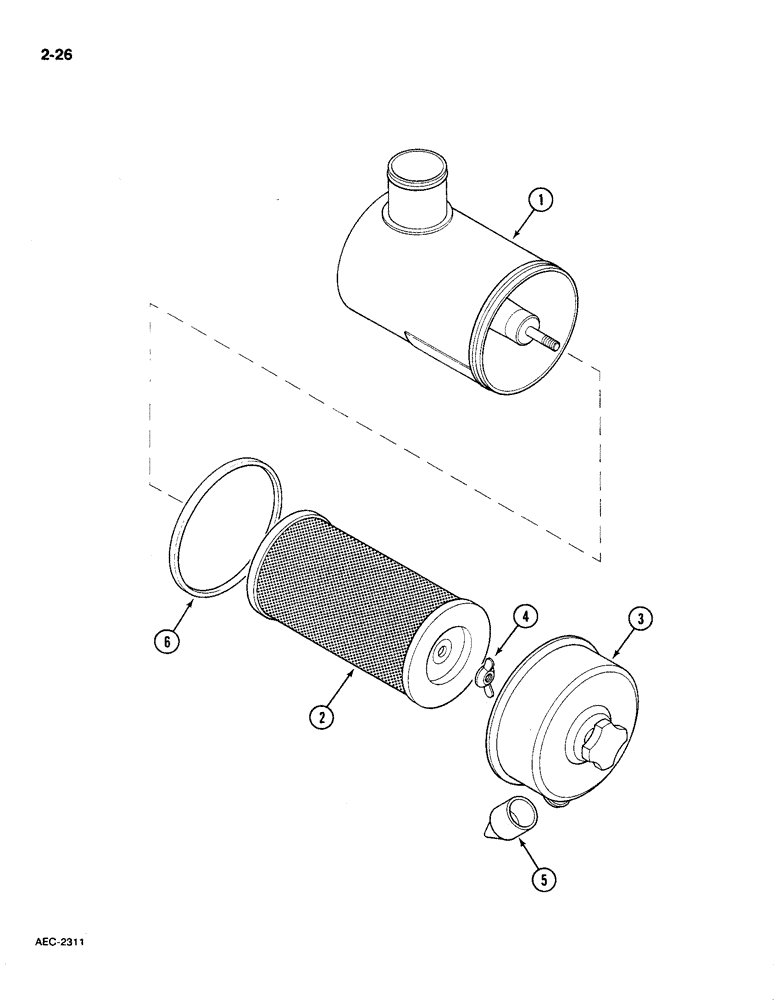

Схема запчастей Case IH 585 - (2-26) - AIR CLEANER, COOPERS, WITHOUT SAFETY ELEMENT (02) - ENGINE
6
3
4
2
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3125198R94

AIR CLEANER

CLEANER air, Coopers, Includes: Ref. 1-6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

3125199R2

AIR FILTER

ELEMENT primary

1шт.

3

3125200R2

COVER ASSY

COVER

1шт.

4

3124435R1

NUT

NUT wing, complete with gasket

1шт.

5

3124432R1

DUST VALVE

unloader

1шт.

6

1900091C1

GASKET

1шт.
