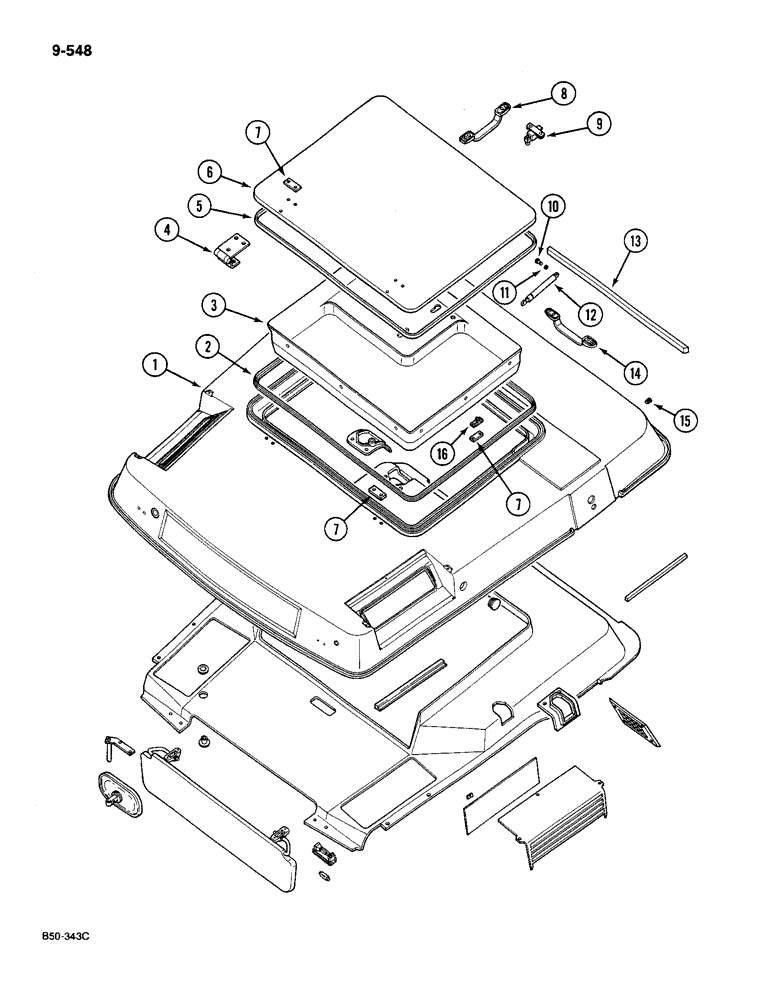

Запчасти Case IH 585 (9-548) - CAB, ROOF FRAME (09) - CHASSIS/ATTACHMENTS

1

98022C1

TOP

FRAME roof

1шт.

931829R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

6шт.

934309R1

LOCK WASHER,M8

WASHER lock, M8

6шт.

2

1328329C2

SEAL

roof hatch

1шт.

1332688C1

HATCH, ASSY.

HATCH roof complete, Includes: Ref. 3-6

1шт.

3

1332682C1

HATCH LINING

LINING hatch

1шт.

3233230R1

SELF-TAP SCREW,Oval Hd, M4.2 x 22

SCREW tapping, oval cross recess, 4.2 x 22 mm

19шт.

3234234R1

WASHER

3шт.

3234042R1

SPRING NUT

lock spring

5шт.

3234214R1

SPRING NUT

spring push-on

14шт.

3404266R1

BUSHING

3шт.

3126382R1

BUSHING

BLOCK boss

2шт.

4

1328160C1

HINGE

roof hatch

2шт.

3402573R1

SCREW,Hex Flat Hd, M6 x 12, 4.8

flat head, M6 x 12 mm

10шт.

832-10406

NUT,M6 x 1, Cl 8

LOCK, M6 x 1, Cl 8

2шт.

934948R1

WASHER,M6

flat, 6.4 x 12.5 x 1.6 mm

2шт.

5

82464C1

SEAL

roof hatch

1шт.

6

82456C2

HATCH

cab roof

1шт.

7

3233679R1

PLATE

GASKET gas spring anchor bracket

6шт.

8

3234209R1

HANDLE

2шт.

3233231R1

SELF-TAP SCREW,Pan Hd, M4.2 x 22

SCREW tapping, round head phillips, 4.2 x 22 mm

8шт.

933971R1

WASHER

flat, 4 mm

8шт.

9

3234190R1

LOCK

CATCH hatch retaining

1шт.

3233231R1

SELF-TAP SCREW,Pan Hd, M4.2 x 22

SCREW tapping, round head phillips, 4.2 x 22 mm

2шт.

905177R1

WASHER,M4.3 x 12 x 1

flat, 4 mm

1шт.

10

3234082R1

PIN

gas strut swivel

2шт.

11

3233681R1

SNAP RING

RING retaining

2шт.

12

3399422R3

GAS STRUT,225mm Extended, 165mm Compressed

STRUT gas filled

2шт.

3233294R1

LOCK PIN,M6 x 14, Slotted

PIN roll, 6 x 14 mm

2шт.

13

1280239C1

GASKET

1шт.

3233674R1

ADHESIVE

1шт.

14

3234209R1

HANDLE

2шт.

3233231R1

SELF-TAP SCREW,Pan Hd, M4.2 x 22

SCREW tapping, round head phillips, 4.2 x 22 mm

8шт.

933971R1

WASHER

flat, 4 mm

8шт.

15

3234212R2

PLUG

6шт.

16

3233680R3

CLEVIS

BRACKET gas spring anchor

2шт.

3234171R1

SCREW

hilo

4шт.
