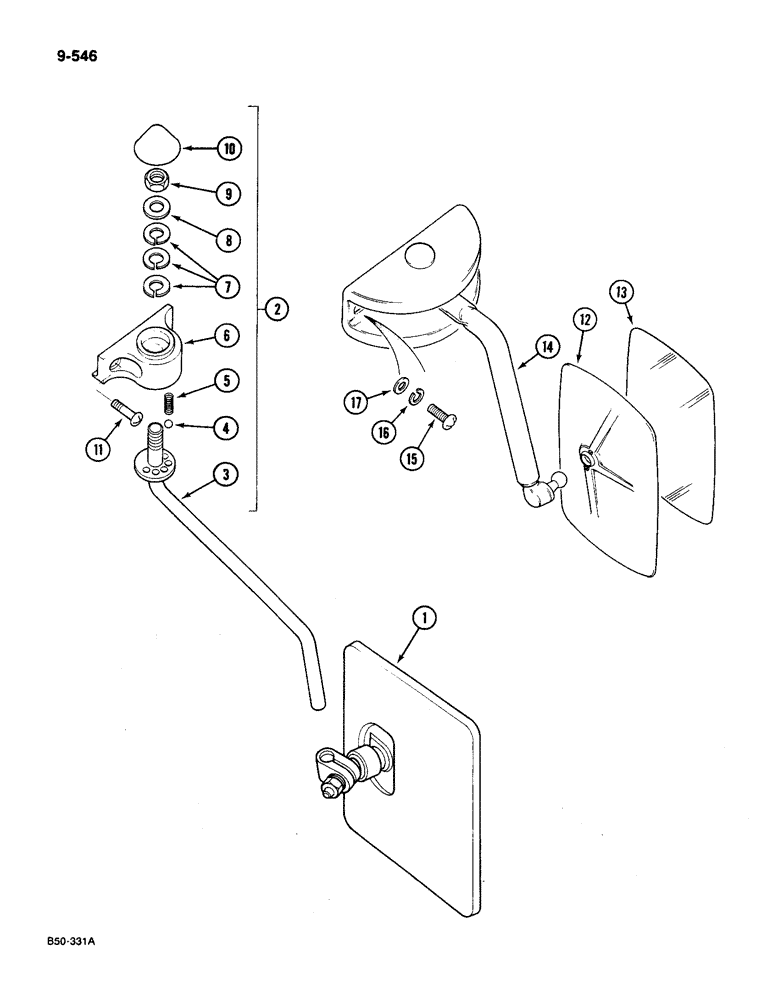

Запчасти Case IH 585 (9-546) - WING MIRRORS, CAB (09) - CHASSIS/ATTACHMENTS

1

3399576R91

MIRROR ASSY.

MIRROR standard

2шт.

2

3399580R91

SUPPORT

mirror assembly, Includes: Ref. 3-10

2шт.

3

3399571R1

ROD

HOLDER mirror, complete

1шт.

4

3057501R1

BALL

6 mm

1шт.

5

3399562R1

SPRING

compression

1шт.

6

3399573R1

SUPPORT

HOLDER mirror

1шт.

7

934223R1

BELLEVILLE WASHER,M12 Bolt Size x 25mm OD x 1.5mm Thk

Lock M12.2 ID x 25 OD x 1.5 Thk

3шт.

8

933963R1

WASHER,M13 ID x 24 OD x 2.5 Thk

M12

1шт.

9

3079424R1

THIN NUT,M12 x 20, Thin

1шт.

10

3399567R1

CAP

1шт.

11

3234909R1

SCREW,Hex Flat Hd, M8 x 20, 4.8

flat hd, M8 x 2

4шт.

1970869C1

MIRROR

complete assembly, left (Optional to 3399576R91), Includes: Ref. 12-14

1шт.

1970870C1

MIRROR

complete assembly, right (Optional to 3399576R91), Includes: Ref. 12-14

1шт.

12

1970871C1

MIRROR

HEAD mirror, complete, Includes: Ref. 13

1шт.

13

1970873C1

GLASS,CAB

GLASS mirror

1шт.

14

1970872C1

ARM

mirror, complete

1шт.

15

30301R1

SCREW,Cross Pan Hd, M8 x 20

machine, phillips pan head, M8 x 20

4шт.

16

934309R1

LOCK WASHER,M8

WASHER lock, M8

4шт.

17

934675R1

WASHER,M8 x 16 x 1.6

Flat, ZND M8 x 16 x 1.6

4шт.
