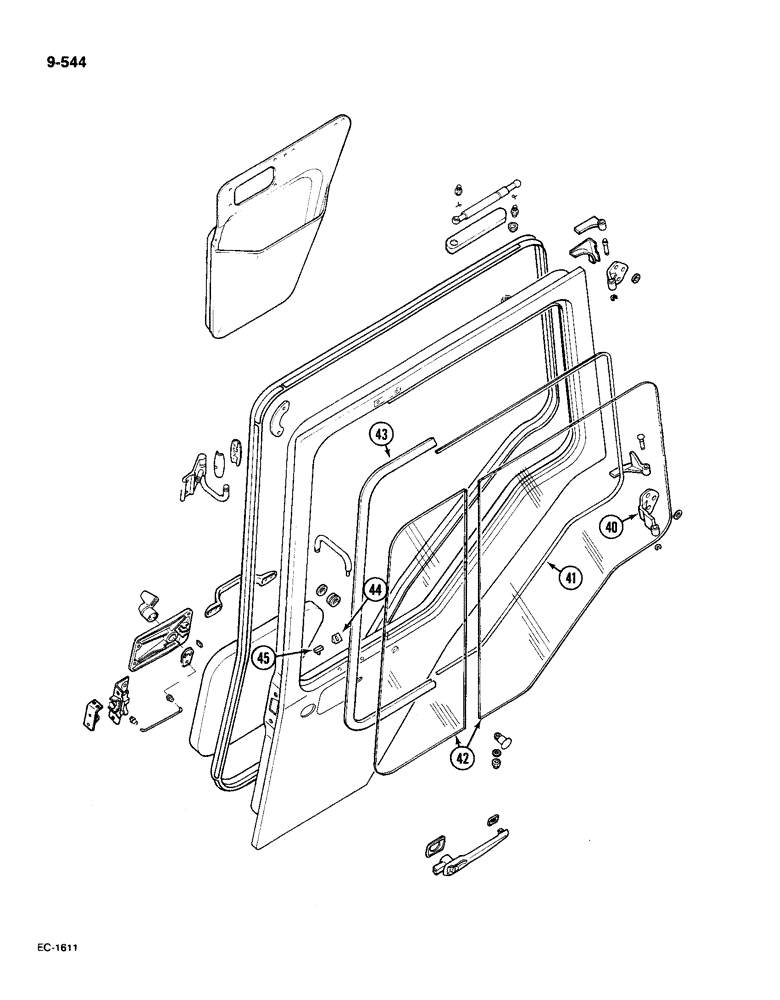

Запчасти Case IH 585 (9-544) - CAB, DOORS, CONTD (09) - CHASSIS/ATTACHMENTS

40

3234074R1

HINGE

leaf, lower left

1шт.

40

3234075R1

HINGE

leaf, lower right

1шт.

931202R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

SCREW retaining

6шт.

934309R1

LOCK WASHER,M8

WASHER lock, M8

6шт.

41

1281938C1

SEAL

STRIP sealing

2шт.

42

3234126R91

GLASS

2шт.

REF 42. TO MAKE HINGE, USE B17576 RTV.

1шт.

43

3234056R1

DOOR SEAL

STRIP sealing, 1345 mm

2шт.

44

3233675R1

SUPPORT

RETAINER window

8шт.

3233380R1

SELF-TAP SCREW,Pan Hd, M3.5 x 9.5

SCREW tapping, phillips round head, 3.5 x 9.5 mm

8шт.

45

3233689R2

PAD, RUBBER

PAD rubber

4шт.

1135282R1

DECAL

eye bolt

2шт.
