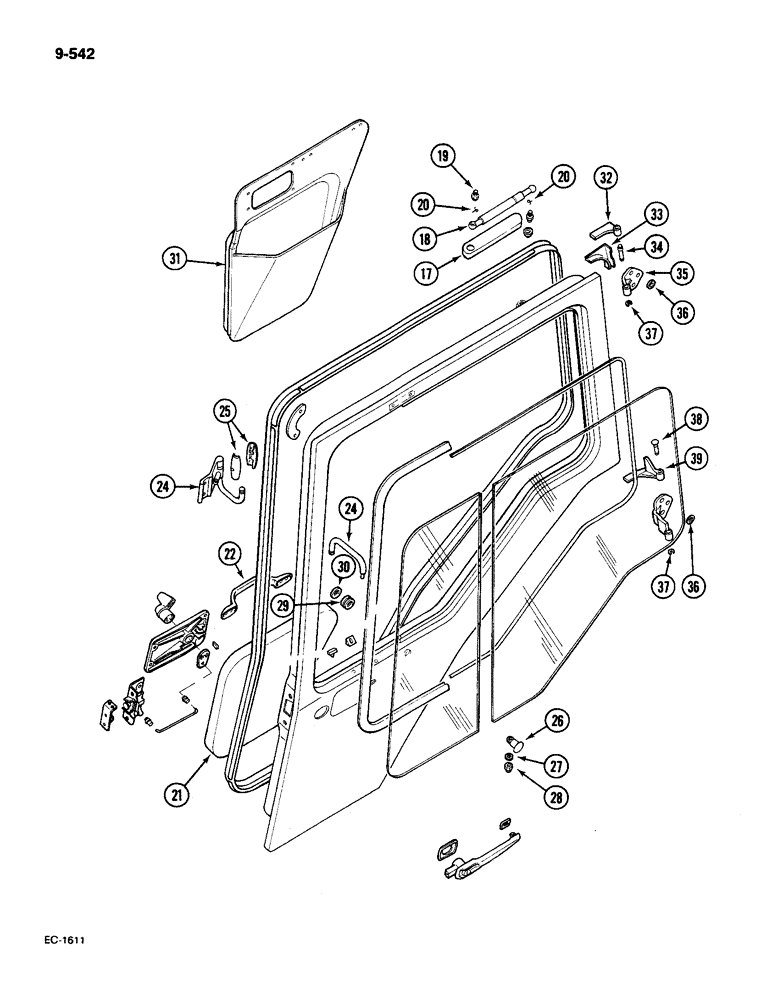

Запчасти Case IH 585 (9-542) - CAB, DOORS, CONTD (09) - CHASSIS/ATTACHMENTS

17

3399427R1

PROTECTOR

left

1шт.

17

3399428R1

PROTECTOR

right

1шт.

18

3232937R1

CYLINDER, GAS

STRUT gas filled

2шт.

19

3234063R1

BALL STUD,M10 x 1.5

STUD ball, 13 mm diameter

2шт.

933965R1

LOCK WASHER,M10

2шт.

20

3233348R1

CLIP

spring

4шт.

21

3234123R2

DOOR COVER

COVER door, left

1шт.

22

3234209R1

HANDLE

2шт.

3233231R1

SELF-TAP SCREW,Pan Hd, M4.2 x 22

SCREW tapping, round head phillips, 4.2 x 22 mm

8шт.

933971R1

WASHER

flat, 4 mm

8шт.

24

3234145R91

HANDLE

STAY window left, Includes: Ref. 25-31

1шт.

24

3234146R91

HANDLE

STAY window right, Includes: Ref. 25-31

1шт.

25

3233687R1

SHELL

HANDLE window stay

2шт.

3233325R1

HEX SOC SCREW,M6 x 20mm, Cl 8.8

BOLT hex socket, M6 x 20 mm

1шт.

3233324R1

NUT,M6 x 1, Cl 8

NUT lock, 6 mm

1шт.

26

3233678R1

SCREW

BOLT special, window stay

1шт.

3233326R1

THIN NUT,Thin, M16 x 1.5, Cl 04

hex, M6

1шт.

27

3232883R1

WASHER

WASHER plain, 8 mm

1шт.

28

3233290R1

NUT

crown, M8

1шт.

29

3233670R1

GROMMET

1шт.

30

3233328R1

WASHER,M17

flat, 17 mm

1шт.

31

3234127R2

POCKET

right door

1шт.

3233287R1

SCREW,Hex Flat Hd, M6 x 16, 4.8

machine flat, M6 x 16 mm

4шт.

3404078R1

PLUG

pin, 6 OD x 13.5 mm

4шт.

32

3234116R1

HINGE

leaf, upper, left

1шт.

32

3234117R1

HINGE

leaf, upper, right

1шт.

33

3399440R1

SUPPORT

upper left

1шт.

33

3399441R1

SUPPORT

upper right

1шт.

34

3234076R1

PIN,8mm OD x 47mm L

upper hinge

2шт.

35

3234093R1

HINGE

leaf, upper left

1шт.

35

3234094R1

HINGE

leaf, upper right

1шт.

931202R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

SCREW retaining

6шт.

934309R1

LOCK WASHER,M8

WASHER lock, M8

6шт.

36

934673R1

WASHER,M8.4 x 25 x 2

plain, M8

14шт.

37

933376R1

CIRCLIP,M8

RING retaining

4шт.

38

3234078R1

PIN

lower hinge

2шт.

39

3234112R1

HINGE

lower left

1шт.

39

3234113R1

HINGE

lower right

1шт.
