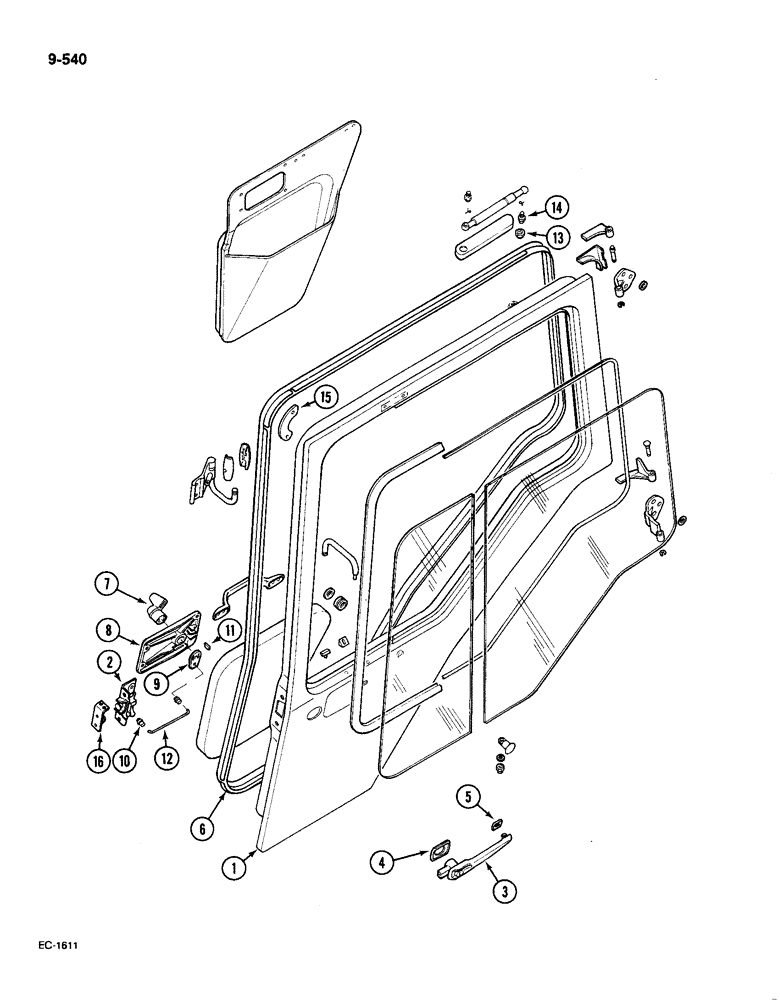

Запчасти Case IH 585 (9-540) - CAB, DOORS (09) - CHASSIS/ATTACHMENTS

1330714C91

DOOR ASSY.

DOOR left, complete, Includes: Ref. 1-15

1шт.

1330729C91

DOOR ASSY.

DOOR right, complete, Includes: Ref. 1-15

1шт.

1

3234023R91

DOOR SEAL

DOOR left

1шт.

1

3234024R91

DOOR ASSY.

DOOR right

1шт.

2

3234131R1

LOCK

left

1шт.

2

3234132R1

LOCK

right

1шт.

905152R1

SCREW,M6 x 4.80mm

machine, flat head, M6 x 12 mm

2шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

machine, pan head, M6 x 12 mm

1шт.

3

3405050R91

HANDLE

outer

1шт.

3405054R1

KEY

lock, LH door

1шт.

3

3232990R1

HANDLE

outer, right

1шт.

931584R1

HEX SOC SCREW,M6 x 12mm, Cl 8.8

SCREW hex socket, M6 x 12 mm

1шт.

4

3233611R1

DUST CAP

PLATE outer handle

1шт.

5

3233622R1

PLASTIC PLATE

PLATE outer handle

1шт.

6

1332310C1

DOOR SEAL,4345mm L

SEAL left

1шт.

98036C91

LEVER

HANDLE inner, left, Includes: Ref. 7-11

1шт.

98037C91

LEVER

HANDLE inner, right, Includes: Ref. 7-11

1шт.

7

3234326R1

HANDLE

inner

1шт.

8

3234133R2

BASE

PLATE handle base

1шт.

9

3234128R1

LEVER

ARM

1шт.

20775R1

SELF-TAP SCREW,Slotted Pan Hd, M4.2 x 13

SCREW

1шт.

10

3234129R1

CLIP

2шт.

11

3401144R1

STOP

1шт.

12

3234130R1

ROD

operating

1шт.

3229743R1

SCREW,Cross Pan Hd, M6 x 16

filister head, cross recess, M6 x 16 mm

4шт.

13

3221520R1

CAP

PLUG, 10 mm

1шт.

14

3234063R1

BALL STUD,M10 x 1.5

STUD ball, 13 mm diameter

1шт.

933965R1

LOCK WASHER,M10

1шт.

100016

NUT,M10 x 1.5, Cl 8

1шт.

15

3405838R1

LARGE PLATE

PLATE cover

1шт.

3404078R1

PLUG

pin, 6 OD x 13.5 mm

2шт.

16

3234105R1

CATCH

left

1шт.

16

3234106R1

CATCH

right

1шт.

931860R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 8.8

hex socket, M8 x 20 mm

4шт.

934673R1

WASHER,M8.4 x 25 x 2

plain, M8

12шт.

A181538

EMBLEM CASE/IH

EMBLEM CASE I/H, for inside the door (1 1/4 x 3")

1шт.
