Запчасти Case IH 585 (9-538) - REAR WINDSCREEN WASH AND WIPE FIELD SERVICE KIT (09) - CHASSIS/ATTACHMENTS

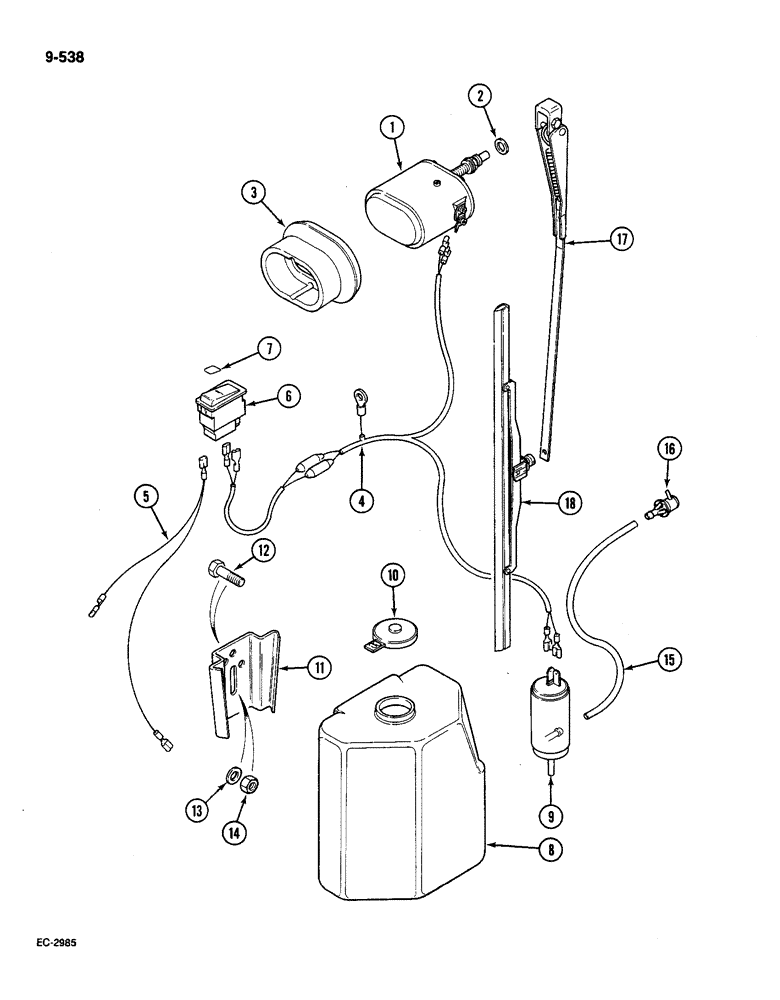

Схема запчастей Case IH 585 - (9-538) - REAR WINDSCREEN WASH AND WIPE FIELD SERVICE KIT (09) - CHASSIS/ATTACHMENTS
18
11
6
7
10
16
12
9
14
2
5
1
13
8
4
17
3
15

Артикул

Название

Примечание

Количество

1328455C1

PACKAGE

KIT field service, rear windscreen wash and wipe, Includes: Ref. 1-18

1шт.

1

1328456C1

WIPER MOTOR

MOTOR wiper, rear windscreen

1шт.

2

934674R1

WASHER,M10.5 x 30 x 2.5

flat, 10.5 x 30 x 2.5 mm

1шт.

3

1328461C1

BOOT

PROTECTOR rubber, wiper motor

1шт.

4

1328459C1

HARNESS

rear wiper

1шт.

5

1328460C1

HARNESS

rear wiper

1шт.

6

245911C1

TOGGLE SWITCH

SWITCH rocker

1шт.

7

1328477C1

LENS

DECAL symbol, rear windscreen wipe/wash, green

1шт.

3227222R91

RESERVOIR

windscreen wash liquid, Includes: Ref. 8-11

1шт.

8

3227041R1

RESERVOIR

1шт.

9

3227223R1

PUMP

12 volt

1шт.

10

3227043R1

PLUG

CAP reservoir

1шт.

11

3227039R1

SUPPORT

BRACKET support

1шт.

12

934872R1

BOLT,Hex, M5 x 0.8 x 16mm, Cl 8.8, Full Thd

hex, M5 x 16 mm, class 8.8

2шт.

13

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

flat, 5 mm

2шт.

14

905425R1

NUT

hex jam, M5, class 8

2шт.

15

1328462C1

HOSE,4 mm ID x 1700.00 mm

4.00 mm ID x 1700.00 mm, Windscreen Washer

1шт.

16

1328463C1

NOZZLE CAP

JET windscreen wash

1шт.

17

3058769R91

WIPER ARM

ARM windscreen wiper

1шт.

18

3058768R92

WIPER BLADE,400mm L

BLADE windscreen wiper

1шт.

Выбрано товаров: 20
