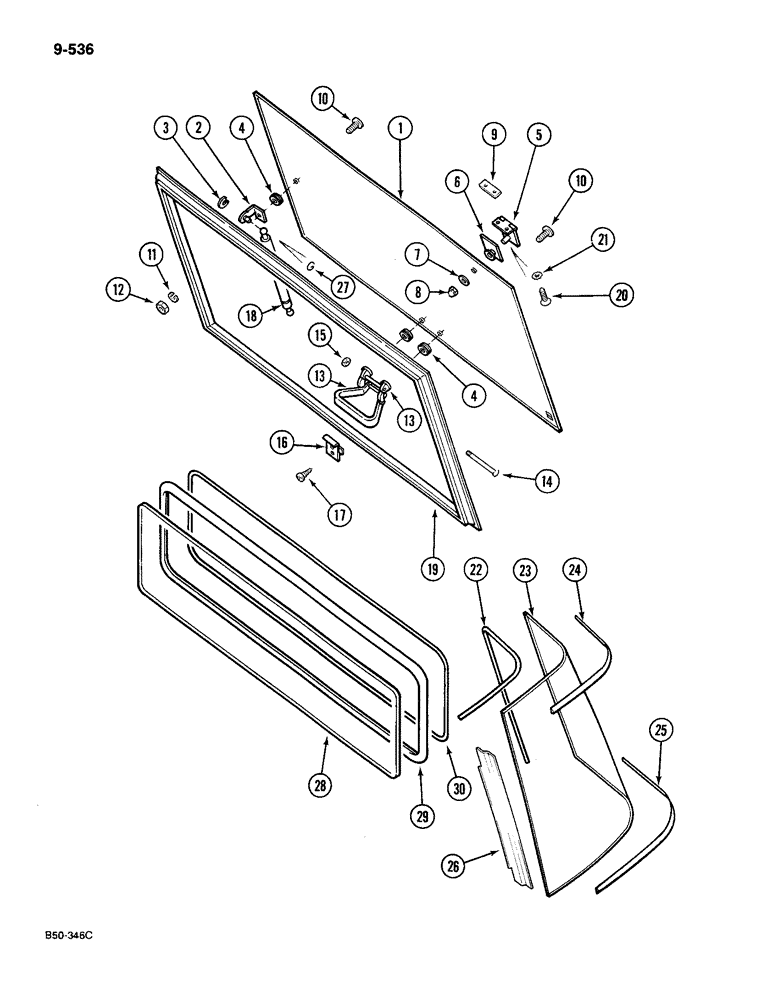

Запчасти Case IH 585 (9-536) - CAB REAR WINDOWS (09) - CHASSIS/ATTACHMENTS

1330708C97

CAB

complete with air conditioning and trim, Includes: Ref. 1-27 and P/N 3234162R92

1шт.

3234162R92

GLASS

WINDOW assembly, rear upper, Includes: Ref. 1-13

1шт.

1

3233046R3

GLASS

rear upper window

1шт.

2

3233683R1

HOLDER

BRACKET gas strut

1шт.

3

3233695R1

PROTECTOR

operator

1шт.

4

3234066R1

GROMMET

rear upper window

3шт.

5

3234067R2

HINGE

rear upper window

2шт.

6

3234167R1

GROMMET

REAR UPPER WINDOW HINGE

2шт.

7

3233292R1

WASHER,M8.4 x 25 x 2

flat, 8 mm

2шт.

8

3221592R1

CAP

NUT crown

2шт.

9

3233679R1

PLATE

GASKET gas spring anchor bracket

2шт.

10

30301R1

SCREW,Cross Pan Hd, M8 x 20

machine, phillips pan head, M8 x 20

3шт.

11

3233415R1

LOCK WASHER,M8

WASHER lock, 8 mm

1шт.

12

3233416R1

THIN NUT,Thin, M8 x 1.25, Cl 04

hex, lock, M8

1шт.

13

3234168R1

HANDLE

window opening, Includes: Ref. 14 and 15

1шт.

14

3233662R2

SCREW

PIN

1шт.

15

934306R1

LOCK NUT,M5 x .8, Thin

NUT, LOCK, M5 x .8, Thin

1шт.

16

3233691R1

COVER

PLATE locking

1шт.

17

3233380R1

SELF-TAP SCREW,Pan Hd, M3.5 x 9.5

SCREW tapping, phillips round head, 3.5 x 9.5 mm

2шт.

18

3234163R1

GAS STRUT,549mm Extended, 329mm Compressed

STRUT gas filled

1шт.

19

3234119R2

SEAL,840mm L

rear upper window

1шт.

20

3233287R1

SCREW,Hex Flat Hd, M6 x 16, 4.8

machine flat, M6 x 16 mm

4шт.

21

3233414R1

WASHER,Csk, M6

WASHER lock, toothed, 6 mm

4шт.

22

3234070R1

SEAL

rear right and left windows, 1040 mm

2шт.

23

3233040R1

CAB GLASS

GLASS rear left window

1шт.

23

3233041R1

CAB GLASS

GLASS rear right window

1шт.

24

3234050R2

SEAL, GLASS

SEAL rear side window

1шт.

25

3234051R2

SEAL, GLASS

SEAL bottom, rear side window

1шт.

26

3405554R1

SILL

STILL window

2шт.

27

3404206R1

BALL STUD

2шт.

28

98041C1

GLASS

WINDOW lower rear

1шт.

29

1500759C1

SEAL

lower rear window

1шт.

30

1500760C1

FILLING STRIP

STRIP filler

1шт.
