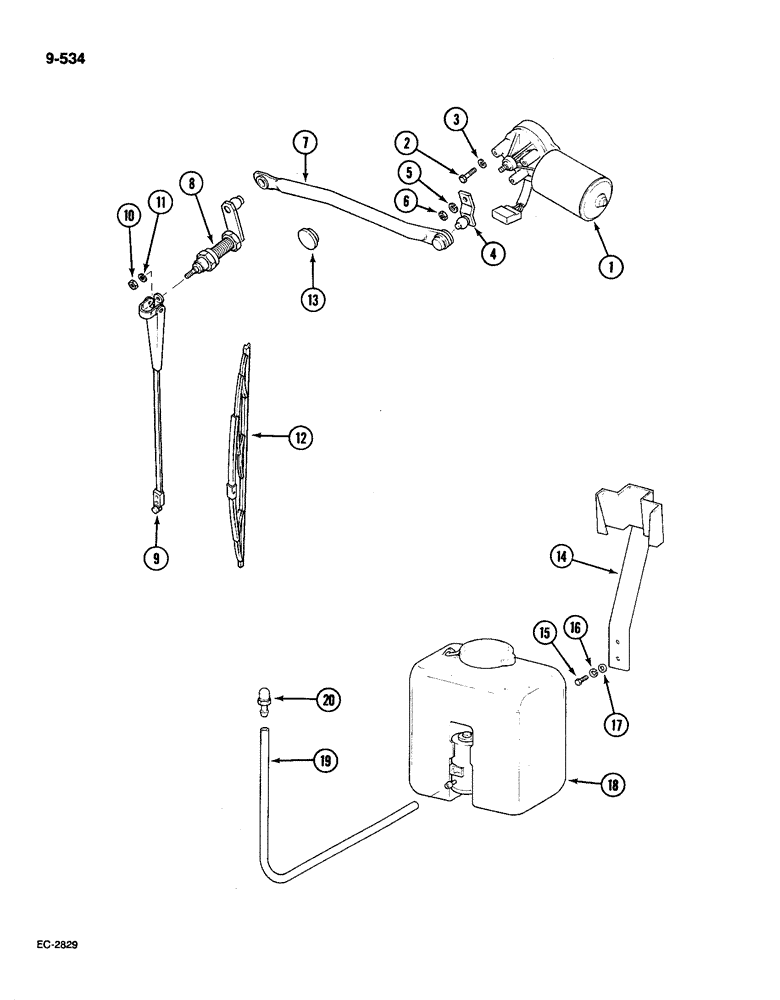

Запчасти Case IH 585 (9-534) - CAB, FRONT WINDSCREEN WASHER AND WIPER (09) - CHASSIS/ATTACHMENTS

1

3401302R93

WIPER MOTOR

MOTOR windscreen wiper

1шт.

2

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

3шт.

3

933833R1

LOCK WASHER,M6

WASHER lock, M6

3шт.

4

3234718R1

LEVER

wiper actuating

1шт.

5

933833R1

LOCK WASHER,M6

WASHER lock, M6

1шт.

6

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

M6, zinc plated, class 8

1шт.

7

3234391R1

LEVER

ARM wiper actuating

1шт.

8

3234394R1

PIVOT

wiper actuating

1шт.

9

3234745R1

WIPER ARM

ARM wiper

1шт.

10

934310R1

NUT,M8, Cl 8

hex, M8, class 8

1шт.

11

934676R1

LOCK WASHER,M8

WASHER lock, 8mm

1шт.

12

3234746R91

WIPER BLADE

BLADE wiper

1шт.

13

3234750R1

PLUG

1шт.

14

3129895R1

SUPPORT

BRACKET washer bottle

1шт.

15

930242R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

- hex, M6 x 12 mm, class 8.8

2шт.

16

933833R1

LOCK WASHER,M6

WASHER lock, M6

2шт.

17

933346R1

WASHER,M6 x 12 x 1.6

flat, 6.4 x 12.5 x 1.6 mm

2шт.

18

3129898R1

CONTAINER

windscreen wash

1шт.

19

NSS

NOT SOLD SEPARAT

TUBE windscreen wash (Cut from 3129901R1)

1шт.

3129901R1

HOSE,4 mm ID, 6.5 mm OD

TUBE bulk length (100 metre)

1шт.

20

3129899R91

JET

windscreen wash

1шт.
