(9-532) - CAB WINDSCREEN

Запчасти Case IH 585 (9-532) - CAB WINDSCREEN (09) - CHASSIS/ATTACHMENTS

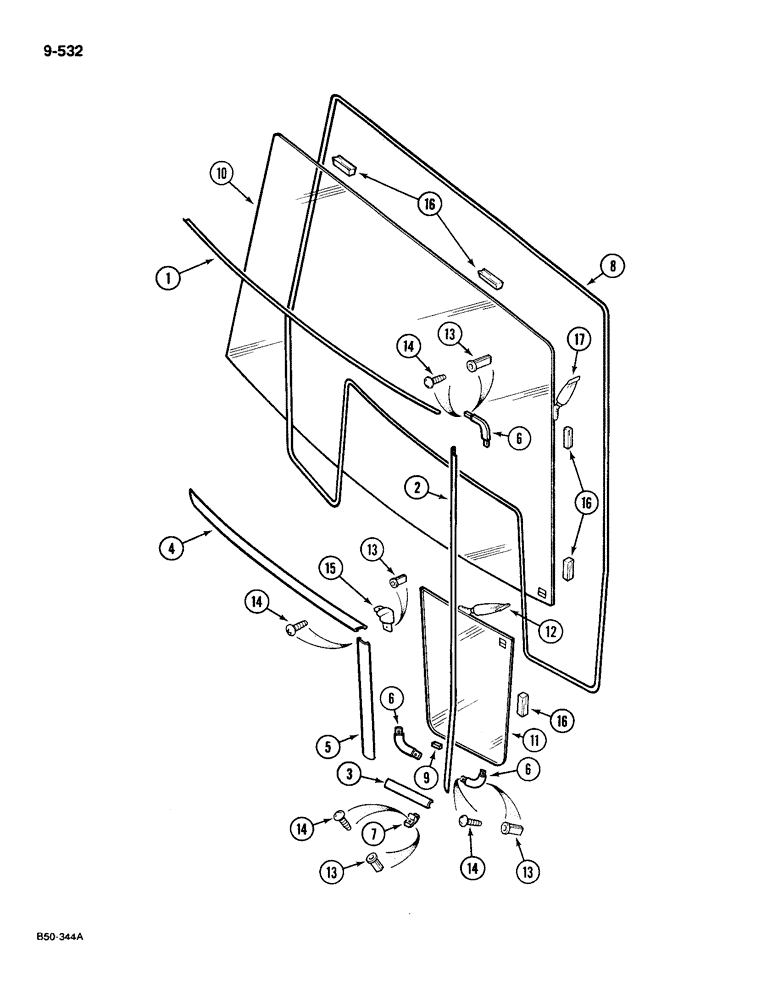

Схема запчастей Case IH 585 - (9-532) - CAB WINDSCREEN (09) - CHASSIS/ATTACHMENTS
6
10
5
16
14
2
14
17
16
9
13
13
8
6
7
14
11
16
6
15
4
13
3
13
14
1
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1330708C97

CAB

complete with air conditioning and trim, Includes: Ref. 1-17

1шт.

1

3234681R1

SEAL

SEAL 945 mm

1шт.

2

3234682R1

SEAL

SEAL 1320 mm

2шт.

3

3234683R1

SEAL

SEAL 140 mm

2шт.

4

3234680R2

SEAL

STRIP sealing

1шт.

5

3234684R2

SEAL

SEAL left, 477 mm

2шт.

6

3234079R91

BRACKET

retaining

6шт.

7

3234080R91

BRACKET

retaining

24шт.

8

3234072R1

SEAL

SEAL 1170 mm

1шт.

9

3233689R2

PAD, RUBBER

PAD rubber

4шт.

3234160R91

GLASS

ASSEMBLY, windscreen, Includes: Ref. 10-12

1шт.

10

3233045R1

GLASS

windscreen

1шт.

11

3233036R1

GLASS

windscreen, lower left

1шт.

11

3233037R1

GLASS

windscreen, lower right

1шт.

12

B17576

GASKET MAKER FLUID

ADHESIVE clear (Replaces 1500876R1)

1шт.

13

3404392R1

NUT

NUT

40шт.

14

3233418R1

SELF-TAP SCREW,Pan HD, M3.9 x 1.3 x 19mm

SCREW tapping, flat head, 3.9 x 19 mm

40шт.

15

3404391R1

BRACKET

retaining

2шт.

16

1328497C1

SEAL ASSY.

SPACER bonded glass (With 3399917R1 replaces 3234072R1)

10шт.

17

3399917R1

GLUE

FLUID adhesive, 300ml cartridge (With 1328497C1 replaces 3234072R1)

1шт.
