Запчасти Case IH 585 (9-530) - CAB FRAME, CONTD (09) - CHASSIS/ATTACHMENTS

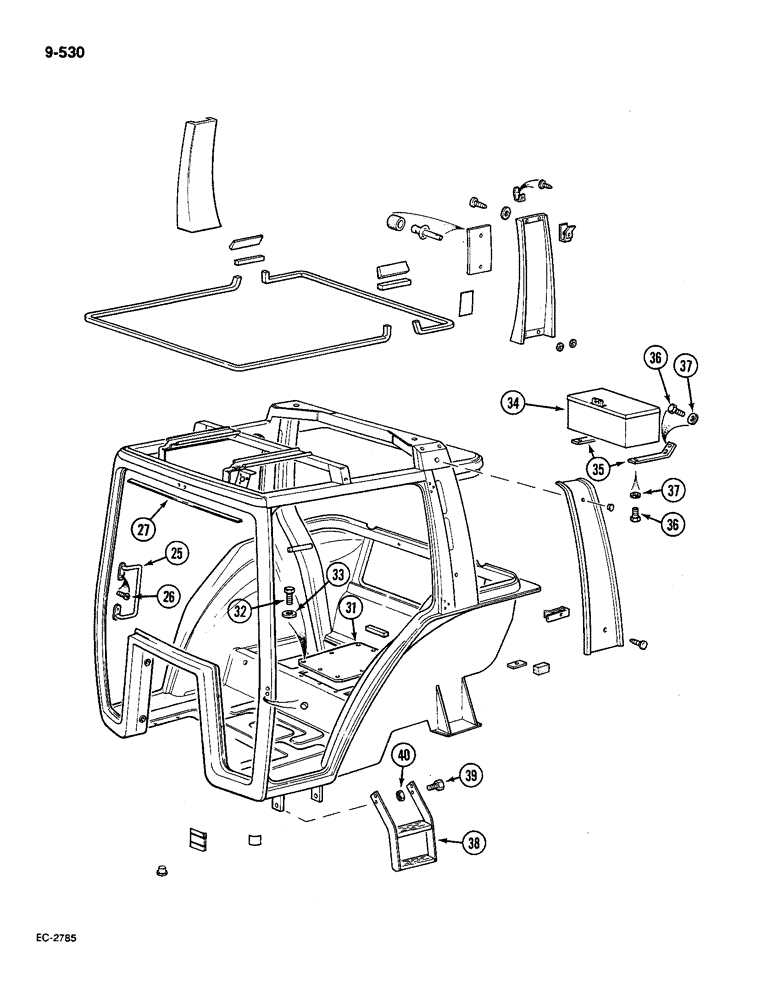

Схема запчастей Case IH 585 - (9-530) - CAB FRAME, CONTD (09) - CHASSIS/ATTACHMENTS
26
39
38
32
36
27
33
31
34
25
37
37
35
36
40

Артикул

Название

Примечание

Количество

31

1500792C1

PLATE

service aperture

1шт.

32

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

33

934675R1

WASHER,M8 x 16 x 1.6

Flat, ZND M8 x 16 x 1.6

4шт.

34

K206516

BOX, TOOL

BOX tool

1шт.

35

88015C1

SUPPORT

BRACKET toolbox mounting

2шт.

36

931416R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

hex. head, M6 x 20 mm, class 8.8

6шт.

37

933346R1

WASHER,M6 x 12 x 1.6

flat, 6.4 x 12.5 x 1.6 mm

6шт.

38

82973C1

STEP

right

1шт.

38

82972C1

STEP

left

1шт.

39

3404199R1

BOLT

BOLT hex head, M10 x 27 mm, class 8.8

8шт.

40

100016

NUT,M10 x 1.5, Cl 8

8шт.

1536044C1

PANEL ASSY.

new, seat deck

1шт.

1536045C1

INSULATOR

INSULATION new, seat deck

1шт.

Выбрано товаров: 13
