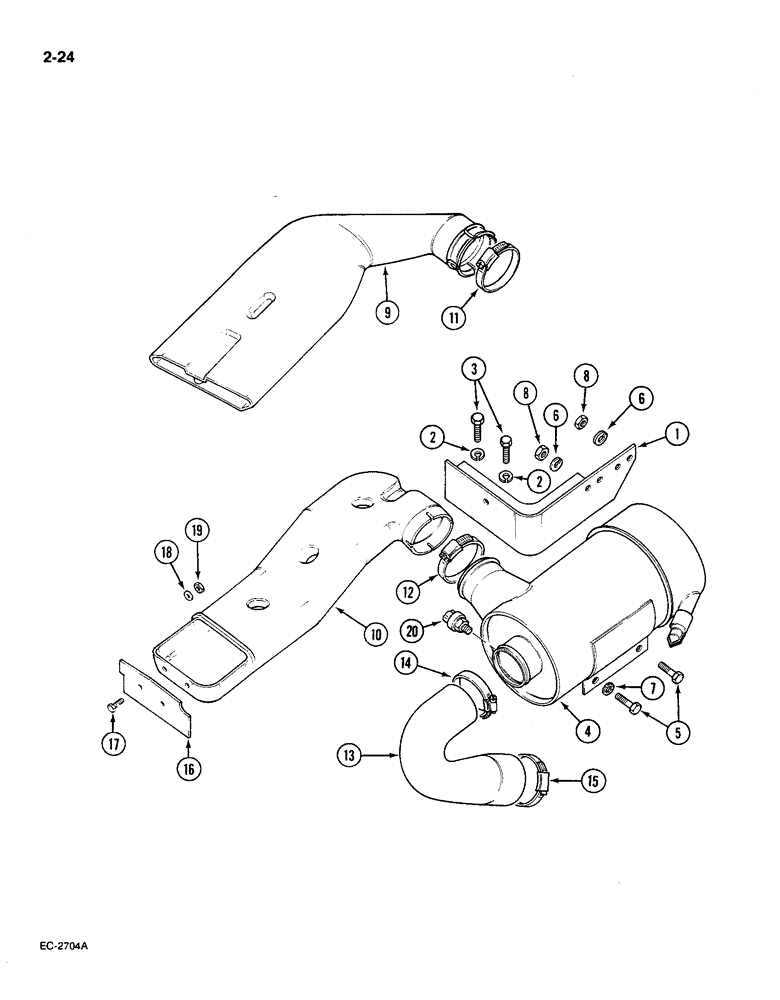

Запчасти Case IH 585 (2-24) - AIR CLEANER AND CONNECTIONS (02) - ENGINE

1

67290C3

SUPPORT

BRACKET air cleaner mounting, replaced 1502064C1

1шт.

1

1333058C1

BRACKET

air cleaner mounting (orchard version)

1шт.

2

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

hex, 3/8 NC x 3/4 inch, grade 5

2шт.

4

3125198R94

AIR CLEANER

CLEANER air, Coopers (see Figure 2-26)

1шт.

4

3125250R92

AIR CLEANER

CLEANER air, Donaldson (see Figure 2-32)

1шт.

4

3125248R94

AIR CLEANER

CLEANER air, Coopers, No. sk-15235 (see Figure 2-28)

1шт.

4

84490C91

AIR CLEANER

CLEANER air, 8 inch, Coopers, No. cd2037 (see Figure 2-30)

1шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

hex, 3/8 NC x 3/4 inch, grade 5

2шт.

6

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER lock, external tooth, 3/8 inch

1шт.

8

120377

NUT,3/8" - 16, Gr 5

2шт.

9

529864R1

DUCT

air inlet, tractors without air conditioning

1шт.

10

99657C1

DUCT

air inlet, tractors with air conditioning

1шт.

11

21423R1

CLAMP

hose, 3-5/16 inch, tractors without air conditioning

1шт.

12

985851R91

HOSE CLAMP,#64, 3.56/4.50 Type F Worm

CLAMP hose, 4-1/2 inch, tractors with air conditioning

1шт.

13

3113612R1

INTAKE AIR HOSE,63.50 mm ID, 69.85 mm ID x 228.60 mm

Air Cleaner Outlet, Tractors without air conditioning 63.50 mm ID, 69.85 mm ID x 228.60 mm

1шт.

13

3125121R3

INTAKE AIR HOSE,70.00 mm ID, 88.90 mm ID x 255.00 mm

Air Cleaner Outlet, Tractors with air conditioning 70.00 mm ID, 88.90 mm ID x 255.00 mm

1шт.

14

539994R1

CLAMP

hose, No. 350s , tractors without air conditioning

2шт.

14

894005H1

CLAMP

hose, No. 400S. tractors with air conditioning

1шт.

14

1265536C1

CLAMP

hose, Serial Range: (Optional-894005H1)

1шт.

15

1265535C1

CLAMP

hose, tractors with air conditioning

1шт.

16

99935C1

PLATE

baffle, tractors with air conditioning

1шт.

17

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

hex, 1/4 NC x 1/2 inch, grade 5, tractors with air conditioning

2шт.

18

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch, tractors with air conditioning

2шт.

19

120375

NUT,Hex, 1/4" - 20, Gr 5

Tractors with air conditioning 1/4"-20, G5

2шт.

20

3224405R91

RESTRICTION SWITCH

SWITCH air cleaner restriction indicator

1шт.

1536155C1

WASHER

KEY WASHER COVER

1шт.
