Запчасти Case IH 585 (9-528) - CAB FRAME (09) - CHASSIS/ATTACHMENTS

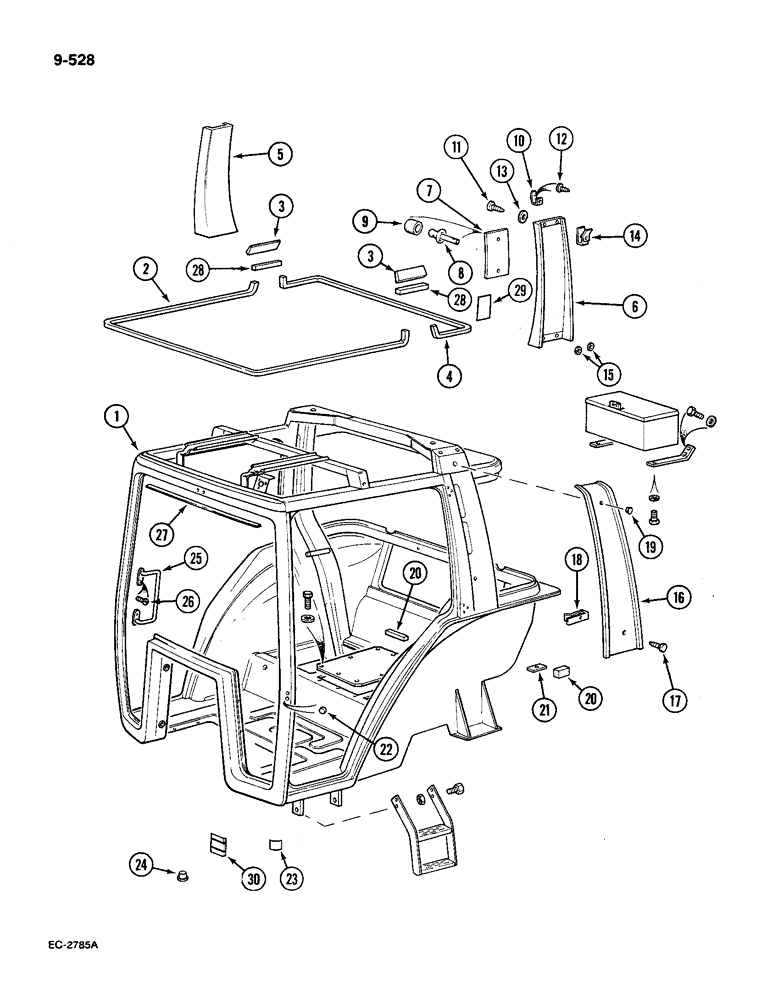

Схема запчастей Case IH 585 - (9-528) - CAB FRAME (09) - CHASSIS/ATTACHMENTS
23
14
7
20
18
30
10
28
19
4
6
1
21
3
29
8
20
28
26
13
12
24
17
11
3
9
25
15
16
22
5
27
2

Артикул

Название

Примечание

Количество

1330708C97

CAB

complete with air conditioning and trim, Includes: Ref. 1-29

1шт.

1535159C4

CAB

new, complete, replaced 1330708C97

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME cab

1шт.

2

1280449C1

SEALING STRIP

foam, 2990 mm

1шт.

3

1280457C1

SEAL

wedge, foam, 170 mm

2шт.

4

1280450C1

SEALING STRIP

foam, 1730 mm

1шт.

5

1332217C1

LINING

COVER insulator, right, beige trim

1шт.

5

1332677C1

INSULATOR

COVER insulator, right, grey trim

1шт.

6

1330784C3

INSULATOR

COVER insulator, left, biege trim

1шт.

6

1332679C1

INSULATOR

COVER insulator, left, grey trim, Includes: Ref. 7-9

1шт.

7

1330748C2

LARGE PLATE

DECAL warning

1шт.

8

1332221C1

RIVET

split, blind

2шт.

9

1332222C1

DOOR COVER

CAP rivet

2шт.

10

3234176R1

COAT HOOK

HOOK coat

2шт.

11

3233230R1

SELF-TAP SCREW,Oval Hd, M4.2 x 22

SCREW tapping, oval cross recess, 4.2 x 22 mm

6шт.

12

3233231R1

SELF-TAP SCREW,Pan Hd, M4.2 x 22

SCREW tapping, round head phillips, 4.2 x 22 mm

2шт.

13

3234052R1

WASHER

cup

6шт.

14

3234042R1

SPRING NUT

lock spring

8шт.

15

3234234R1

WASHER

4шт.

16

3233551R3

SHROUD

left

1шт.

16

3233552R3

SHROUD

right

1шт.

17

905647R1

SELF-TAP SCREW,Flat Hd, M5.5 x 32

SCREW tapping, flat cross recess, 5.5 x 32 mm

4шт.

18

3404795R1

NUT

NUT spring, 5-6 mm

4шт.

19

3233690R2

PLUG

2шт.

20

1270690C1

SEALING STRIP

filling

5шт.

21

1270706C1

SEALING STRIP

filling

1шт.

22

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

rubber, 21mm

2шт.

23

1280244C2

SEAL

front pillar

2шт.

24

3399850R1

PLUG

10.5 OD x 6 mm

1шт.

24

3399851R1

PLUG

13.5 OD x 8 mm

2шт.

24

84200C1

PLUG

17.1 OD x 8 mm

5шт.

24

84199C1

PLUG

18.8 OD x 10 mm

4шт.

24

3233767R1

PLUG

21.200 x 7.5 mm

11шт.

24

3404078R1

PLUG

pin, 6 OD x 13.5mm

8шт.

25

3234179R1

HANDLE

2шт.

26

3233287R1

SCREW,Hex Flat Hd, M6 x 16, 4.8

machine flat, M6 x 16 mm

8шт.

27

1280235C1

GASKET

foam

1шт.

28

1259764C1

BACK-UP RING

STRIP filling

2шт.

29

321-6771

DECAL

warning instructions

1шт.

30

99617C1

DECAL

'A' post stripe, left

1шт.

30

99618C1

DECAL

'A' post stripe, right

1шт.

3405561R1

INTERIOR LIGHT

LAMP interior

1шт.

710196R1

BULB,C5W, 12V, 5W

1шт.

Выбрано товаров: 43
