Запчасти Case IH 585 (9-526) - CAB ISOMOUNTS, FRONT AND REAR (09) - CHASSIS/ATTACHMENTS

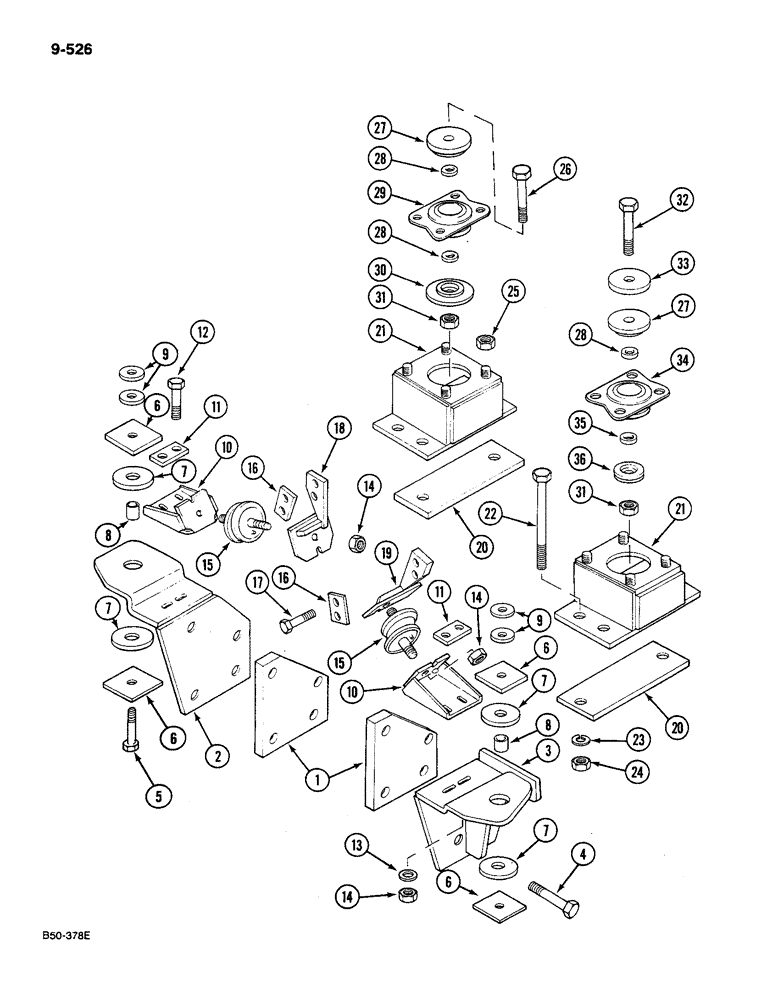

Схема запчастей Case IH 585 - (9-526) - CAB ISOMOUNTS, FRONT AND REAR (09) - CHASSIS/ATTACHMENTS
7
28
21
31
14
11
33
27
30
3
14
6
7
19
14
34
11
2
10
6
18
28
16
32
28
35
27
15
5
31
7
23
22
9
10
6
15
21
8
7
26
16
4
36
20
29
17
6
24
8
1
9
13
12
25
20

Артикул

Название

Примечание

Количество

1

3129865R2

SPACER

front mounting

2шт.

2

3129860R2

BRACKET

front isomount, right

1шт.

3

3129859R3

SUPPORT

BRACKET front isomount, left

1шт.

4

20094R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

hex, 3/4 NC x 2-1/2 inch

8шт.

5

30051R1

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

hex, M12 x 75 mm

2шт.

6

3404705R1

PLATE,13mm ID x 65mm OD x 8mm Thk

, Serial Range: -25100

4шт.

7

3404704R1

RUBBER WASHER

rubber, Serial Range: -25100

4шт.

7

3399962R1

WASHER

BUFFER rubber, Start Serial: 25100

4шт.

8

3399956R3

SPACER

front isomount

2шт.

9

3399953R3

WASHER

spacer

1шт.

10

3399416R2

SUPPORT

front isomount

2шт.

11

3399415R2

PLATE

retaining

2шт.

12

930589R1

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

hex, M12 x 45

4шт.

13

30328R1

WASHER,M13.5 x 24.5 x 3, HT

hardened M12

4шт.

14

905210R1

NUT,M12 x 1.75, Cl 8

NUT hex lock, M12

8шт.

15

3399959R1

RUBBER MOUNTING

DAMPER isomount

2шт.

16

3399417R2

PLATE

retaining

2шт.

17

30236R1

BOLT,M14 x 40mm, Cl 8.8

hex, M14 x 40 mm

4шт.

18

3399404R2

BRACKET

front right

1шт.

19

3399403R1

BRACKET

front left

1шт.

20

1500903C3

PLATE

axle mounting

2шт.

21

91863C2

SUPPORT ASSY.

SUPPORT rear isomount

2шт.

22

18551R1

BOLT,Hex, 5/8" - 11 x 8", Gr 5

hex, 5/8 NC x 8 inch

4шт.

23

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

24

102639

NUT,5/8"-11, G5

4шт.

25

100016

NUT,M10 x 1.5, Cl 8

8шт.

26

20487R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, grade 8, Serial Range: 25100-18538

2шт.

27

3116801R1

CUP WASHER

WASHER cone

2шт.

28

304873R2

WASHER centralizing, Serial Range: 25100-18538

4шт.

28

3048473R2

WASHER

centralizing, Serial Range: 18538-25099

2шт.

29

1502231C91

RUBBER MOUNTING

MOUNTING rubber rear 18538, Serial Range: 25100-25099

2шт.

30

3116148

WASHER, Serial Range: 25100-18538

2шт.

31

3100765R1

NUT

hex, 5/8 inch NC

2шт.

32

228000

BOLT,Hex, 5/8" - 11 x 4 3/4", Gr 8

, Serial Range: 18538-25099

2шт.

33

1332899C1

WASHER

rear isomount - rear isomount, Serial Range: 18538-25099

2шт.

34

1332895C1

RUBBER MOUNTING

SUPPORT cab mount rear, Serial Range: 18538-25099

2шт.

35

1332894C1

SPACER

rear isomount, Serial Range: 18538-25099

2шт.

36

1332893C1

DAMPER

SUPPORT rear isomount, Serial Range: 18538-25099

2шт.

Выбрано товаров: 38
