Запчасти Case IH 585 (9-524) - ROLL OVER PROTECTION FRAME, FOUR POST (09) - CHASSIS/ATTACHMENTS

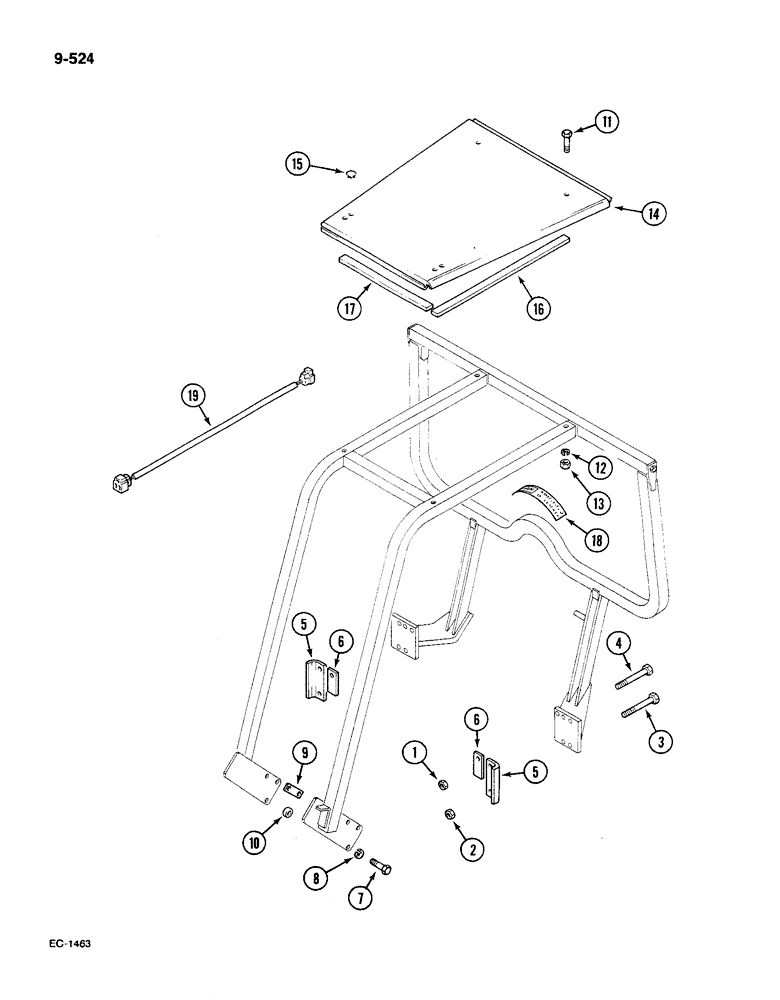

Схема запчастей Case IH 585 - (9-524) - ROLL OVER PROTECTION FRAME, FOUR POST (09) - CHASSIS/ATTACHMENTS
16
13
5
11
18
10
1
5
7
3
8
15
9
19
2
4
6
14
6
12
17

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

FRAME rops, 4 post

1шт.

1

22049R1

NUT,3/4"-10, G8

hex, 3/4 inch NC, grade 8, tractors with bar type rear axle

4шт.

2

21434R1

NUT,5/8"-11, G8

hex, 5/8 inch NC, type 8, tractors with flange type rear axle

8шт.

3

380575R2

SCREW,Hex, 5/8" - 11 x 8.80", Gr 8

BOLT, tractors with flange type rear axle

8шт.

4

23702R1

BOLT,Hex, 3/4" - 10 x 9", Gr 8

hex, 3/4 NC x 9 inch, tractors with bar type rear axle

4шт.

5

66062C1

PLATE

mounting

2шт.

6

66063C1

DECAL

SHIM

4шт.

7

21457R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

hex, 3/4 NC x 2-1/4 inch, type 8

6шт.

8

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

6шт.

9

537308R1

PLATE

spacer

2шт.

10

537309R1

SPACER

2шт.

11

20906R1

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

hex, 5/8 NC x 3-1/4 inch, type 8, tractors without canopy

4шт.

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

hex, 5/8 NC x 3-1/2 inch, type 8, tractors with canopy

4шт.

21759R1

WASHER

plain 0.656 x 2.000 x 0.105 inch, tractors with canopy

4шт.

21793R1

WASHER

flat, 0.656 x 1.250 x 0.164 inch, tractors with canopy

4шт.

12

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

13

21434R1

NUT,5/8"-11, G8

hex, 5/8 inch NC, type 8

4шт.

14

66797C1

TOP

CANOPY

1шт.

15

432487

HOLE PLUG BUTTON,11/16"

PLUG button, 11/16 inch diameter hole

2шт.

16

118225C1

STRIP

canopy

3шт.

17

118226C1

STRIP

canopy

1шт.

18

65982C1

DECAL

caution instructions

1шт.

19

66064C1

HARNESS

combination light extension

1шт.

70571C1

DECAL

ROPS caution instruction, English

1шт.

70572C1

DECAL

ROPS caution instruction, French

1шт.

70773C1

DECAL

seat belt + ROPS caution instruction, English

1шт.

70774C1

DECAL

seat belt + ROPS caution instruction, French

1шт.

Выбрано товаров: 27
