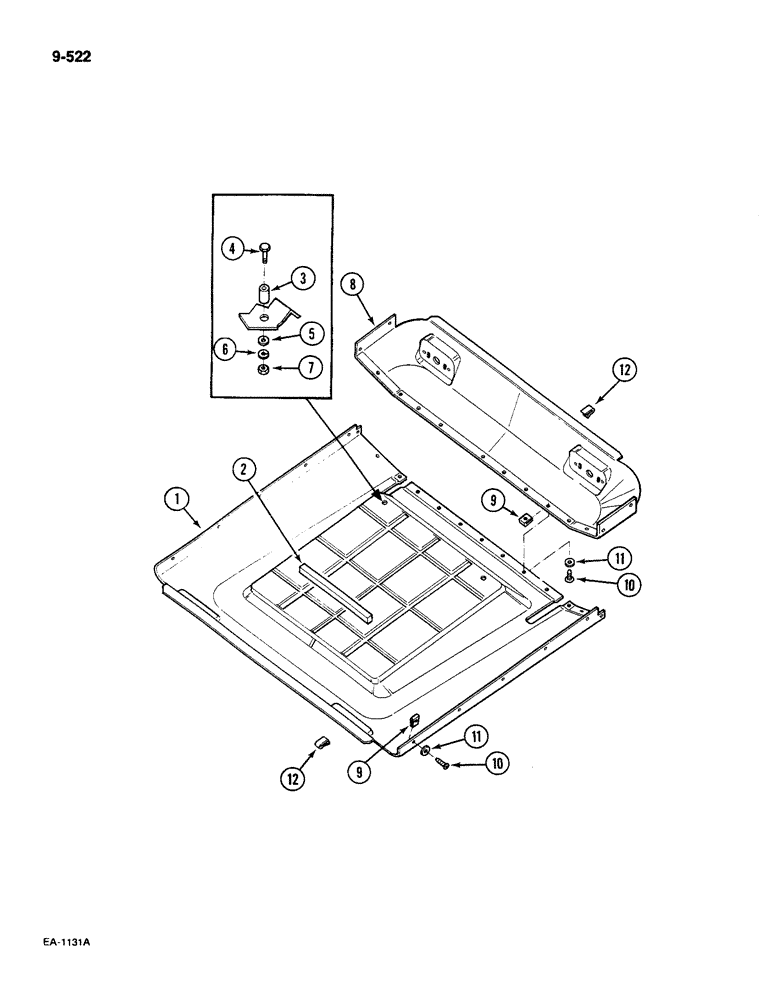

Запчасти Case IH 585 (9-522) - ROPS CANOPY HEADLINER TRIM, TWO POST ROPS FRAME (09) - CHASSIS/ATTACHMENTS

1

118381C1

PANEL

HEADLINER front

1шт.

2

NSS

NOT SOLD SEPARAT

STRIP vibration damper, 15 inch (Cut from 73213C2)

1шт.

2

73213C2

FILLING STRIP

GASKET foam, bulk length, 4 foot

1шт.

3

12302N

SPACER,1/4" Pipe x 15/16"

pipe, 15/16 inch

2шт.

4

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

5

120386

WASHER

flat, 0.312 x 0.734 x 0.051 inch

2шт.

6

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

8

118359C1

PANEL

headliner rear

1шт.

9

684322R1

SPRING NUT

U-type spring

25шт.

10

24396R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW tapping pan cross recess, No. 10 x 3/4 inch

25шт.

11

120391

WASHER,#10

flat, 0.219 x 0.5 x 0.036 inch

25шт.

12

118515C1

CLIP

U-type, speed, canopy with sheared front and rear edges

18шт.
