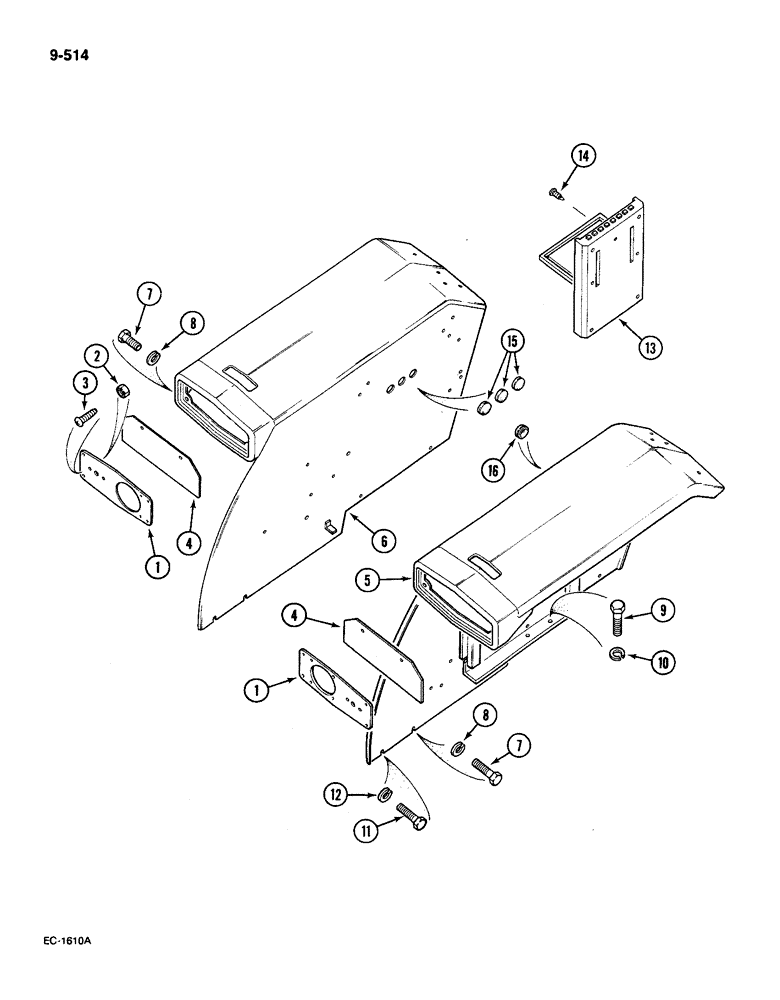

Запчасти Case IH 585 (9-514) - REAR FENDERS, FLAT TOP, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

1536059C1

PANEL

light housing, front (Replaces 3123652R3)

2шт.

2

3123653R1

NUT

captive, No. 6 type AB

8шт.

3

27571R1

SELF-TAP SCREW,Cross Pan Hd, #6 x 1/2"

SCREW pan head tapping, No. 6-20 x 1/2 inch

8шт.

4

3123654R1

SHIELD

light weather

2шт.

5

1536064C1

FENDER ASSY.

FENDER left, hi - flat top (Replaces 3123648R5)

1шт.

5

15366062C1

FENDER left, extra hi-flat top (Replaces 1288060C3)

1шт.

5

1536066C1

FENDER ASSY.

FENDER left, lo-flat top (Replaces 3123640R5)

1шт.

6

1536065C1

FENDER ASSY.

FENDER right, hi-flat top (Replaces 3123649R5)

1шт.

6

1536063C1

FENDER ASSY.

FENDER right, extra hi top (Replaces 1288061C3)

1шт.

6

1536067C1

FENDER ASSY.

FENDER right, lo-flat top (Replaces 3123641R5)

1шт.

7

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

rear top and hitch control covers Hex, 5/16"-18 x 1/2", G5, Full Thd

6шт.

7

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

hex, rear top cover, 5/16 NC x 1-3/4 inch, type 5

2шт.

8

80681

LOCK WASHER,5/16"

WASHER, LOCK, , Rear top and Hitch control covers 5/16"

8шт.

9

181163

SCREW,Hex, 1/2" - 13 x 1 1/4", Gr 5

BOLT hex, axle carrier, 1/2 NC x 1-1/4 inch, type 5

4шт.

10

116121

LOCK WASHER,1/2"

WASHER, LOCK, , Axle carrier 1/2"

4шт.

11

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

hex, parking brake carrier, 3/8 NC x 5/8 inch, type 5

2шт.

11

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5, parking brake carrier

1шт.

12

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Parking brake carrier 3/8"

3шт.

13

A177376

BOX

operators manual

1шт.

14

A162364

FASTENER

panel

3шт.

15

99964C1

PLUG

blanking

6шт.

16

531625R1

GROMMET

2шт.
