Запчасти Case IH 585 (9-512) - SEAT DECK AND PANELS, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

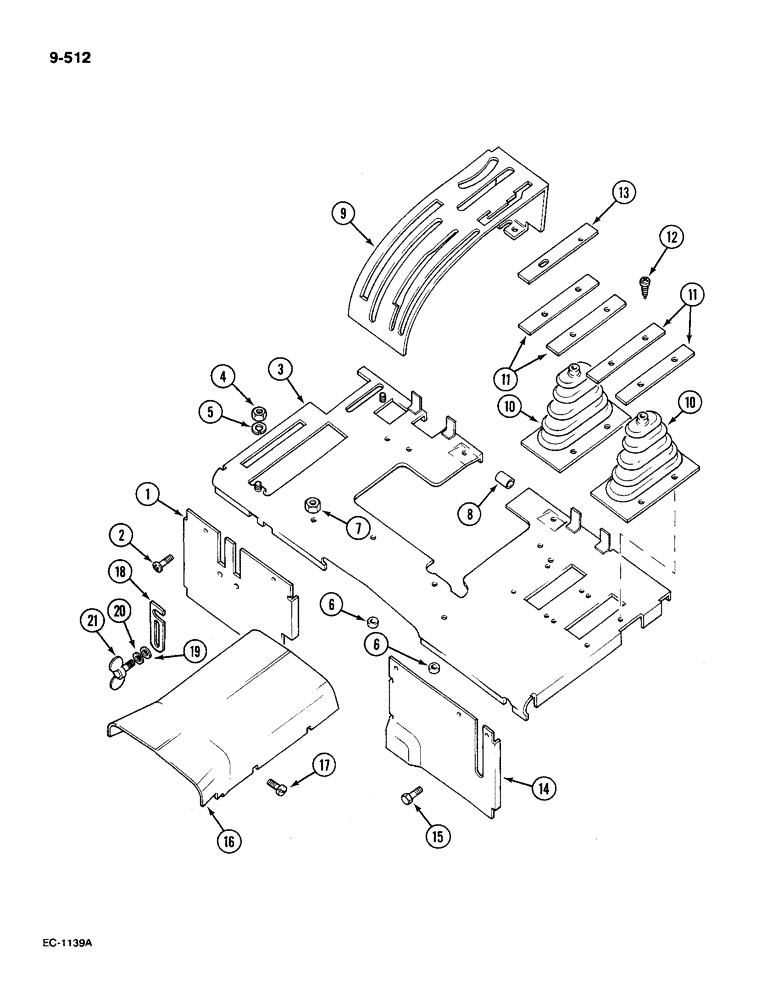

Схема запчастей Case IH 585 - (9-512) - SEAT DECK AND PANELS, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS
14
12
13
7
2
21
4
6
16
10
8
19
1
10
11
9
15
3
18
17
5
6
11
20

Артикул

Название

Примечание

Количество

1

3123711R1

CHANNEL

rear vertical, right, with single auxiliary valve, Serial Range: -18001

1шт.

1

3125857R1

CHANNEL

rear vertical, right, with multiple auxiliary valve, Serial Range: -18001

1шт.

1

94161C1

PROTECTION PLATE

CHANNEL rear vertical, right, Start Serial: 18001

1шт.

1

1333130C1

CHANNEL

rear vertical, right (orchard version)

1шт.

2

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

machine pan slotted, 1/4 NC x 5/8 inch

2шт.

3

3129233R2

COVER ASSY

COVER rear top, Serial Range: -18001

1шт.

3

99656C2

PLATFORM ASSY.

PLATFORM seat, Start Serial: 18001

1шт.

3

1333128C1

PLATE

PLATFORM seat (orchard version)

1шт.

4

120368

NUT,5/16"-24, G5

2шт.

5

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

401941R1

SPACER

mounting, short

2шт.

7

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

8

3125820R1

SLEEVE

PVC

6шт.

9

529457R61

COVER ASSY

COVER hitch control lever, tractors with flange type rear axle, Serial Range: -18001

1шт.

9

3121558R2

COVER ASSY

COVER hitch control lever, four wheel drive tractors, Serial Range: -18001

1шт.

9

1331007C1

HOUSING

COVER hitch control lever, Start Serial: 18001

1шт.

9

1333094C1

HOUSING

COVER hitch control lever (orchard version)

1шт.

10

1502031C1

BOOT

control lever

2шт.

11

1502032C1

STRIP

boot retainer

4шт.

12

27046R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 7/8"

SCREW phillips tapping, No. 8 x 7/8 inch

8шт.

13

1283389C1

STRIP

retaining (R.H. side of R.H. boot) (tractors fitted with ROPS)

1шт.

14

528638R2

PROTECTION PLATE

CHANNEL rear vertical, left

1шт.

14

1333087C1

CHANNEL

rear vertical, left (orchard version)

1шт.

15

180018

CONNECTING LINK

hex, 1/4 NC x 5/8 inch, grade 5

3шт.

16

66290C1

COVER

clutch housing

1шт.

17

445957

INDICATOR

pan head slotted, 1/4 NC x 3/8 inch

4шт.

18

3125862R1

PLATE

lockout, auxiliary valve lever

2шт.

19

120394

WASHER,3/8", SAE

WASHER flat, 13/32 x 13/16 x 3/64 inch

2шт.

20

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

SCREW adjusting

2шт.

Выбрано товаров: 30
