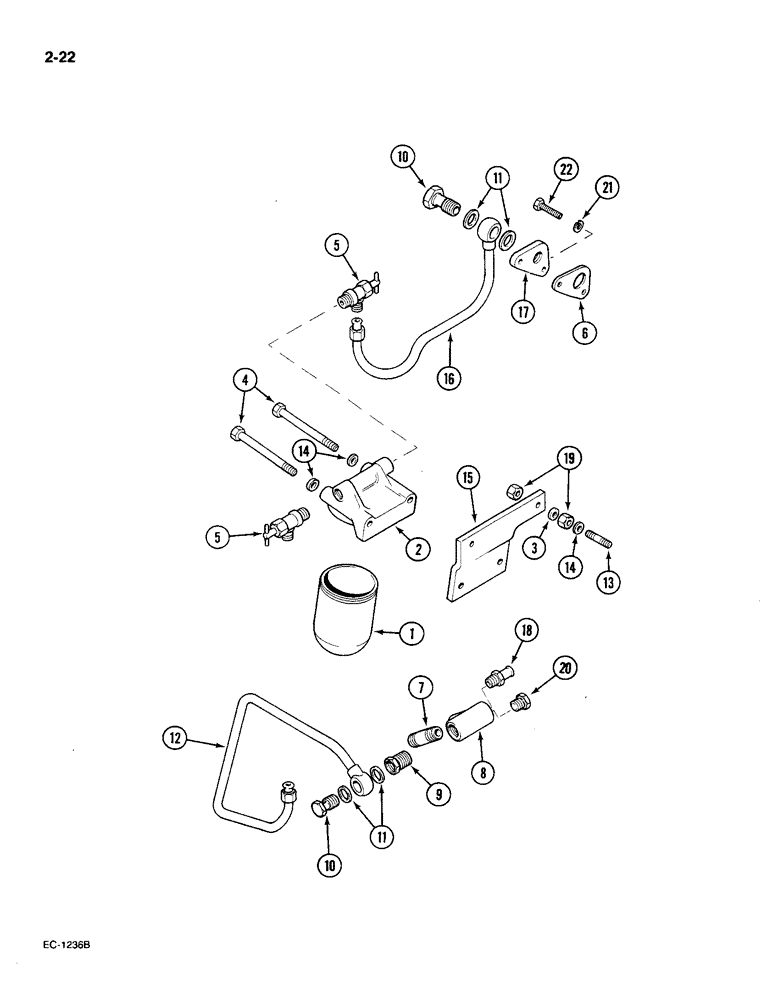

Запчасти Case IH 585 (2-22) - COOLANT FILTER (02) - ENGINE

1

1329039C1

FILTER, ELEMENT

FILTER coolant (Replaced by A151931)

1шт.

1

A151931

FILTER

coolant (Replaces 1329039C1)

1шт.

2

1800029C1

HEAD

coolant filter

1шт.

3

25534R1

WASHER

hardened, 0.406 x 0.812 x 0.065 inch

2шт.

4

186285

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8-16 NC x 4 inch, G5

2шт.

5

690191C1

COCK, DRAIN

VALVE shut off

2шт.

6

3055306R2

GASKET

manifold, water collecting

1шт.

7

191032

PIPE,Nipple, 1/2" NPT x 1 1/2", Brass

ADAPTER pipe long, 1/2 NPT x 1-1/2 inch

1шт.

8

144085

TEE,1/2" NPT, Fem

1/2 inch pipe

1шт.

9

444034

REDUCER,1/2"-14 NPTF x 3/8"-18 Fem NPTF

BUSHING pipe reducer, dryseal taper, 1/2 to 3/8 inch

1шт.

10

930241R1

BANJO BOLT,M16 x 1.5 x 36mm

SCREW hollow, inlet union

2шт.

11

933155R1

SEALING RING,M16 x 20 x 1.5

4шт.

12

1329009C91

PIPE

coolant filter inlet

1шт.

Coolant filter kits can be used on 584 Tractors, except you have to replace these tubes with rubber hoses.

1шт.

13

3228188R1

STUD

exhaust manifold

2шт.

14

20285H

WASHER

plain, 0.406 x 0.75 x 0.105 inch

4шт.

15

1329062C1

SUPPORT

BRACKET coolant filter

1шт.

16

1329064C91

PIPE

coolant filter outlet

1шт.

Coolant filter kits can be used on 584 Tractors, except you have to replace these tubes with rubber hoses.

1шт.

17

3218396R2

FLANGE

PLATE cover

1шт.

18

1502001C1

FITTING

heater hose, brass (with cab)

1шт.

19

103026

NUT,3/8"-24, G5

4шт.

20

444630

PLUG,Hex Hd, 1/2"-14

hex head, 1/2 inch NPTF (without cab)

1шт.

21

103320R1

WASHER

lock, 5/16 inch

2шт.

22

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.
